1 EACH SIDE GREASE
23
17
21
OPTIONAL
WHEEL BEAM
4 @ 3/4 X 7 CAPSCREW G8
4 @ 3/4 STOVER LOCKNUT G"C"
USED ONLY WITH OPTIONAL WHEEL BEAM
4 @ 3/4 X 2 1/2 CAPSCREW G8
4 @ 3/4 STOVER LOCKNUT G"C"
ITEM PART NUMBER
16 05-51099-03
17 05-51010-03
18 05-51010-04
19 31-10907-05
20 61-058-001
21 05-051071-01
22 30-90541-01
23 05-51080-03
24 05-51080-04
25 05-51007-01
SEPT 2008

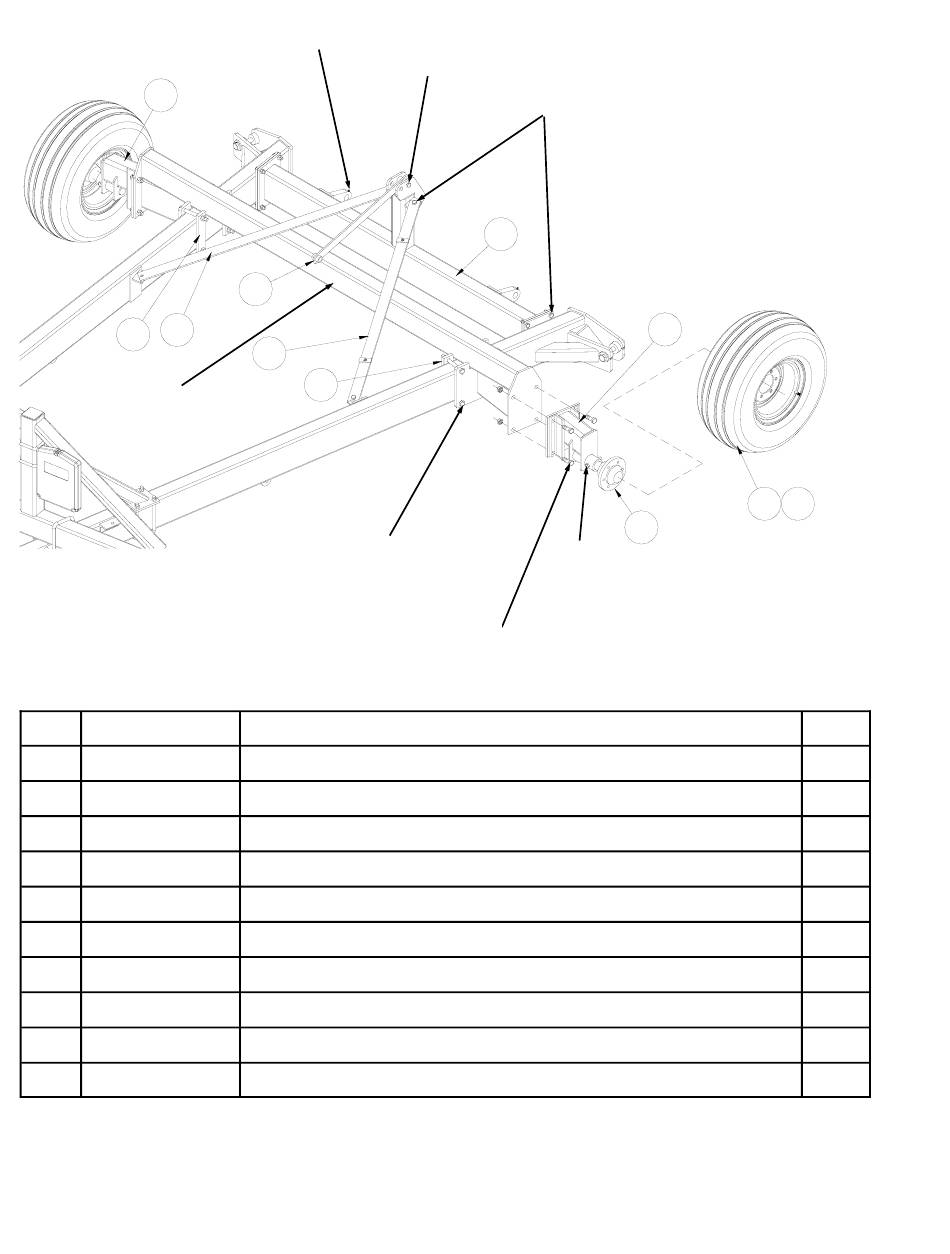

45' Rotary Harrow
25
18
21
REAR BEAM
RIGHT REAR BEAM BRACE
LEFT REAR BEAM BRACE
TIRE, 12.5L - 15.8 PLY
RIM, 15 X 10 X 6-BOLT
MAIN WHEEL PLATE
H-614 HUB AND SPINDLE
MAIN WHEEL (RIGHT)
MAIN WHEEL (LEFT)
TAIL LOCKING BAR
1 @ 1 X 5 CAPSCREW G8
1 @ 1 NYLON INSERT LOCKNUT
12 @ 5/8 X 2 CAPSCREW G8
12 @ 5/8 STOVER LOCKNUT G"C"
16
1 @ 5/8 X 4 CAPSCREW G8
1 @ 5/8 STOVER LOCKNUT G"C"
NOTE: USE LOCK-TITE ON ALL NUTS
DESCRIPTION
10
24
19 20
22
QTY
1
1
1
2
2
4
2
1
1
1
