STEP 14
Attach the pigtail hydraulic hose holder (#5)
to the front of the left mainframe beam using
1 (one) 1/2" x 1 1/2" bolt, flatwasher, lock-
washer and hex nut.
STEP 15
Depending on your tractor hitch, you may
require the clevis attachment for your
harrow. If your tractor has a double tongue,
the single cast hitch is required.
tractor has a single tongue, you will require
the clevis option.
1" x 7 1/2" G8 bolts securing the hitch cast
(#4) to the hitch plate (#3) and safety chain
bar are torqued to 350 ft lbs and the 3/4" x 5"
UNC bolt securing the clevis is torqued to
175 ft lbs.
ATTENTION: Either the tractors hitch or
the harrow MUST have a double clevis
arrangement. During wing folding, there
will temporarily be negative weight on
the hitch.
The single cast hitch is standard.
require the add on lower clevis, order KMC
option part number (61-082-003).
SEPT 2008
45' Rotary Harrow
If your
For your reference the
If you
BOLT
SAFETY
CHAIN BAR

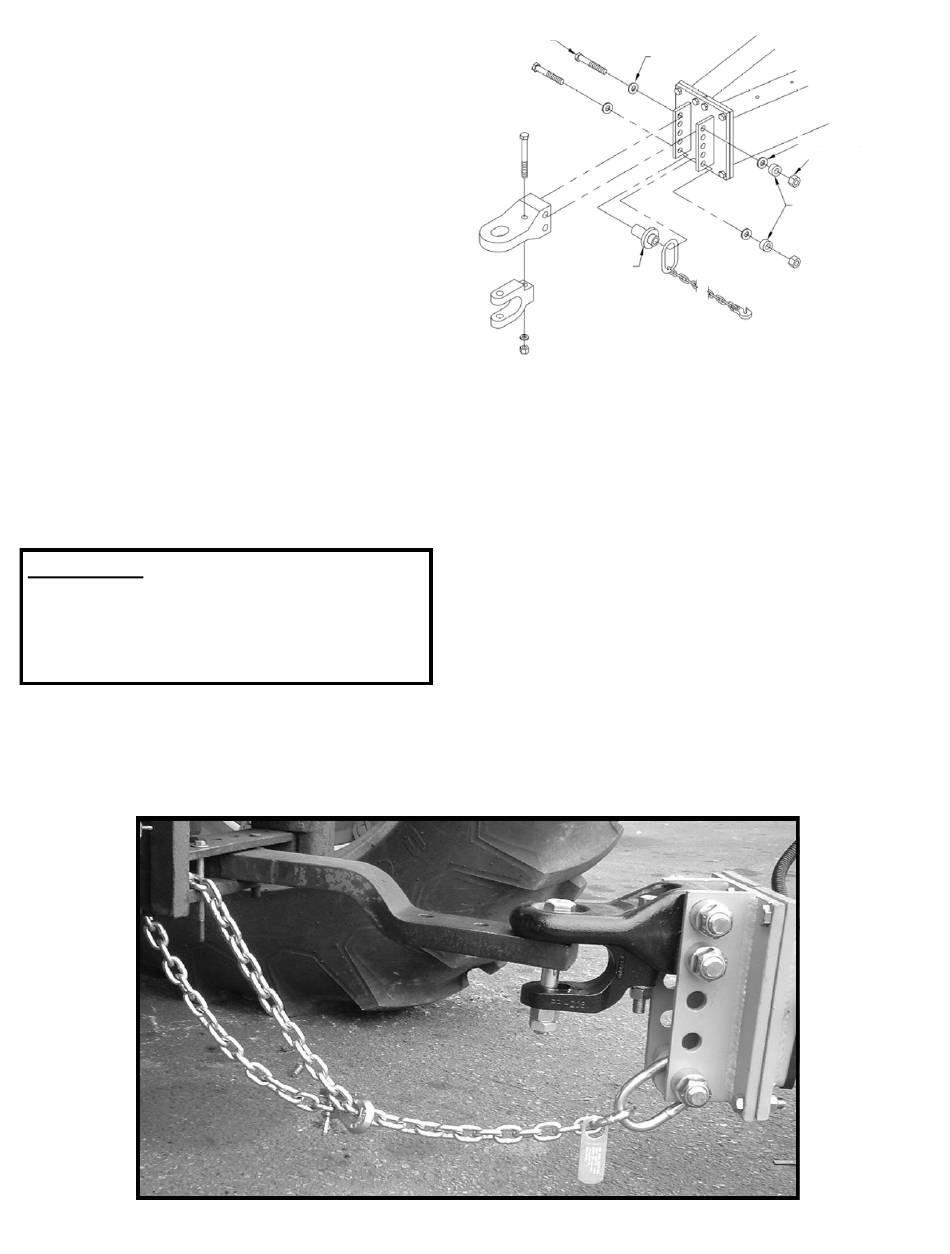

Tow Chain/Hitch Connection
14
FLATWASHER
FLATWASHER
UNITORQUE
NUT
SPACER
