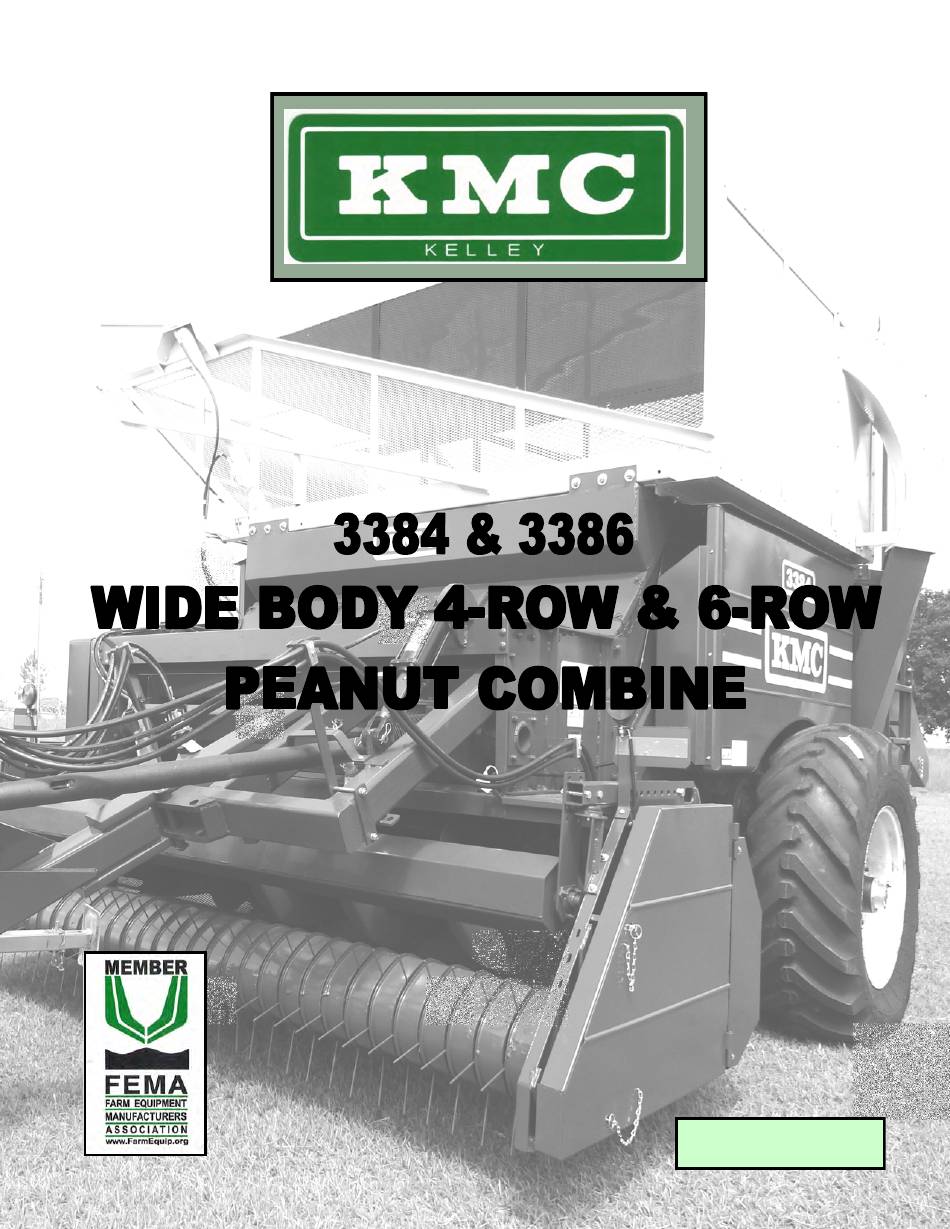

- Page 1 33-SERIES W/ 4X36, 4X40, 6X30, 6X36, & 6X40/8X30 HEADERS OPERATOR’S MANUAL THIS MANUAL TO ACCOMPANY MACHINE PART NO. 33-OM-05 PRINTING DATE: JULY 2015...
- Page 2 3-YEAR PEANUT COMBINE WARRANTY POLICY KELLEY MANUFACTURING COMPANY (KMC) warrants that Peanut Combines sold to the original purchaser shall be free of any defects in material and workman- ship if used under normal operating conditions. The warranty period begins on the date of purchase by the retail customer and ends thirty-six (36) months thereafter.
-
Page 3: Table Of Contents
3384 & 3386 COMBINE OWNERS MANUAL Table of Contents: FORWARD Introduction ···························································································· 3 To the Purchaser ······················································································ 3 Pre-Operational Check List ········································································ 4 SAFETY Symbol Information ·················································································· 5 Safety Decals ··························································································· 6-9 Retail Customers Responsibility under the KMC Warranty ······························· 10 Safety Procedures ·····················································································... - Page 4 Picking Cylinder: Concave Height Adjustment··································································· 27-28 Timing For #5, #6 & #7 Cylinders ···························································· 28 Stripper Adjustment ············································································ 28 Separation System ··············································································· 29 Screen Adjustment: Clod Screen························································································ 30 Welded Screen ···················································································· 30 Axle Height Adjustment: 4-Row & 6(30) Wheel & Tire ································································· 31-32 6-Row &...
-
Page 5: Forward
FORWARD INTRODUCTION: The KMC Peanut Combine is designed to be used for the removal of peanut pods from peanut vines which have been uprooted. It will then separate the peanuts from the vines, placing the pods in a stor- age tank on top of the machine, and return the vines to the ground. The combine must be pulled and powered by a farm tractor. -
Page 6: Pre-Operational Checklist
PRE-OPERATIONAL CHECKLIST: All safety and operating procedures reviewed All hardware checked for tightness Hitch connection to implement information reviewed Field adjustment procedures reviewed Lubrication information reviewed Machine fully lubricated Warranty information reviewed PRE-DELIVERY CHECKOUT 7. Connect hydraulic lines for header rotation. 1. -
Page 7: Safety
SAFETY SYMBOL INFORMATION This safety alert symbol is used throughout this manual to identify safety messages. When you see this symbol, read the message which follows as it will advise you of possible injury. REMEMBER THINK SAFETY! (RED) This symbol indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. -
Page 8: Safety Decals
SAFETY DECALS The Safety decals that follow are associated with the implement covered in this owner’s manual. They should be reviewed and associated with where they are applicable on the implement being covered. TO AVOID DEATH OR SERIOUS INJURY FROM ... - Page 9 33-050-146 TO AVOID SERIOUS INJURY OR DEATH: AVOID BANKS AND DITCHES. REDUCE SPEED ON TURNS, SLOPES, AND ROUGH TERRAIN. AVOID IMPLEMENT CONTACT WITH ELECTRICAL POWER LINES NEVER RAISE TANK UNDER POWERLINES OR ALLOW IMPLEMENT TO COME IN CONTACT WITH ELECTRICAL POWERLINES. ...
- Page 10 OPERATING RANGE 900 TO 1000 PTO R.P.M. KEEP PTO SHIELDS IN PLACE AT ALL TIMES 3 1/4” RECOMMENDED 3” MINIMUM 33-050-258 33-050-374 33-050-263 INSTALL COVER SO THAT AIRFLOW GOES IN THIS CLOSED DIRECTION 33-050-300 GREASE DAILY OPEN 33-050-133 33-050-233 33-050-414...
- Page 11 33-050-427 TIMING FOR CYLINDERS #5, #6, & #7 ROTATION ROTATION ROTATION DETAIL B: SPRINGS RUN SIDE BY 33-050-458 SIDE AT UPPER INTERSECTION. DETAIL A: SPRINGS INTERLOCK AT LOWER INTERSECTION. REAR OF MACHINE NOTE: BARS MARKED WITH * HAVE SPRINGS ON THE SAME SIDE OF THE HUB. DO NOT GO NEAR LEAKS ...
-
Page 12: Retail Customers Responsibility Under The Kmc Warranty
RETAIL CUSTOMERS RESPONSIBILITY UNDER THE KMC WARRANTY: The retail customer’s responsibilities are: 1. To read the Operator’s Manual and operate the KMC Combine in accordance with the instructions given in this manual. 2. To inspect the KMC Combine daily, lubricate as specified and repair or replace parts as needed, especially when continued use would cause damage or exces- sive wear to other parts. - Page 13 5. Do not allow children to operate the KMC Combine . Only experienced tractor operators should operate the tractor when the KMC Combine is in use. 6. Stay clear of hydraulic lines, as they maybe under extreme pressure or heat. 7.
-
Page 15: Assembly Set-Up
ASSEMBLY SET-UP GENERAL: Most of the general set-up and assembly for your KMC Combine has been performed at our factory. Those items not installed at KMC will be reviewed later in this section. There are several things which may need assembling before the peanut combine is ready for operation. The assembly order will depend on how the machine has been disassembled for shipping. - Page 16 WARNING CARE SHOULD BE TAKEN DURING SET-UP AND ASSEMBLY OF THIS PRODUCT. DEATH OR SERIOUS INJURY COULD OCCUR IF PROPER STEPS ARE NOT TAKEN TO FULLY SECURE THE UNIT WHEN WORKING UNDERNEATH IT. FOR YOUR SAFETY, ENSURE THE UNIT IS PROPERLY SUPPORTED BY LOWERING THE JACKSTAND SUPPORTS THAT HAVE COME ASSEMBLED WITH IT, OR PROPERLY SECURE THE UNIT WITH ANY HOISTING DEVICES BEFORE ATTEMPTING ANY FURTHER SET-UP...
-
Page 17: Bolt Torque Chart
! IMPORTANT ! Before set-up and assembly can be completed ensure that all hardware is in place and fully tightened. Refer to the Bolt Torque Chart below for proper torque values. SAE GRADE 5 BOLT TORQUE CHART SAE GRADE 8... -
Page 18: Specifications
SPECIFICATIONS: HITCH: Stationary tractor drawbar types PICKUP REEL: Low profile, 6-bar, Camless, THRESHING SYSTEM: 7 cylinders, 8 stripper bars (individually adjusted), floating concaves under 4 rear cylinders. DRIVELINE: 1000 RPM driveline, safety shielded. HEADER WIDTH: HEADER HEIGHT AND LENGTH: HEADER SIZE “A”... - Page 19 TANK DIMENSIONS: HEIGHT WIDTH LENGTH 3-Ton 4R: 58” 106 7/8” 193 ” 3-Ton 6R: 70 3/8” 106 7/8” 216” 92 5/8” 106 7/8” 223” 3 3/4-TON: 92 5/8 HEIGHT LENGTH TANK CAPACITY: 3-Ton: 324 cubic feet (4R & 6R) (260 bushels) ...
-
Page 20: Attach The Six Row Header
ATTACH THE SIX ROW HEADER: Support front and rear of machine with stands and chock tires to prevent any movement when attaching Use extreme caution when attaching the head to the combine. It is very heavy and should be header. handled in a secure manner at all times to avoid injury. -
Page 21: Mount The Rear Hood To The Combine
MOUNT THE REAR HOOD TO THE COMBINE: BOLT HERE BOLT HERE Figure 2 For some shipping situations, it may be necessary to mount the rear hood. If so, first hang the rear hood onto the mainframe by interlocking the front lip of the hood with the rear lip on the mainframe. Center the hood on the rear support, then secure its position by installing capscrews through mounting holes in edge of hood and bolt holes in rear tube of combine. -
Page 22: Principles Of Peanut Harvest
PRINCIPLES OF PEANUT HARVEST: The KMC Peanut Combine is designed to be used for the removal of peanut pods from peanut vines which have been uprooted. It will then separate the peanuts from the vines, placing the pods in a storage tank on top of the machine, and return the vines to the ground. The combine must be pulled and powered by a farm tractor. -
Page 23: Fundamentals For Good Performance
FUNDAMENTALS FOR GOOD PERFORMANCE: 1. The peanut vines must not be too green or good B. Select a ground speed that will not overload separation will be slow and difficult. the combine. Too much ground speed is 2. Moisture content of the peanut should not be too one of the greatest causes of poor perform- high or too low, otherwise increased damage or ance in separation. -
Page 24: Operational Setup
OPERATIONAL SETUP TRACTOR PREPARATION: Before operating implement refer to tractor operator’s manual for information concerning safe methods of operation, hydraulics, hitch adjustment, tire inflation, wheel adjustments and tractor weights. Check tractor brakes and warning lights, make sure they are in proper working order. Check tractor hydraulics oil reservoir and add oil if needed. -
Page 25: Hitching To The Implement
HITCHING TO THE IMPLEMENT NOTE: KMC COMBINES SHOULD BE OPERATED AT A PTO SPEED RANGE OF 900 TO 1000 RPM FOR OPTIMUM PERFORMANCE AND FUEL EFFICIENCY. Before Hooking Combine To The Tractor Settings For Drawbar Yokes If 4-row combine is delivered with the tongue in 1/2”... -
Page 26: Tractor Setup And Attaching To The Combine
4” Drawbar Yoke Setting 1/4” SPACER 1/2” SPACER 1/8” SPACER END VIEW FOR 4” DRAW BAR END VIEW Tractor Setup and Attaching To The Combine The distance from the end of the tractor PTO to the center of the hitch pin should be 16” for 1 3/8- 21 PTO, and 20”... -
Page 27: Special Attachment
drawbar is installed you can remove the transport STORAGE FOR TRANSPORT U-bolt and store it on the upper tongue as shown U-BOLT in figure 8. Attach the driveline to the tractor and lower gearbox, making sure driveline and combine gearbox match. Secure driveline shields upper and lower halves with safety chains provided. -
Page 28: Pick-Up Auger Adjustment & Operation
Pick-Up Auger Adjustment and Operation The purpose of the auger is to transfer vines to the center of the machine after they have been lifted by the pickup reel. PROPER VINE FLOW IS IMPORTANT AND ALLOWS THE PICKING AND SEPARATION SYSTEMS TO PERFORM EFFICIENTLY AND SAVE MORE PEANUTS. -
Page 29: Roller (Standard)
Roller (Standard) In small vines which feed well under the auger, it may be necessary to move the au- ger to the rear and/or lower it to prevent vines from wrapping or building in the trough. IT IS VERY IMPORTANT THAT VINES FEED FROM THE BACK OF THE AUGER! The hexagon roller comes standard on... -
Page 30: Timing For #5, #6 & #7 Cylinders
Underneath each cylinder is a cylinder concave, the rear four are floating concaves. They may need adjusting to achieve the proper clearance between the cylinder spring and the concave. To make this adjustment back off the adjustment nut on the setscrew on bottom of the concave until the springs miss the concave by 9/16 inch for runner peanuts and 3/4 inch for Virginia type nuts. -
Page 31: Separation System
DO NOT USE UPPER STRIPPERS IN DRY PEANUTS. This usually results fewer LSK’s. It is important to balance ground speed and stripper engagement to minimize LSK’s and damage. NOTE: As conditions change from morning to afternoon strippers may need to be removed to minimize damage. -
Page 32: Screen Adjustment
SCREEN ADJUSTMENT CLOD SCREEN The openings are controlled by two levers in the center of the screen, see figure 20. The purpose of the chaffer is to separate the peanuts from materials that are close in size and weight to the peanut. Although vine and field condi- tions will influence the final setting of the chaffer the following recommendations are made for initial start-up. -
Page 33: Axle Height Adjustment
AXLE HEIGHT ADJUSTMENT 4-ROW & 6(30) WHEEL AND TIRE INFORMATION TORQUE 1" BOLTS TO 680 FT-LBS. TORQUE WHEEL LUG NUTS TO 400 FT-LBS. INFLATE TIRES TO 36 PSI. LEFT RIGHT TOP HOLES OF THE SPINDLE BOLT TO THE TOP HOLES OF THE AXLE. SPINDLES ARE MADE SO THE COMBINE CAN BE RAISED AND LOWERED IN 2"... - Page 34 DANGER Be very careful when handling shields, which are heavy. Lack or misuse of proper lifting and securing devices may result in serious injury or death. 1) Open the shields and attach a lifting device with chains to both ends of the shield, and remove 3/8”...
-
Page 35: Separation Fan Adjustment
SEPARTION FAN ADJUSTMENT The MAIN FAN is an essential part of the separation process. The principle of separation is air and gravity, as the peanuts and foreign material fall from the agitator rods onto the cleaning shoe gravity begins to pull the peanuts downward, air then blows the hay and foreign material out the back. There- fore, the right combination of air for conditions must be determined. -
Page 36: Stemmer Saws
STEMMER SAWS As the peanuts fall from the chaffer they fall STEMMER SAWS onto a set of stemmer saws. These saws remove the stems from the peanuts and dispose of the vine fragments. The saws turn in opposite direc- tion which rotates most all peanuts into position for stem removal. -
Page 37: Monitoring System
MONITORING SYSTEM Air Lift Damper The Air Lift Damper Actuator allows control of the amount of air moving peanuts into the tank from within the tractor cab. Shown in figure 26. Figure 26 AIR LIFT DAMPER ACTUATOR Figure 27 CONTROL BOX Figure 28 GEAR &... -
Page 38: Head Monitor
Head Monitor The head Monitor is used by adjusting the hydraulic flow rate supplying the pick-up head until the display, located on the lower left to the Control Box, (see Figure 27) matches the desired ground speed. The monitor dis- plays proper ground... -
Page 39: Combine Tank
COMBINE TANK DANGER NEVER LIFT TANK WHILE UNDERNEATH POWER LINES. Figure 31 COMBINE TANK The tank is located on top of the combine. Care should be taken not to over fill the tank as excess peanuts will plug the delivery system and eventually spill on to the ground. The tank is emptied by two hydraulic cylinders which lift the bottom of the tank until it reaches a vertical position. -
Page 40: Duct Liner Instructions
Duct Liner Instructions: When replacing liners do NOT over tighten the hexnut. Tighten the hexnuts to firmly seat the head of the bolt, then back off the nut, 3/4” to 1” turn. When the hexnut is tighten to much it can the liner to wear out prematurely. -
Page 41: Vine Spreader
CYLINDER TRANSPORT LOCK Figure 34 VINE SPREADER Depending on the rotation of the Vine Spreader Pivot, the head of the bolt should be the leading edge as shown in the photograph. This is done to help cut down on hay build up on the couplers. HEAD OF BOLT HEAD OF BOLT DIRECTION OF... -
Page 42: Trouble Shooting
TROUBLE SHOOTING OTHER PARTS OF THE COMBINE PROBLEM POSSIBLE CAUSE AND SOLUTION 1. Vines rolling in front of pickup, not being picked 1. Small vines or high winds will not allow springs up by header. to penetrate vines. Install vine hold down attachment and for extreme conditions bend pickup spring up slightly 1”... - Page 43 PROBLEM POSSIBLE CAUSE AND SOLUTION 1. Too little air through separator. Turn control han- 6. Excessive foreign material in sample. dle to increase air. CW-6R. Place small 7 1/2” pulley as driven - 4R. 2. If material is small and dry, reduce aggressive- ness of stripper springs.
- Page 44 PROBLEM POSSIBLE CAUSE AND SOLUTION 1. Check eccentric drive belts on BOTH sides of the 10. Excessive machine vibration. machine to be sure they are tight. CAUTION Avoid over tightening of the belt on the right side as this could cause the shaft to bend due to an excessive overhung load.
-
Page 45: Lubrication Points
MAINTENANCE LUBRICATION POINTS There are certain things which need daily or regular attention to keep your combine in good operating condition. LUBRICATION is the most important of these. The following chart shows points that require lubri- cation and the intervals at which they require it. The cylinder bearings on the combine are prelubed and non-re-lubricatable. - Page 46 Double Swivel Gearbox Oil should be changed after the first 30 to 50 hours of operation, then every 500 hours or annually. The recommended oil is KMC part # 03-050-080. Figure 48A DOUBLE SWIVEL GEARBOX Upper Header Gearbox Figure 48B HEADER GEARBOX Vine Spreader Gearbox Figure 49 VINE SPREADER GEARBOX...
-
Page 47: Pick-Up Cylinder, Stripper Springs
Pick-Up, Cylinder, and Stripper Springs SPRING MAINTENANCE should be performed daily to insure peak performance of the combine. 1. Pickup springs should be checked for broken or bent tines and for excessive rubbing on the pickup bands. Broken or bent springs can be replaced through the access opening underneath and at the rear of the pickup. -
Page 48: Main Drives On Lower Header
Figure 40 NO. 6 & 7 CYLINDER DRIVE Figure 39 NO. 5 CYLINDER DRIVE Main Drives on Lower Header The main drive, both fans, eccentric, and stemmer saws are all driven by V-belts. Proper installation and tension of the belts is necessary for optimum performance. -
Page 49: Left Side Drives
Left Side Drives 6-ROW ECCENTRIC & JACKSHAFT DRIVE BELT 4-ROW STEMMER SAW DRIVE BELT Right Side Drives AIR LIFT FAN DRIVE BELT ECCENTRIC DRIVE BELT 4 1/2”... -
Page 50: Vine Spreader Drive Belt
VINE SPREADER DRIVE BELT TIRE INFLATION CHART It is important that the inflation of all tires be set properly for maximum safety and performance. Use the following guide to adjust the inflation pressure in the tires to match the application of the machine. COLD INFLATION PRESSURE VALUES IN PSI TIRE SIZE COLD INFLATION PRESSURE... -
Page 51: Wiring Harness For Lights
WIRING HARNESS FOR LIGHTS REAR OF COMBINE RIGHT TAIL LIGHT LEFT TAIL LIGHT MOLDED CIRCUIT CONNECTOR 11 FT PIG TAIL 11 FT PIG TAIL FRONT COMBINE HARNESS AMBER LIGHT ASSEMBLY AMBER LIGHT ASSEMBLY 7-WAY PLUG ADAPTER 6-ROW 6-ROW TO REAR OF TRACTOR 4-ROW 4-ROW... -
Page 52: Tachometer Wiring
TACHOMETER WIRING DT8 TACHOMETER WIRING INSTRUCTIONS BACK SIDE OF TACHOMETER INPUT TERMINAL TERMINAL GROUND TERMINAL INPUT WIRE COMM WIRE (BLACK) (WHITE) SHIELD WIRE Connect the shield wire and white wire to the ground terminal. Connect the black wire to the input terminal. ... - Page 53 NOTES...
- Page 54 NOTES...
- Page 55 The following is a list of serial numbers issued to our machines at the beginning of each year. To determine when a unit was made, find the range within which the particular serial num- ber falls. It would have been produced between January 1 to December 31 of that year. YEAR SERIAL NUMBERS 2010...
- Page 56 DEPENDABLE EQUIPMENT FOR PROGRESSIVE FARMING Visit us at www.kelleymfg.com KELLEY MANUFACTURING CO. 80 Vernon Drive / Zip 31794 Tel: 229-382-9393 P.O. Drawer 1467 / Zip 31793 Toll Free: 1-800-444-5449 Tifton, GA Fax: 229-382-5259 MADE IN AMERICA Email Address: info@kelleymfg.com...
