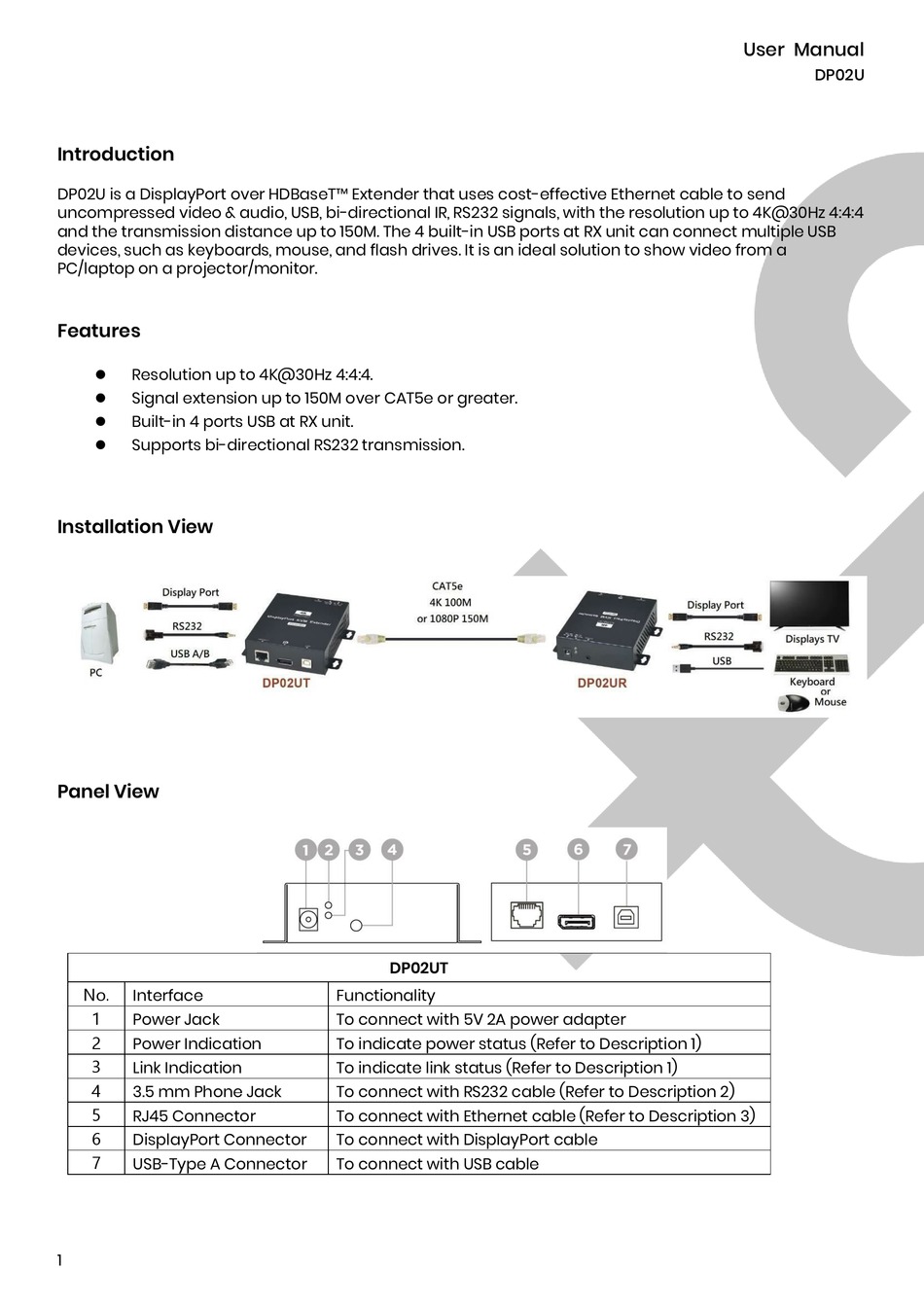

Installation View - SC&T DP02U User Manual

Introduction
DP02U is a DisplayPort over HDBaseT™ Extender that uses cost-effective Ethernet cable to send
uncompressed video & audio, USB, bi-directional IR, RS232 signals, with the resolution up to 4K@30Hz 4:4:4
and the transmission distance up to 150M. The 4 built-in USB ports at RX unit can connect multiple USB
devices, such as keyboards, mouse, and flash drives. It is an ideal solution to show video from a
PC/laptop on a projector/monitor.
Features
Resolution up to 4K@30Hz 4:4:4.

Signal extension up to 150M over CAT5e or greater.

Built-in 4 ports USB at RX unit.

Supports bi-directional RS232 transmission.


Installation View

Panel View
No.
Interface
1
Power Jack
2
Power Indication
3
Link Indication
4
3.5 mm Phone Jack
5
RJ45 Connector
6
DisplayPort Connector
7
USB-Type A Connector
1
DP02UT
Functionality
To connect with 5V 2A power adapter
To indicate power status (Refer to Description 1)
To indicate link status (Refer to Description 1)
To connect with RS232 cable (Refer to Description 2)
To connect with Ethernet cable (Refer to Description 3)
To connect with DisplayPort cable
To connect with USB cable
