HDMI over Fiber Optic Extender
User Manual
Model :
HE01F-4K6G
4K60Hz HDMI & USB/IR/RS232 KVM Fiber Optic Extender
Smart Cabling & Transmission Corp.
V1.0
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE01F-4K6G and is the answer not in the manual?

Questions and answers

Summary of Contents for SC&T HE01F-4K6G

  • Page 1 HDMI over Fiber Optic Extender User Manual Model : HE01F-4K6G 4K60Hz HDMI & USB/IR/RS232 KVM Fiber Optic Extender Smart Cabling & Transmission Corp. V1.0 V1.0...
  • Page 2: Installation View

    User Manual HE01F-4K6G Introduction HE01F-4K6G is an HDMI extender that overcomes the length restriction of a standard HDMI cable using fiber optic cable. The extender can send uncompressed HDMI with USB, RS232 or bi-directional IR signal for up to 60KM.

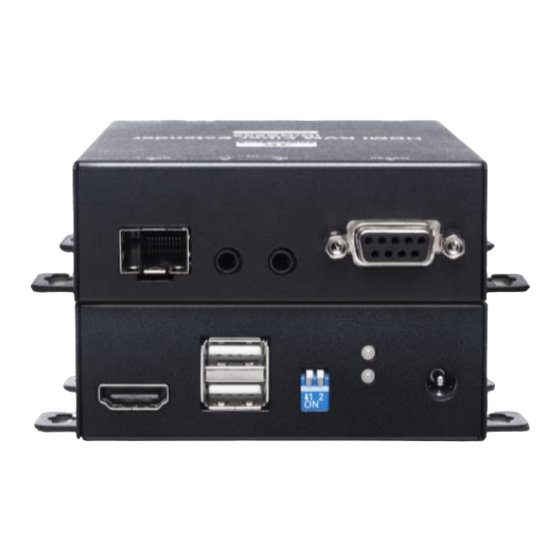

  • Page 3 User Manual HE01F-4K6G Panel View HE01FT-4K6G HE01FR-4K6G LED Indication LED Indication LED Color Status Power GREEN On/ Off Power On/ Off Connection BLUE On/ Off Fiber Linked/ Unlinked DIP Switch Follow the instructions below to enable IR, RS232 or keyboard & mouse extension. Please also note that ON refers to ↓, and OFF refers to ↑.
  • Page 4: Package Includes

    Using certified Premium HDMI cable to transfer high-resolution video is recommended. 3. DO NOT put IR Emitter/Receiver cable too close with each other to avoid interference. 4. HE01F-4K6G DOES NOT support CEC. Package Includes Item...
  • Page 5: Specification

    User Manual HE01F-4K6G Specification ITEM NO. HE01FT-4K6G HE01FR-4K6G Support Compliance HDMI 2.0, HDCP 2.2, 3D, HDR Max. Video Resolution 4K@60Hz 4:4:4 18Gbps Max. Transmission Distance 60KM over Signal-mode, 300M over Multi-mode Audio Format LPCM 7.1@192KHz, Dolby TrueHD, DTS-HD MA, ATMOS, DTS:X...
