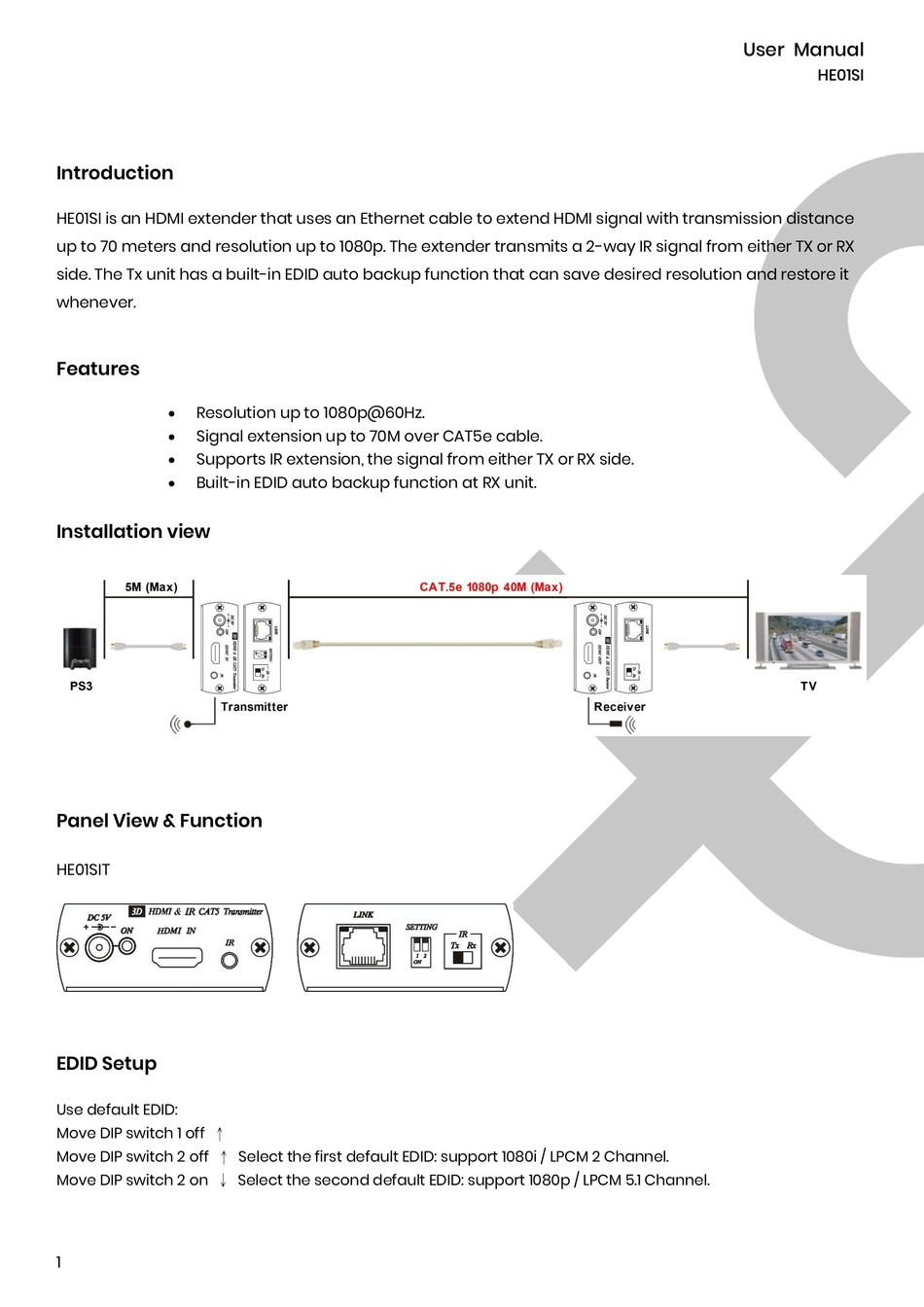

Introduction
HE01SI is an HDMI extender that uses an Ethernet cable to extend HDMI signal with transmission distance
up to 70 meters and resolution up to 1080p. The extender transmits a 2-way IR signal from either TX or RX
side. The Tx unit has a built-in EDID auto backup function that can save desired resolution and restore it
whenever.
Features
Resolution up to 1080p@60Hz.

Signal extension up to 70M over CAT5e cable.

Supports IR extension, the signal from either TX or RX side.

Built-in EDID auto backup function at RX unit.


Installation view

Panel View & Function
HE01SIT
EDID Setup
Use default EDID:
Move DIP switch 1 off ↑
Move DIP switch 2 off ↑ Select the first default EDID: support 1080i / LPCM 2 Channel.
Move DIP switch 2 on ↓ Select the second default EDID: support 1080p / LPCM 5.1 Channel.
1
