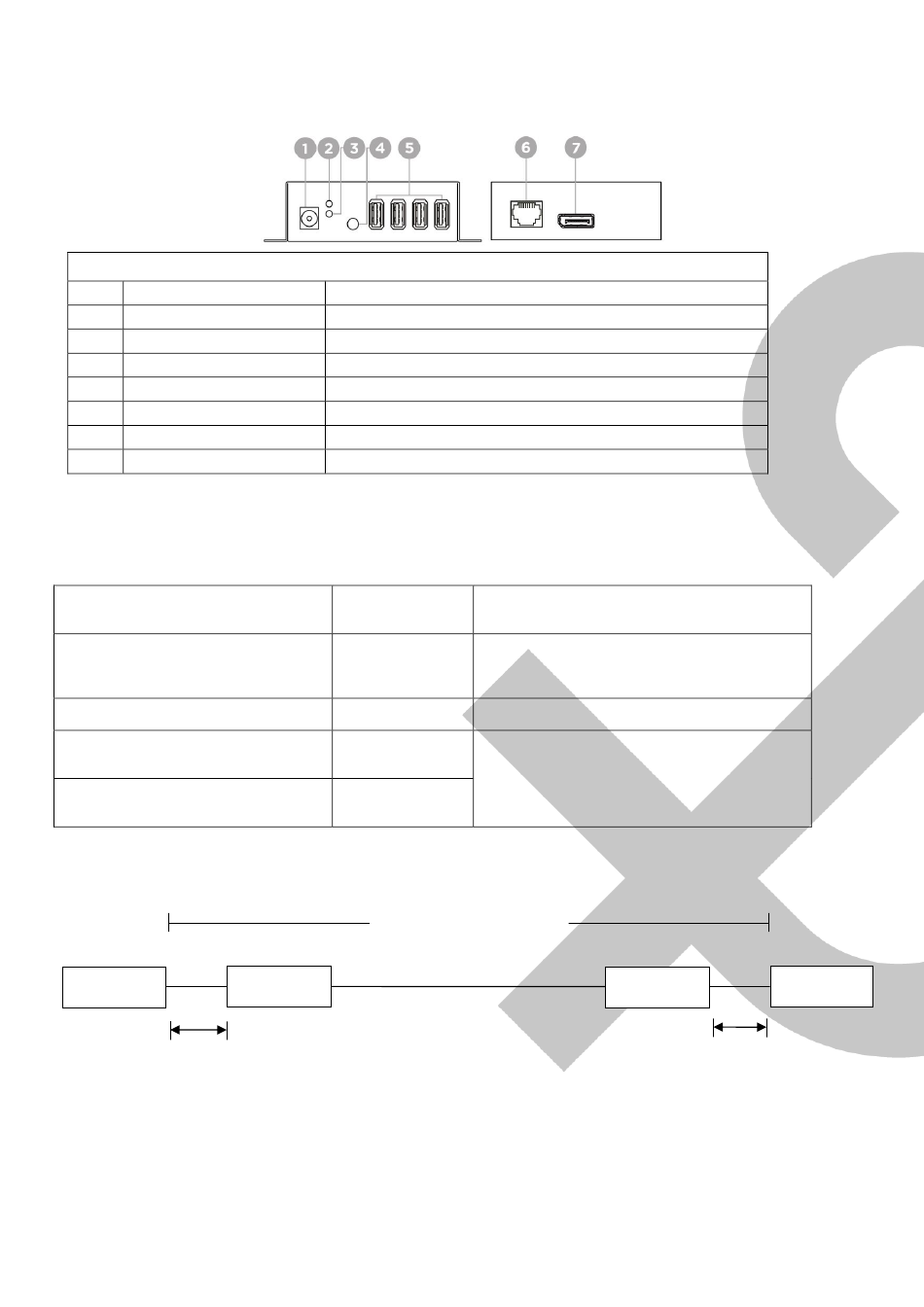

Interface
1
Power Jack
2
Power Indication
3
Link Indication
4
3.5 mm Phone Jack
5
USB-Type B Connector
6
RJ45 Connector
7
DisplayPort Connector
Transmission Distance Chart
Cable Type
CAT5e / CAT6/CAT6a/CAT7
CAT5e / CAT6
CAT5e
CAT6/ CAT6a/ CAT7
If the Ethernet cable passes through the wall socket, the length of the cable between DP02U and Wall
Jack must be fewer than 3 meters as connection diagram shown below:
Tx
3M
Cable
We recommend using high-quality CAT5e, CAT6, CAT6a, CAT7 UTP/STP, or FTP cables to connect DP02UT
and DP02UR. Poor quality cables and any improper connection will cause video or audio disruptions and
picture noise.
DP02UR
Functionality
To connect with 5V 2A power adapter
To indicate power status (Refer to Description 1)
To indicate link status (Refer to Description 1)
To connect with RS232 cable (Refer to Description 2)
To connect with USB cables
To connect with Ethernet cable (Refer to Description 3)
To connect with DisplayPort cable
Max Distance
150M
100M
90M
100M
Wall Jack
Max Resolution
Long Reach Mode
1080p 60Hz 8bit
1080p 60Hz 12bit
1080p 60Hz 16bit
4096x2160@30Hz 4:4:4
4096x2160@60Hz 4:2:0
MAX 150M
User Manual
Rx
Wall Jack
3M
DP02U
