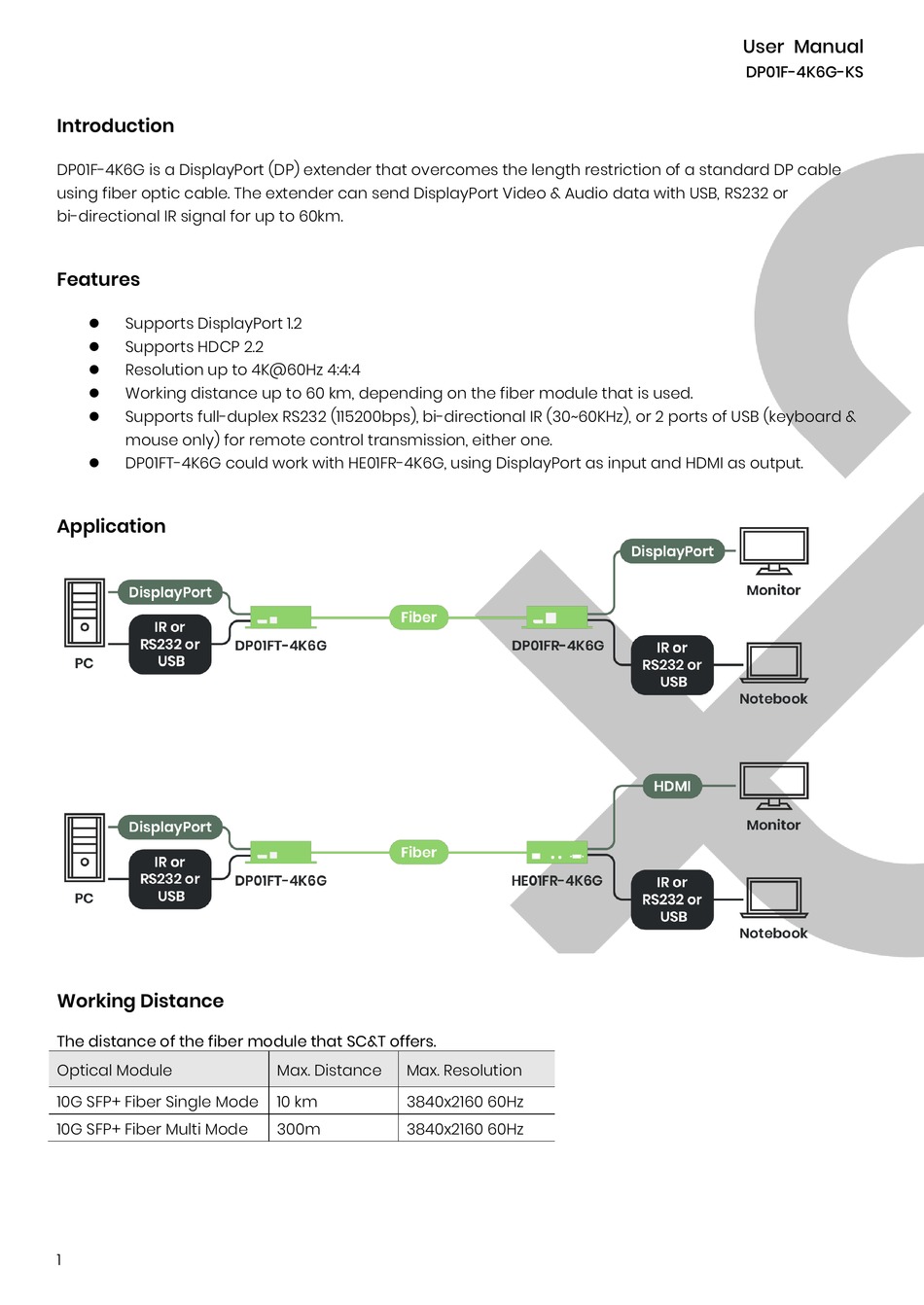

Introduction
DP01F-4K6G is a DisplayPort (DP) extender that overcomes the length restriction of a standard DP cable
using fiber optic cable. The extender can send DisplayPort Video & Audio data with USB, RS232 or
bi-directional IR signal for up to 60km.
Features
Supports DisplayPort 1.2
Supports HDCP 2.2
Resolution up to 4K@60Hz 4:4:4
Working distance up to 60 km, depending on the fiber module that is used.
Supports full-duplex RS232 (115200bps), bi-directional IR (30~60KHz), or 2 ports of USB (keyboard &
mouse only) for remote control transmission, either one.
DP01FT-4K6G could work with HE01FR-4K6G, using DisplayPort as input and HDMI as output.
Application
Working Distance
The distance of the fiber module that SC&T offers.
Optical Module
10G SFP+ Fiber Single Mode
10G SFP+ Fiber Multi Mode
1
Max. Distance
Max. Resolution
10 km
3840x2160 60Hz
300m
3840x2160 60Hz
User Manual
DP01F-4K6G-KS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SC&T DP01F-4K6G
Summary of Contents for SC&T DP01F-4K6G
- Page 1 DP01F-4K6G-KS Introduction DP01F-4K6G is a DisplayPort (DP) extender that overcomes the length restriction of a standard DP cable using fiber optic cable. The extender can send DisplayPort Video & Audio data with USB, RS232 or bi-directional IR signal for up to 60km.
- Page 2 User Manual DP01F-4K6G-KS Panel Viewss DP01FT-4K6G Interface Description DisplayPort Connect to DisplayPort Video Source USB Type-B Connect to USB Host DIP Switch Select IR/RS232/Keyboard & mouse Extension LED Indicator Indicate working status DC Jack Input 5V 2A Power SFP+ Connect to Single/Multi mode SFP+ module IR Tx 3.5mm...

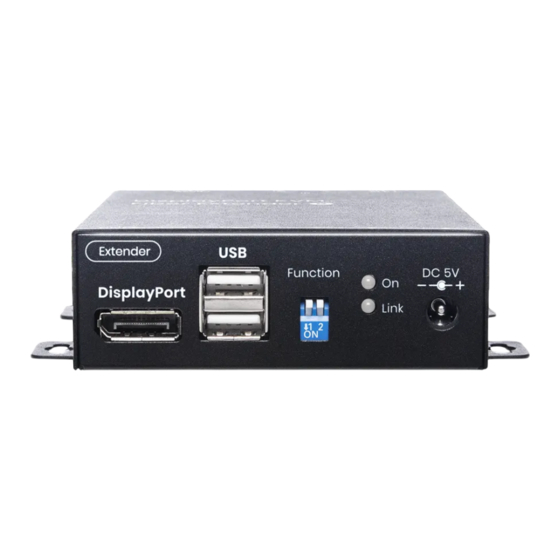

- Page 3 User Manual DP01F-4K6G-KS DP01FR-4K6G Interface Description DisplayPort Connect to DisplayPort Monitor USB Type-A Connect to USB devices DIP Switch Select IR/RS232/Keyboard & mouse Extension LED Indicator Indicate working status DC Jack Input 5V 2A Power SFP+ Connect to Single/Multi mode SFP+ module IR Tx 3.5mm...
-
Page 4: Led Indicator
User Manual DP01F-4K6G-KS LED Indicator LED Indication LED Color Status Power GREEN On/ Off Power On/ Off Connection BLUE On/ Off Fiber Linked/ Unlinked DIP Switch Follow the instructions below to enable IR, RS232 or keyboard & mouse extension. Please also note that ON refers to ↓, and OFF refers to ↑... -
Page 5: Package Includes
User Manual DP01F-4K6G-KS Caution Using VESA certified DisplayPort cable to transfer high-resolution video is recommended Power consumption may vary according to the connected USB devices DO NOT put IR Emitter/Receiver cables too close to each other to avoid interference. -
Page 6: Specification
User Manual DP01F-4K6G-KS Specification ITEM NO. DP01FT-4K6G DP01FR-4K6G Support Compliance DP 1.2, HDCP 2.2 Max. Video Resolution 4K@60Hz 4:4:4 60km over single-mode Max. Transmission Distance 300m over multi-mode Audio Format DisplayPort Audio pass-through RS232 Baud Rate 115200 bps (Full Duplex) 30~60KHz, ±10°, 5M,...
