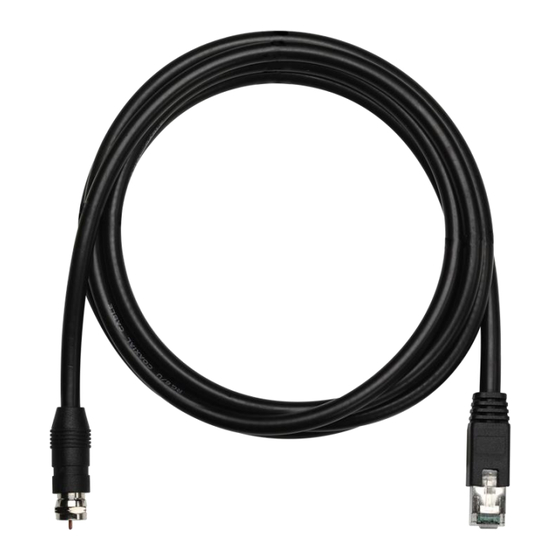

- Page 1 Cable Series User Manual Model : CE01TV CATV CAT5e Extender (2pcs/1set, 2.4Ghz 30M, 900Mhz: 50M) Smart Cabling & Transmission Corp. V1.0...
- Page 2 User Manual CE01TV Introduction coax cable, which replaces coaxial cables and uses Cat5e UTP cables to carry the signals. The extender allows broadband CATV equipment to integrate into structured cabling systems and add CATV equipment to any convenient modular wall outlet. It's a versatile cabling solution for broadband video systems used by offices, schools, government, hospitals, hotels, even private homes...
- Page 3 User Manual CE01TVI Cable Link Cable recommend use high quality Cat.5e. UTP, STP or CAT6 UTP cable. Transmission Range Max. distance up to 100M. The following distance chart reference may different based on cable quality and input/output signal level. Cable Distance Application Range Frequency...
- Page 4 User Manual CE01TV Specification ITEM NO. CE01TV Support Video Bandwidth 40 MHz to 2.4 GHz 3dB Bandwidth 40 MHz to 1 GHz Max. Transmission Distance 100M Insert Loss <3 dB @ 40 to 1GHz Return Loss >18 dB @ 40 to 1GHz CMRR -20dB or Higher Ports &...
