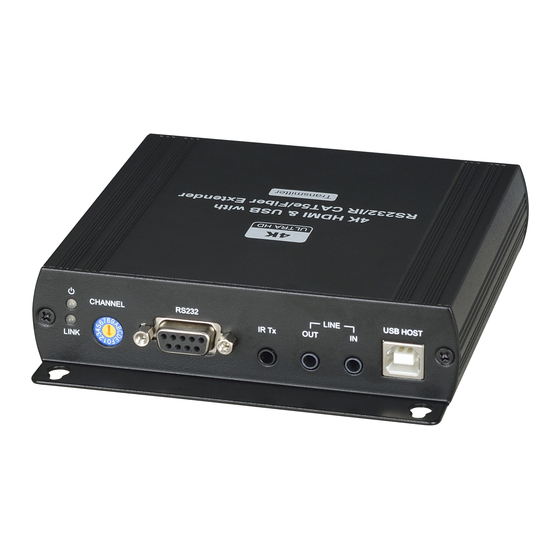

SC&T HKM01T Firmware Update

To update firmware, you could input the IP address of transmitter / receiver at link column of browser if
you know the exact IP address of them.
There are three ways to get the IP address of receiver:
1. Connect monitor with receiver, local IP shows on right bottom screen when receiver booting or
transmitter not connected( or no video input)
2. Press remote control button [MENU] [1] [ENTER] (IP Address), it will shows the receiver IP
Address on screen
3. Install Internet explorer plug-in: Bonjour , click device name to enter web setting page to get the IP
address(please refer Bonjour plug-in installation)
There are three ways to get the IP address of transmitter:
1. Connect monitor with receiver, connect receiver with transmitter and set in the same
channel, remote IP shows on right bottom screen when receiver booting or no video input from
transmitter
2. Connect monitor with receiver, connect receiver with transmitter and set in the same
channel, press remote control button [MENU] [2] [ENTER] (Host IP Address) at receiver side, it will
shows the transmitter IP Address on screen(must remove the HDMI cable of transmitter or turn off
the video source).
3. Install Internet explorer plug-in: Bonjour , click device name to enter web setting page to get the IP
address(please refer Bonjour plug-in installation)
System default IP setting is Auto IP, it will assign 169.254.X.X (subnet mask 255.255.0.0) to
transmitters and receivers, you could also set to DHCP or Static IP.
You computer must set in same subnet mask to enter the web setup page.
1. Copy the firmware files to PC
 Webfw-TX.bin  HKM01T, DKM01BT, VKM03BT, HE05BT,
 Webfw-RX.bin  HKM01R, VDKM01BT, HE05BR, HE05BER
2. Install BonjourSDKSetup.exe if you do not know the IP address of transmitter/receiver
3. Right click on "My Network Place"  "Properties" then right click on "Local Area Connection" 
"Properties" then double click on "Internet Protocol (TCP/IP)" to setting as below: (IP address
169.254.111.111, sub mask

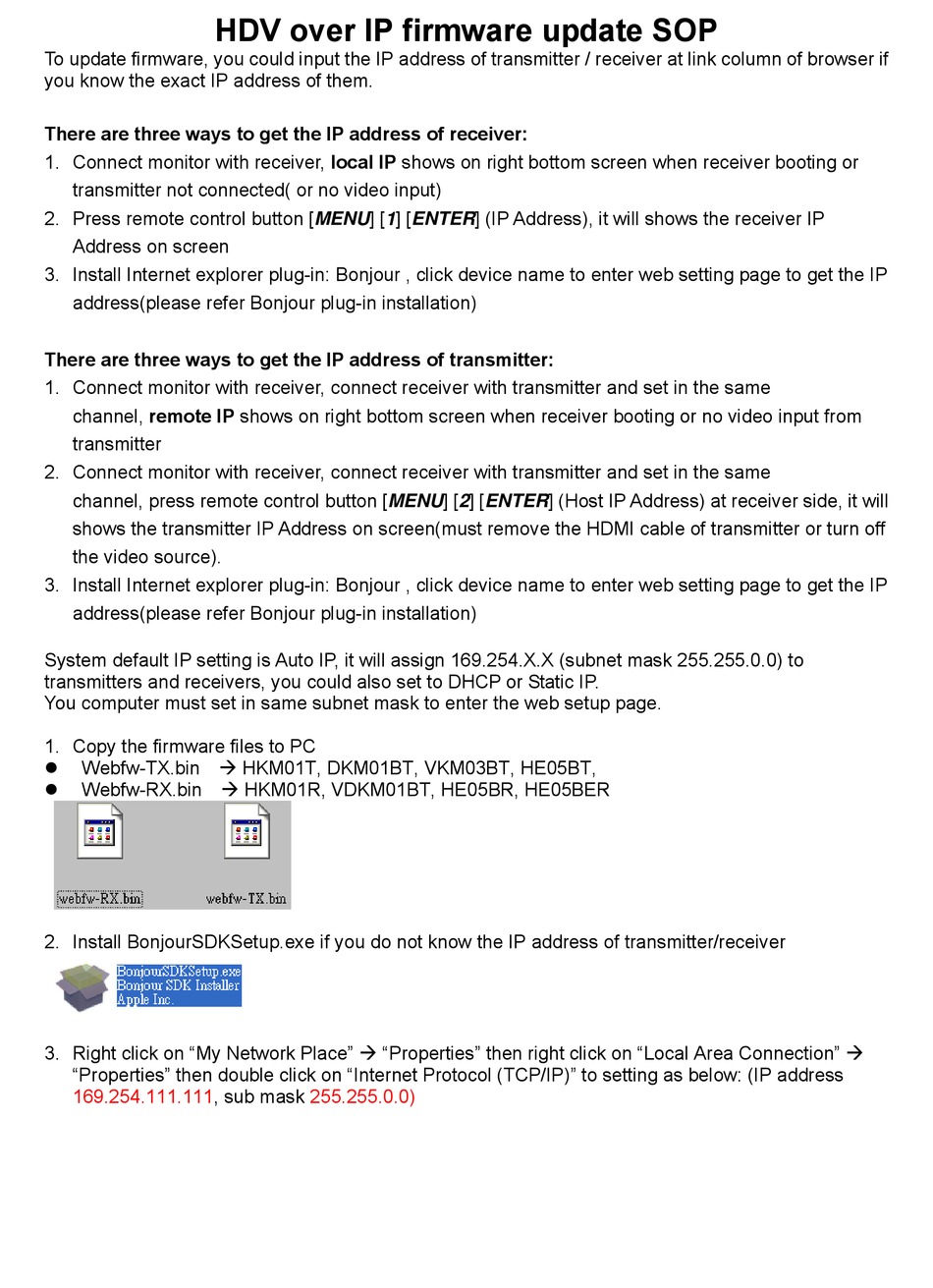

HDV over IP firmware update SOP
255.255.0.0)
