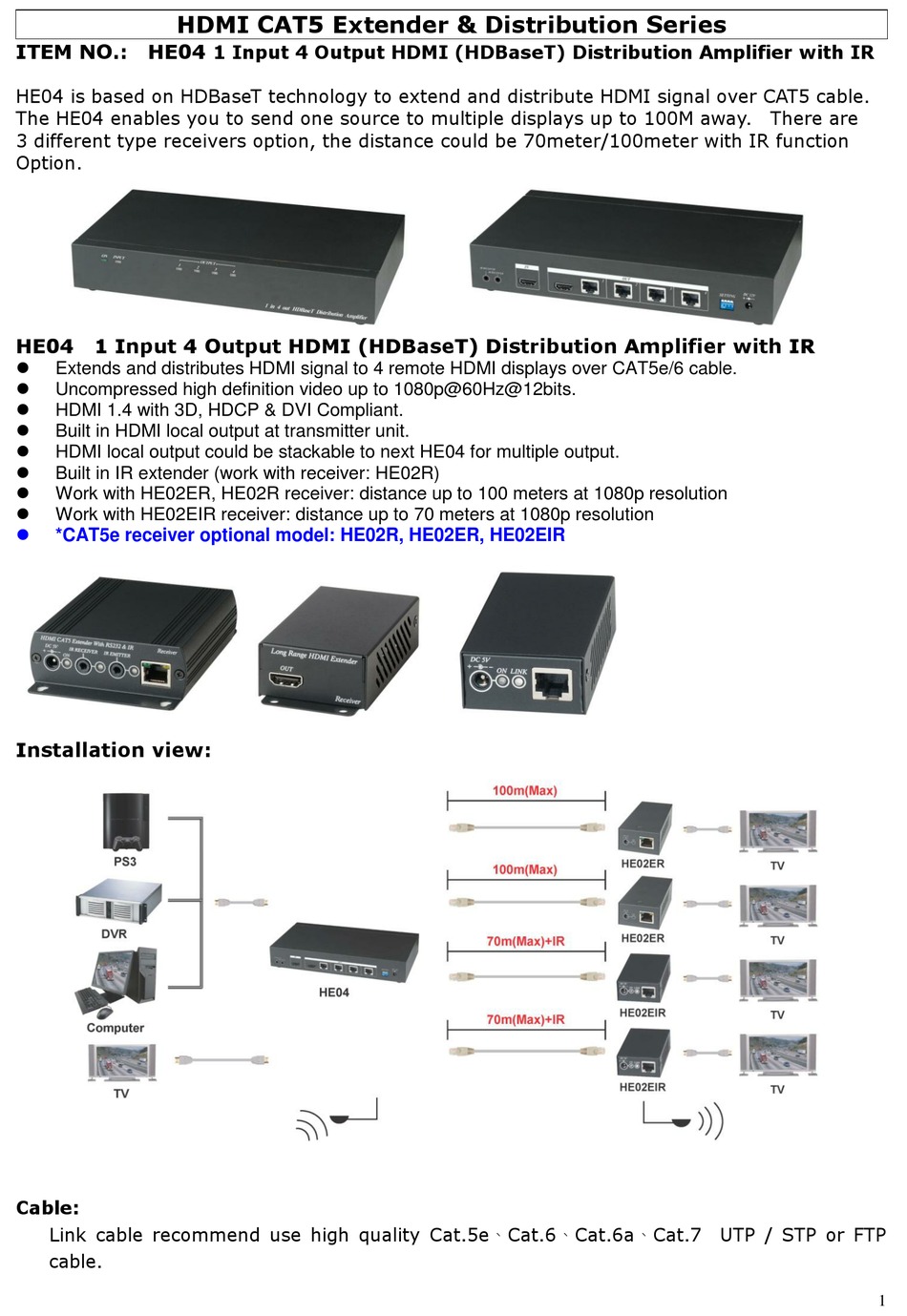

HDMI CAT5 Extender & Distribution Series
ITEM NO.: HE04
HE04 is based on HDBaseT technology to extend and distribute HDMI signal over CAT5 cable.
The HE04 enables you to send one source to multiple displays up to 100M away. There are
3 different type receivers option, the distance could be 70meter/100meter with IR function
Option.
HE04 1 Input 4 Output HDMI (HDBaseT) Distribution Amplifier with IR
Extends and distributes HDMI signal to 4 remote HDMI displays over CAT5e/6 cable.
Uncompressed high definition video up to 1080p@60Hz@12bits.
HDMI 1.4 with 3D, HDCP & DVI Compliant.
Built in HDMI local output at transmitter unit.
HDMI local output could be stackable to next HE04 for multiple output.
Built in IR extender (work with receiver: HE02R)
Work with HE02ER, HE02R receiver: distance up to 100 meters at 1080p resolution
Work with HE02EIR receiver: distance up to 70 meters at 1080p resolution

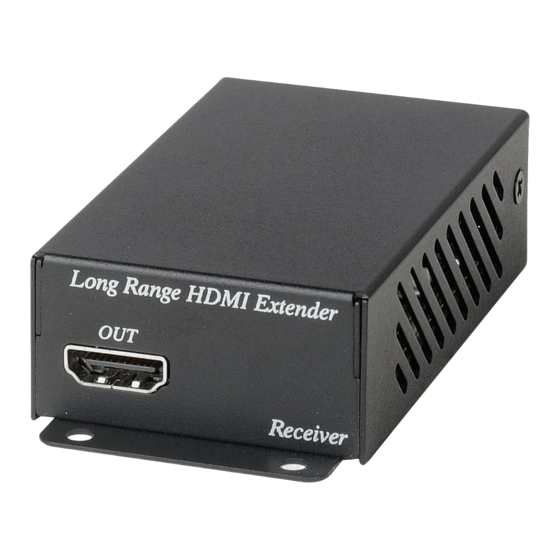

*CAT5e receiver optional model: HE02R, HE02ER, HE02EIR
Installation view:
Cable:
Link cable recommend use high quality Cat.5e、Cat.6、Cat.6a、Cat.7 UTP / STP or FTP
cable.
1 Input 4 Output HDMI (HDBaseT) Distribution Amplifier with IR
1
Advertisement
Table of Contents
Related Manuals for SC&T HE04
Summary of Contents for SC&T HE04
- Page 1 HE04 is based on HDBaseT technology to extend and distribute HDMI signal over CAT5 cable. The HE04 enables you to send one source to multiple displays up to 100M away. There are 3 different type receivers option, the distance could be 70meter/100meter with IR function Option.
-
Page 2: Transmission Distance
The maximum transmission distance up to 70/100meters according different receiver. Use lower resolution won’t extend longer distance. If connection through the wall socket, the cable length must less 5 meters between HDMI extender and wall jack. HE04 Connection Diagram: BD PLAYER BD PLAYER IR Receiver Cable... -
Page 3: Back Side
Back Side： EDID : (Extended display identification data) Default Mode : EDID Dip switch 1~4 all at “up” position. EDID Copy Mode : EDID Dip Switch 1 move down to ON，copy HDBaseT output 1 TV EDID for SOURCE reading. EDID Dip Switch 2 move down to ON，copy HDBaseT output 2 TV EDID for SOURCE reading. EDID Dip Switch 3 move down to ON，copy HDBaseT output 3 TV EDID for SOURCE reading. -
Page 4: Specification
Tx : ±30℃，Rx : ±55℃ HDBaseT IR Emitter/Receive angle HDBaseT IR Emitter/Receive distance 5 meters HDBaseT IR input/output interface 3.5mm Phone Jack x 2 ±45 ℃ HE04 IR Receiving angle HE04 IR Receiving distance 5 meters Power Supply DC 12V 4.2A Power Consumption 1.5A Temperature Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%... - Page 5 ITEM NO. HE02EIR Resolution Up to 1080p / 60Hz / 48 bit Distance 60M by CAT5e/6, 70M by CAT6a HDMI Connector Type A IR Carrier Frequency 30-60Khz IR Angle ±55 IR Distance Power Supply Regulated DC5V 2A x 2 Power Consumption 820mA (Max) Temperature Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%...
