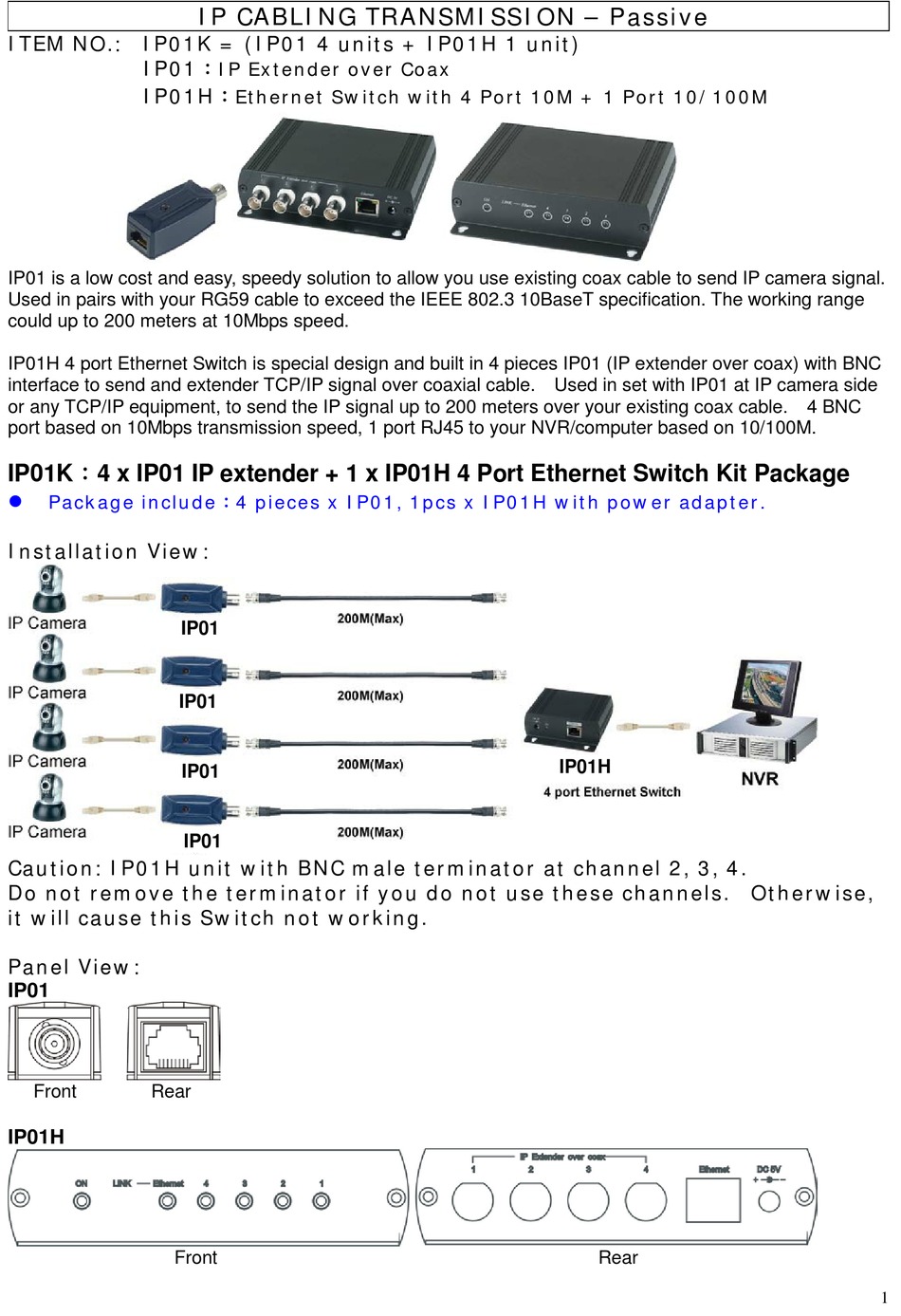

ITEM NO.: IP01K = (IP01 4 units + IP01H 1 unit)
IP01：
IP01H：
IP01 is a low cost and easy, speedy solution to allow you use existing coax cable to send IP camera signal.
Used in pairs with your RG59 cable to exceed the IEEE 802.3 10BaseT specification. The working range
could up to 200 meters at 10Mbps speed.
IP01H 4 port Ethernet Switch is special design and built in 4 pieces IP01 (IP extender over coax) with BNC
interface to send and extender TCP/IP signal over coaxial cable. Used in set with IP01 at IP camera side
or any TCP/IP equipment, to send the IP signal up to 200 meters over your existing coax cable. 4 BNC
port based on 10Mbps transmission speed, 1 port RJ45 to your NVR/computer based on 10/100M.
IP01K：4 x IP01 IP extender + 1 x IP01H 4 Port Ethernet Switch Kit Package
Package include：4 pieces x IP01, 1pcs x IP01H with power adapter.
Installation View:
Caution: IP01H unit with BNC male terminator at channel 2, 3, 4.
Do not remove the terminator if you do not use these channels. Otherwise,
it will cause this Switch not working.
Panel View:
IP01
Front
Rear
IP01H
Front
IP CABLING TRANSMISSION – Passive
IP Extender over Coax
Ethernet Switch with 4 Port 10M + 1 Port 10/100M
IP01
IP01
IP01
IP01
IP01H
Rear
1
