SC&T DKM01 Manual

ITEM NO: DKM01 DVI & USB

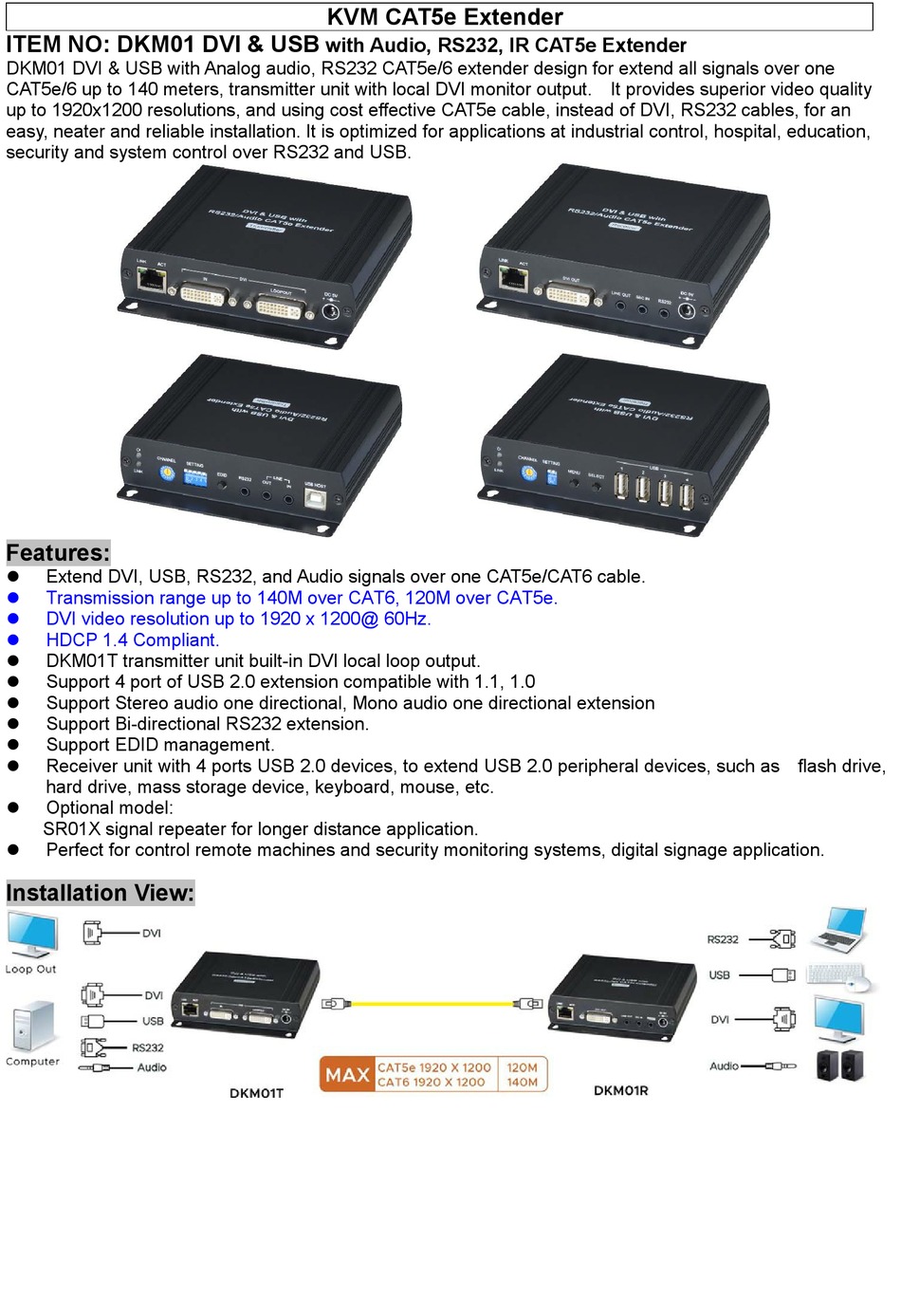

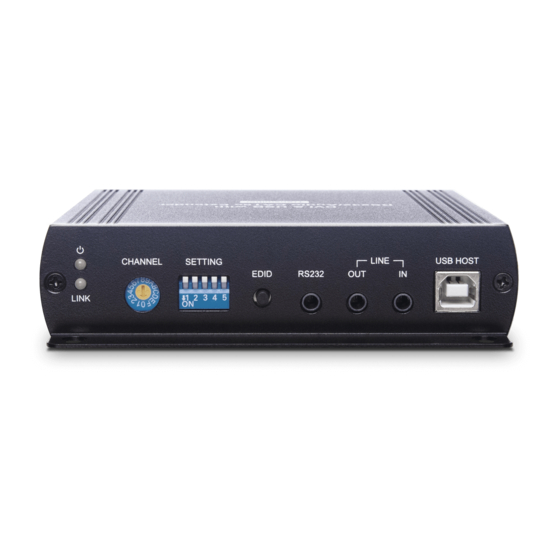

DKM01 DVI & USB with Analog audio, RS232 CAT5e/6 extender design for extend all signals over one
CAT5e/6 up to 140 meters, transmitter unit with local DVI monitor output. It provides superior video quality
up to 1920x1200 resolutions, and using cost effective CAT5e cable, instead of DVI, RS232 cables, for an
easy, neater and reliable installation. It is optimized for applications at industrial control, hospital, education,
security and system control over RS232 and USB.
Features:
 Extend DVI, USB, RS232, and Audio signals over one CAT5e/CAT6 cable.
 Transmission range up to 140M over CAT6, 120M over CAT5e.
 DVI video resolution up to 1920 x 1200@ 60Hz.
 HDCP 1.4 Compliant.
 DKM01T transmitter unit built-in DVI local loop output.
Support 4 port of USB 2.0 extension compatible with 1.1, 1.0

 Support Stereo audio one directional, Mono audio one directional extension
Support Bi-directional RS232 extension.

 Support EDID management.
 Receiver unit with 4 ports USB 2.0 devices, to extend USB 2.0 peripheral devices, such as flash drive,
hard drive, mass storage device, keyboard, mouse, etc.
 Optional model:
SR01X signal repeater for longer distance application.
 Perfect for control remote machines and security monitoring systems, digital signage application.
Installation View:
KVM CAT5e Extender
with Audio, RS232, IR CAT5e Extender
