- Page 1 DisplayPort Extender Series User Manual Model DP02U 4K DisplayPort KVM with USB CAT5e Extender 150M Smart Cabling & Transmission Corp. V1.0_2007171...
-
Page 2: Installation View

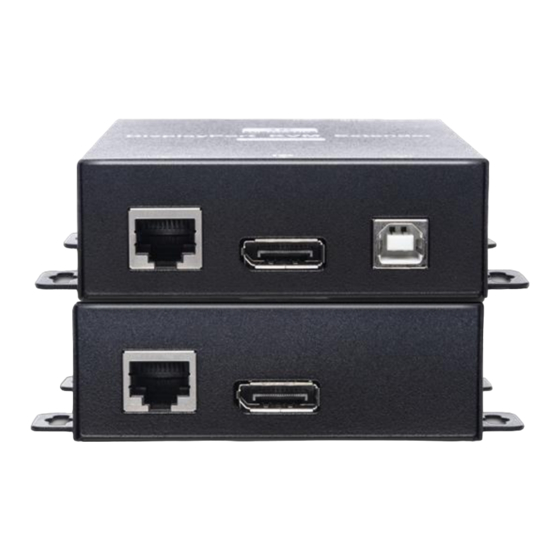

DP02U Introduction DP02U is a DisplayPort over HDBaseT™ Extender that uses cost-effective Ethernet cable to send uncompressed video & audio, USB, bi-directional IR, RS232 signals, with the resolution up to 4K@30Hz 4:4:4 and the transmission distance up to 150M. The 4 built-in USB ports at RX unit can connect multiple USB devices, such as keyboards, mouse, and flash drives. - Page 3 4096x2160@60Hz 4:2:0 CAT6/ CAT6a/ CAT7 100M If the Ethernet cable passes through the wall socket, the length of the cable between DP02U and Wall Jack must be fewer than 3 meters as connection diagram shown below: MAX 150M Wall Jack...
- Page 4 Flash Power Saving Mode Power Saving Mode No video displaying or no connecting with any devices, DP02U will automatically activate Power Saving Mode to save power. When power saving mode enabled, RS232 and USB transmission are not able to function.
-
Page 5: Troubleshooting
The HDBaseT technology does not communicate through the general Ethernet signal. Therefore, using the HDBaseT port to connect with network devices may cause damage to the extender. If there is interference or multiple DP02U used in the environment, using STP or FTP cable is highly recommended. -
Page 6: Led Indication
User Manual DP02U LED Indication Color Status DP02ET DP02ER GREEN Power on ON：LINK Normal, Flash：Low Power Mode BLUE LINK *Low Power Mode: When DP02ET no video input or DP02ER not connect any devices, DP02E will enter a low power mode to save power consumption. - Page 7 User Manual DP02U RJ45 Define Video Link (TIA/EIA-568-B) 1. Orange-white DATA0 + 2. Orange DATA0 - 3. Green-white DATA1 + 4. Blue DATA2 + 5. Blue-white DATA2 - 6. Green DATA1 - 7. Brown-white DATA3 + 8. Brown DATA3 - Caution This device not support MST (Multi Stream Transport) hub function based on DP1.2...
-
Page 8: Specification
User Manual DP02U Specification ITEM NO. DP02UT DP02UR Support Compliance DP 1.2a, HDCP, USB 2.0, 1.1, 1.0 Max. DisplayPort Resolution 4K@30Hz 4:4:4 Max. Transmission Distance 150M at 1080p@60Hz, 100M at 4K@30Hz 4:4:4 Audio Format LPCM 7.1 @ 192KHz, Dolby TrueHD, DTS-HD MA...
