- Page 1 DVI Repeater User Manual Model : DKM01 DVI USB/Audio/RS232 CAT5e KVM Extender V1.0_2008241 Smart Cabling & Transmission Corp.
-
Page 2: Installation View

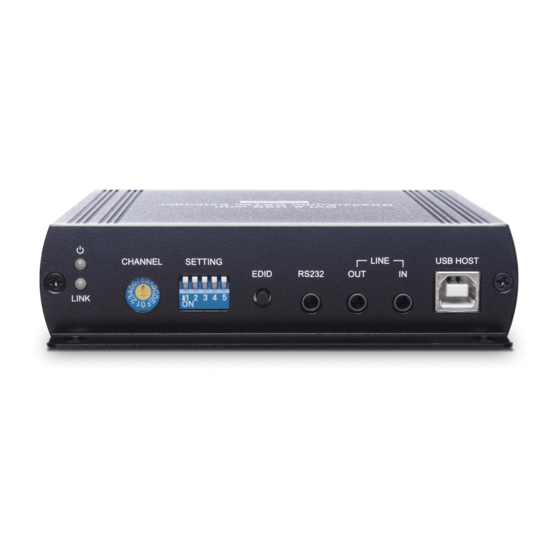

DKM01 Introduction DKM01 is a DVI extender that can not only carry DVI signal but USB, analog audio, RS232 ones using a cost-effective Ethernet cable with transmission distance up to 140M. You can easily control a PC where is far away from you while having an additional DVI monitor along side using the loop-out port at TX unit. It is an ideal solution for industrial, hospital, and education fields. - Page 3 User Manual DKM01 Panel View DKM01T Interface Function Power LED To Indicate the status of power LINK LED To Indicate the status of data transmission Rotary Switch To set up the grouping function DIP Switch To set up the grouping, EDID, RS232 functions...
- Page 4 User Manual DKM01 DKM01R Interface Function MENU To check the status of MAC, IP, Baud Rate and EDID SELECT To set up Baud Rate To connect 4 ports of USB devices (ie. Keyboard, mouse) DVI OUT To connect a DVI display MIC IN To connect a 3.5mm jack for Microphone...
- Page 5 User Manual DKM01 RJ45 RJ45 Indication Status: Link On Data Transferring Green ON Yellow On RJ45 Pinout Color Data Orange-white DATA0 + Orange DATA0 - Green-white DATA1 + Blue DATA2 + Blue-white DATA2 - Green DATA1 - Brown-white DATA3 + DATA3 –...
- Page 6 User Manual DKM01 DB9 (F)/3.5mm STEREO PHONE JACK DB9 (M)/3.5mm STEREO PHONE JACK RS232 3.5 mm RS232 3.5 mm Phone Jack Phone Jack Footprint Define Footprint Define Footprint Define Footprint Define Pin 2 Pin 1 Pin 2 Pin 1 Pin 3...
-
Page 7: Troubleshooting
We strongly recommend using high quality CAT5e, CAT6 UTP/STP/FTP cable. Improper installation may cause unstable connection, and video & audio interruption. DKM01 transmission data rate up to 850Mbps Max. Do not connect general LAN to avoid data transmission slow down other LAN devices. 。... - Page 8 User Manual DKM01 output up to 1500mA. Package Include Item Amount DKM01T (Tx) DKM01R (Rx) USB A/B cable DB9 male to 3.5mm phone jack cable DB9 female to 3.5mm phone jack cable DC 5V 2A power adapter Screw Screw plug...
-
Page 9: Specification
User Manual DKM01 Specification ITEM NO. DKM01T DKM01R Support Compliance HDCP 1.4, USB 2.0, USB 1.1, USB 1.0 Max. Video Resolution 1920 x 1200@60 Hz Max. Transmission Distance 140M over CAT6 or Greater Video Bandwidth 10.2 Gbps Ports & Interfaces...
