- Page 1 HD-TVI/AHD/HDCVI/CVBS Extension Series User Manual Model : HD401F-5M 5MP HD-TVI/AHD/HDCVI/CVBS with RS485 Fiber Optic Extender HD401FT-5M HD401FR-5M Smart Cabling & Transmission Corp. Rev, A...
-
Page 2: Installation View

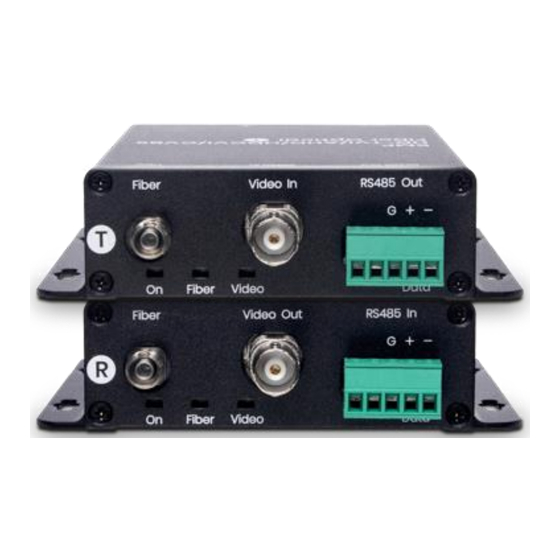

HD401F-5M Introduction HD401F-5M is coaxial to fiber optic media converter that can send uncompressed 5MP HD-TVI/ AHD/ HDCVI/ CVBS and RS485 signal for extra-long distance. The product is a perfect solution for CCTV security system to send camera video to remote DVR for recording. - Page 3 User Manual HD401F-5M Resolution Pixels Frame Rate 1MP (1280 x 720) 30/50 fps 1.2MP (1280 x 960) 30 fps 2MP (1920 x 1080) 25 fps 3MP (2408 x 1536) 18 fps 4MP (2560 x 1440) 14 fps 5MP (2560 x 1920)
- Page 4 User Manual HD401F-5M Interface/ Indication Description Power Jack To connect a DC5V 1A power adapter Grounding To connect a wire to the earth Description LED Indication LED Name LED Color Description Green ON Power On Fiber Green ON Fiber optic cable linked...
-
Page 5: Package Included
User Manual HD401F-5M Package Included Item Amount HD401F4T-5M (Tx) HD401F4R-5M (Rx) DC 5V1A Power Adapter Screw Screw Plug Rubber Pads Specification ITEM NO. HD401FT-5M HD401FR-5M Video Format HD-TVI/ AHD/ HDCVI/ CVBS Max. Video Resolution 5MP (2560 x 1920) @11fps Max. Distance...
