- Page 1 IP/ PoE Extender User Manual Model : IP09CK Ethernet over Coaxial Extender Smart Cabling & Transmission Corp. V1.0_191128M...
- Page 2 User Manual IP09CK Introduction IP09C is an IP extender that can use a single coaxial cable to send TCP/IP signal to a remote IP-enabled device, with transmission distance up to 800M and bandwidth up to 100Mbps. Furthermore, since IP09C can send IP signal over a coaxial cable, you can change your old analog cameras to IP ones without replacing existing cables, which saves a plenty of labor and cost.
-
Page 3: Installation View

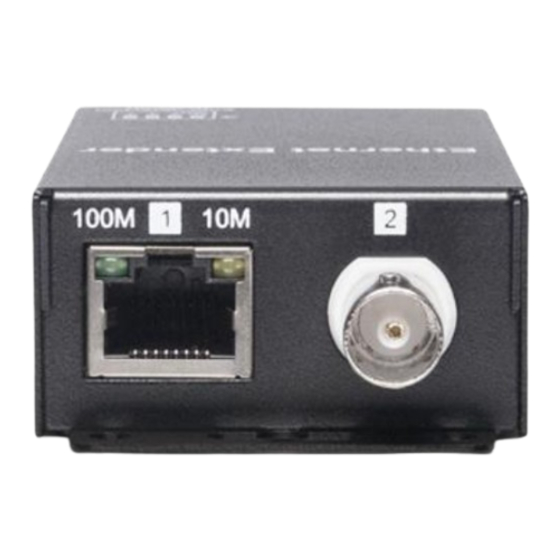

User Manual IP09CK Installation view 1) Point to Point Transmission (2) Extra Long Extension by connecting with IP09 (3)Long Distance for Multiple cameras transmission... - Page 4 User Manual IP09CK Panel Review Interface Function RJ45 Connector Port 1；To connect networking devices or another IP09 (Refer to Description 1,2,3) BNC Connector Port 2；To connect the other endpoint of IP09C (Refer to Description 1,2) RJ45 LED To indicate the network connection status...
- Page 5 User Manual IP09CK RJ45 Pinou (PIN TIA/EIA-568B) Wire Color Orange-white Orange Green-white Blue Blue-white Green Brown-white Brown RJ45 LED Date Rate Light On Light Off Light Blinking 100Mbs Enable Disable Data Transferring 10Mbps Enable Disable Data Transferring Power LED Indication...
- Page 6 Long Distance 100Mbps 100BASE-T1 Long Distance 10Mbps 100BASE-TX Full Duplex 100BASE-TX Half Duplex 10BASE-T Full Duplex 7 (Lowest) 10BASE-T Half Duplex IP09CK Package Include 2 x IP09C 2 x DC12V 500mA Power Adapter 4 x Screw 4 x Screw Plug...
-
Page 7: Specification
User Manual IP09CK Specification ITEM NO. IP09C Support IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3bw 100BASE-T1 Ethernet Compliance IEEE 802.3 Nway Auto-Negotiation IEEE 802.3x Full Duplex Operation And Flow Control IEEE 802.3az Energy Efficient Ethernet Network Bandwidth...
