- Page 1 USB/Keyboard Mouse Extender Series User Manual Model : UE03H USB 3.2 Gen1 CAT6a Extender 100m...
- Page 2 UE03H Introduction UE03H is a USB 3.2 Gen1 extender designed to carry USB signals using CAT6a/7 Ethernet cable. It is totally backward compatible with USB 2.0 & USB 1.x devices. It is perfect for multiple applications including devices such as USB cameras, touch panels, and any other USB devices.
- Page 3 User Manual UE03H USB Extension for Security/Monitoring USB Extension for Video Conferencing USB Extension for Video Capture USB Extension using DisplayLink...

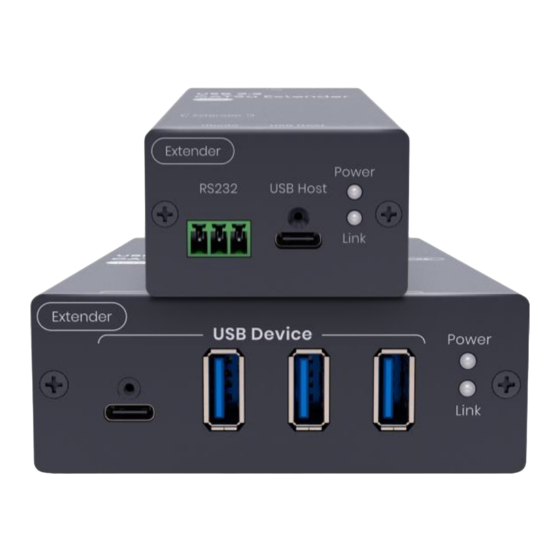

- Page 4 User Manual UE03H Panel View UE03HT Interface Description HDBaseT To connect to UE03HR To connect to RS232-command-controllable device RS232 (needs Terminal Block to RS232) USB Type-C To connect to USB 3.2 Gen1 source Power/Link LED Refer to LED Indicator...
- Page 5 User Manual UE03H UE03HR Interface Description DC Jack To plug in DC 12V power adapter Console To update FW (needs 3.5mm jack cable to UART) To connect to RS232-command-controllable device RS232 (needs Terminal Block to RS232) HDBaseT To connect to UE03HT USB Type-C/Type-A To connect to USB device, compatible with USB 3.2 Gen1 / 2.0 / 1.1 / 1.0...
- Page 6 User Manual UE03H LED Indication Interface LED Color Status Power On Power (Green) Power Off RJ45 Linked Link (Blue) RJ45 Unlinked RS232 Pin Define Transmission Distance See Caution, point 6 Cable Type Transmission Distance CAT6a 100m 83G02HD105 USB Read & Write Speed Using CAT6a cables and CrystalDiskMark software, testing the read and write speed of USB flash drives.
- Page 7 User Manual UE03H Caution This product is designed for indoor applications. If it is desired for outdoor use, please install additional equipment for waterproof protection and surge protectors to prevent damages caused by lighting. Do not put anything on the power and system cables, place them where they cannot be stepped on.
-
Page 8: Operation
User Manual UE03H Technical Specification UE03H UE03HT UE03HR Compliance USB 3.2 Gen1 USB 2.0 Standard USB 1.1 USB 1.0 Max. Transmission 100m over CAT6a/7 Distance Data Rate USB 3.2 Gen1 up to 5Gbps bidirectional Ports & Interfaces 3 x USB Type-A... -
Page 9: Installation
User Manual UE03H Installation Installed on Wall Step 1 Same way as “Installed on a Platform”, but need to put screw plugs into the pilot hole before inserting the screws (leave 2mm space from the platform) - Page 10 User Manual UE03H Installed on a DIN-rail Step 1 Use machine screws to fix a DIN-rail mounting plat on the side of your product Step 2 Install your product on a DIN-rail as following instruction Installed on a Rack Step 1 Lock machine screws in the rack...
- Page 11 User Manual UE03H Step 3 Push the products to the other side of the rack...
- Page 12 User Manual UE03H Step 4 Install the rack in a cabinet...
