SC&T DP02U User Manual page 4

LED Indication
Color Status
GREEN ON
ON
BLUE
Flash
Power Saving Mode
No video displaying or no connecting with any devices, DP02U will automatically activate Power Saving
Mode to save power. When power saving mode enabled, RS232 and USB transmission are not able to
function.

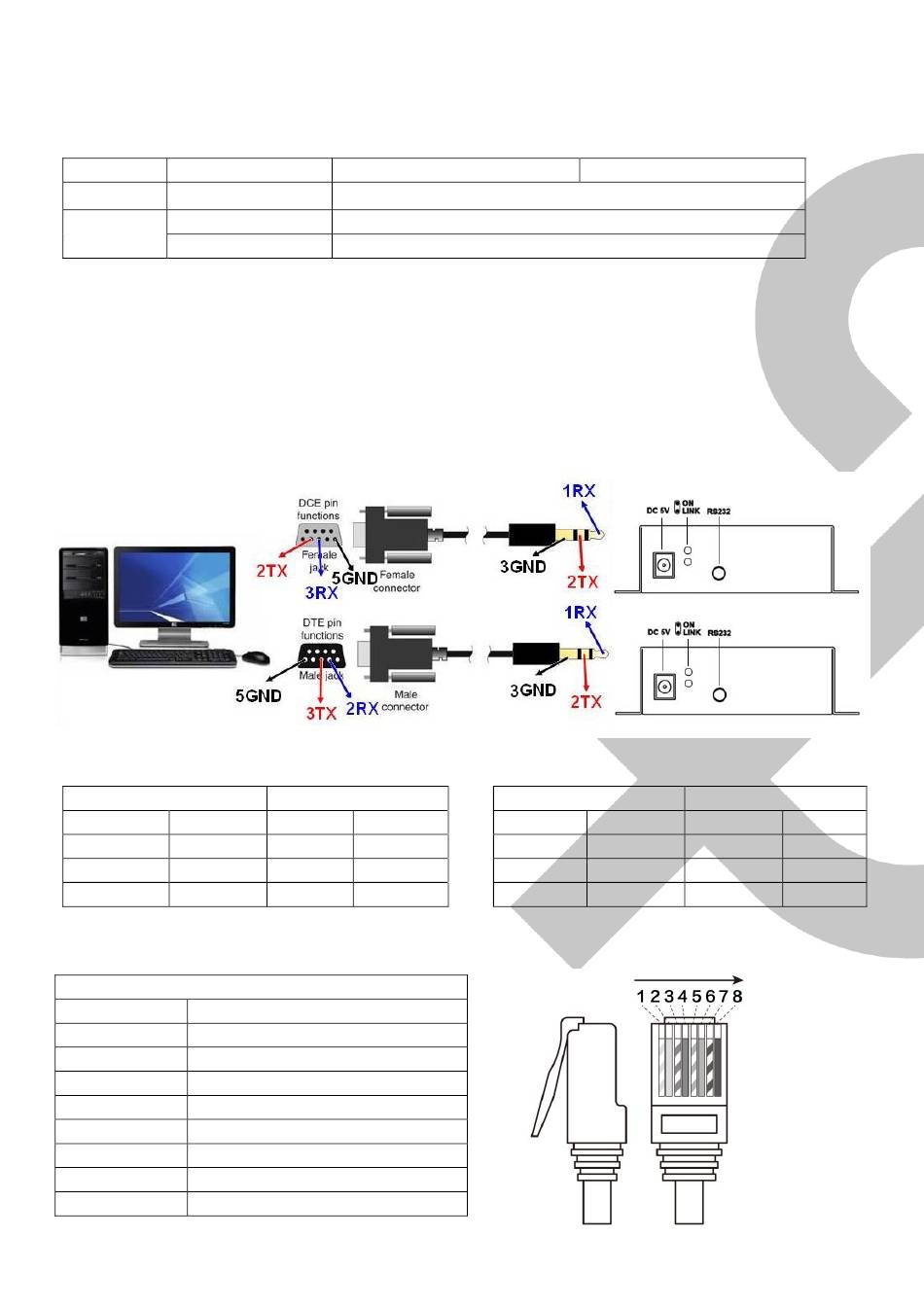

RS232 Define
DB9(F)/3.5mm STEREO PHONE JACK
RS232
Footprint Define
Pin 2 TX
Pin 3 RX
Pin 5 GND
RJ45 Pinout
(PIN TIA/EIA-568B)
PIN Wire Color
1 Orange-white
2 Orange
3 Green-white
4 Blue
5 Blue-white
6 Green
7 Brown-white
8 Brown
3
DP02UT
DB9(F)/3.5mm STEREO PHONE JACK
DB9(M)/3.5mm STEREO PHONE JACK
3.5 mm Phone Jack
Footprint Define
Pin 1 RX
Pin 2 TX
Pin 3 GND
DP02UR
Power on
Linked
Power Saving Mode
DP02UT
DP02UR
DB9(M)/3.5mm STEREO PHONE JACK
RS232
Footprint Define
Pin 2 RX
Pin 3 TX
Pin 5 GND
User Manual
DP02U
3.5 mm Phone Jack
Footprint Define
Pin 1 RX
Pin 2 TX
Pin 3 GND
