7. Set the TAM value by pressing the
8. Press the ACTIVATE button to turn on the ambient temperature compensation
function. The Tamb icon will be displayed indicating that it is active. (Pressing
ACTIVATE again turns off the function.)
9. Pull trigger and reset the emissivity to the proper value for the target. You can
now take the target's temperature using normal procedures. The current tempera-
ture and all computed values, as well as the analog and digital outputs, will now
be based on the compensated measurement.
Note: TAM only affects readings in the RUN loop; LOG loop readings are not affected.

2.4.7.2 SETUP Values for LOG

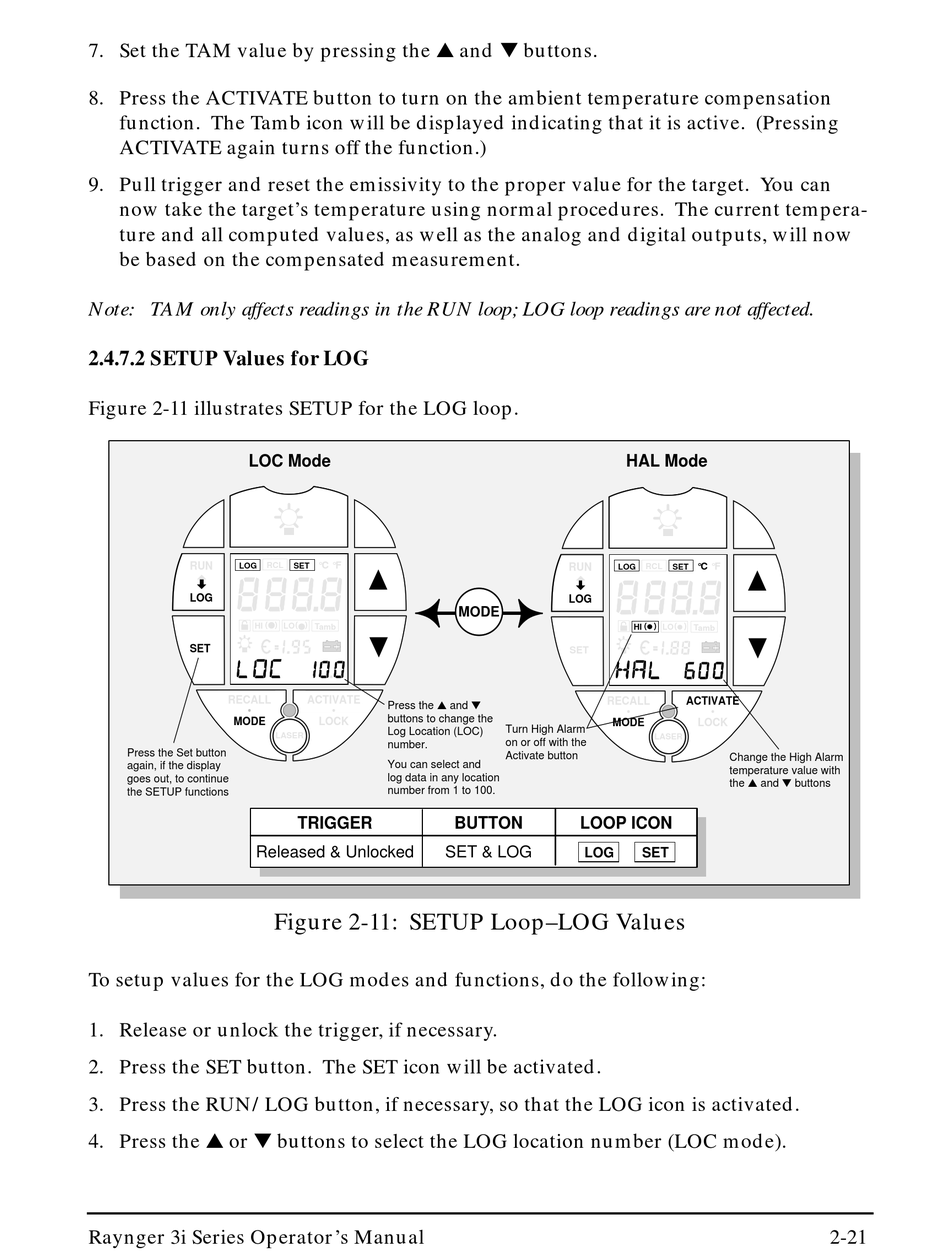

Figure 2-11 illustrates SETUP for the LOG loop.
LOC Mode
RUN
RUN LOG RCL
LOG LOG
HI ( ) LO ( ) T amb
SET
RECALL
MODE
• •
RECALL
MODE
Press the Set button
again, if the display
goes out, to continue
the SETUP functions
Released & Unlocked
To setup values for the LOG modes and functions, do the following:
1. Release or unlock the trigger, if necessary.
2. Press the SET button. The SET icon will be activated.

3. Press the RUN/LOG button, if necessary, so that the LOG icon is activated.

4. Press the or
Raynger 3i Series Operator's Manual
°C °F
SET
ACTIVATE
ACTIVATE
Press the and
• •
buttons to change the
LOCK
LOCK
Log Location (LOC)
LASER
number.
LASER
You can select and
log data in any location
number from 1 to 100.
TRIGGER
SET & LOG
Figure 2-11: SETUP Loop–LOG Values
buttons to select the LOG location number (LOC mode).
and buttons.
HAL Mode
RUN
RUN LOG
LOG LOG
MODE
SET
RECALL
MODE
• •
RECALL
MODE
Turn High Alarm
on or off with the
Activate button
BUTTON LOOP ICON
LOG
°C °F
RCL SET
HI ( ) LO ( ) T amb
ACTIVATE
ACTIVATE
• •
LOCK
LOCK
LASER
LASER
Change the High Alarm
temperature value with
the and buttons
SET
