2.4.4 RUN Loop–To Measure Temperature

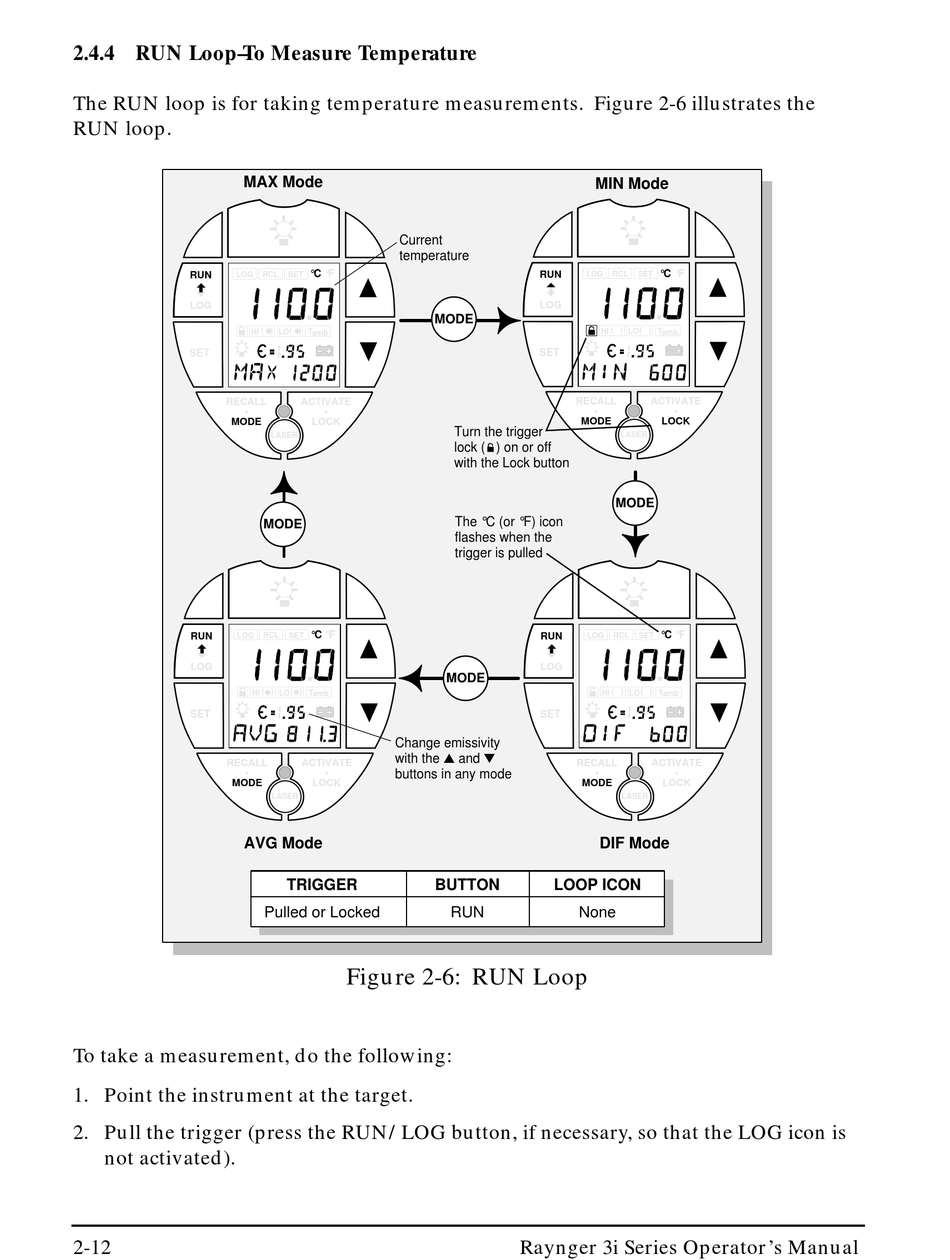

The RUN loop is for taking temperature measurements. Figure 2-6 illustrates the
RUN loop.
MAX Mode
RUN RUN
LOG
LOG LOG
HI ( ) LO ( ) T amb
SET
RECALL
MODE
•
•
MODE
RECALL
RUN RUN
LOG
LOG LOG
HI ( ) LO ( ) T amb
SET
RECALL MODE
•
•
MODE
RECALL
AVG Mode
To take a measurement, do the following:
1. Point the instrument at the target.
2. Pull the trigger (press the RUN/LOG button, if necessary, so that the LOG icon is
not activated).
