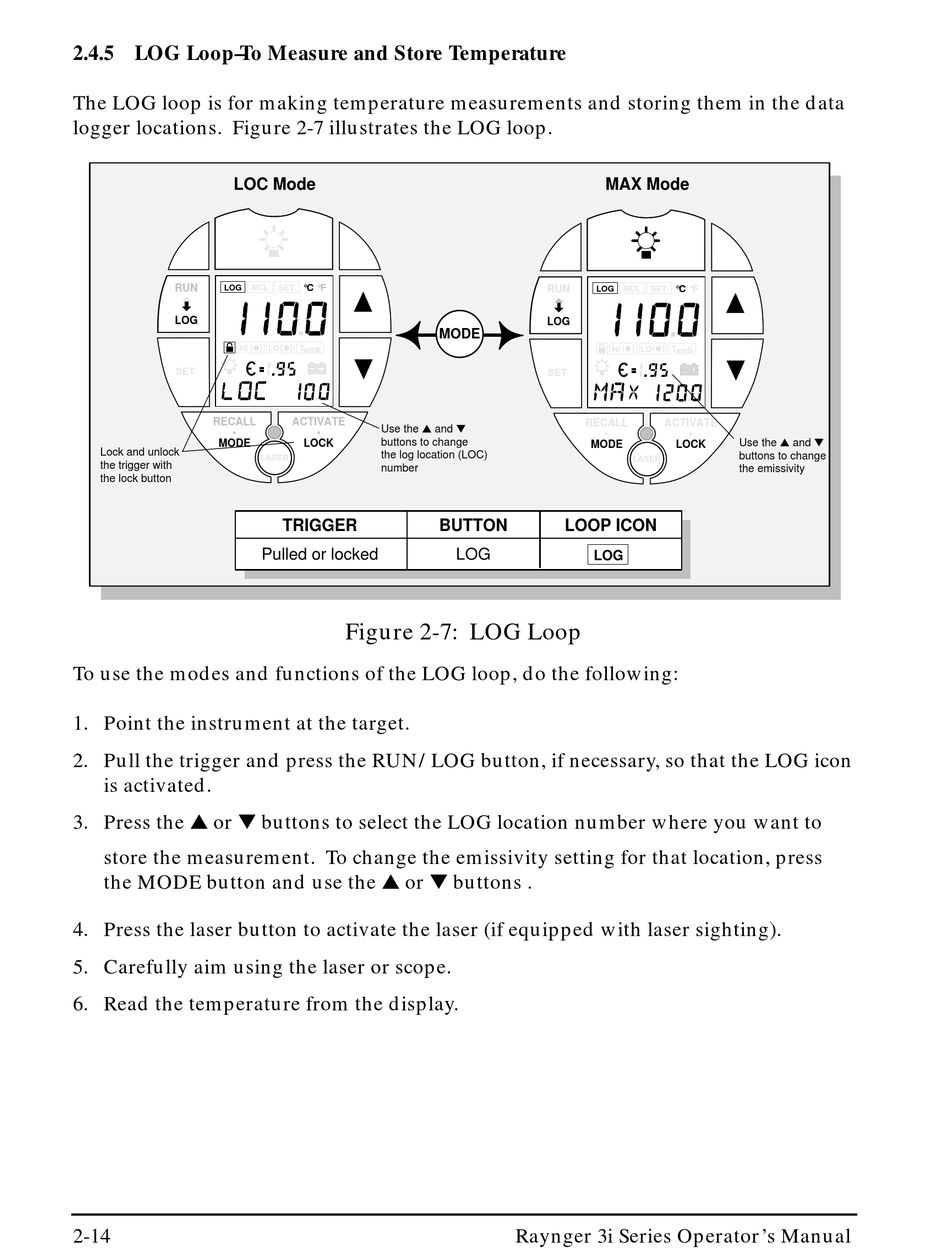

2.4.5 LOG Loop–To Measure and Store Temperature
The LOG loop is for making temperature measurements and storing them in the data
logger locations. Figure 2-7 illustrates the LOG loop.
LOC Mode
RUN
RUN LOG
LOG LOG
HI ( ) LO ( ) T amb
SET
RECALL
MODE
• •
RECALL
MODE
Lock and unlock
the trigger with
the lock button
To use the modes and functions of the LOG loop, do the following:
1. Point the instrument at the target.
2. Pull the trigger and press the RUN/LOG button, if necessary, so that the LOG icon
is activated.
3. Press the or
store the measurement. To change the emissivity setting for that location, press
the MODE button and use the
4. Press the laser button to activate the laser (if equipped with laser sighting).
5. Carefully aim using the laser or scope.
6. Read the temperature from the display.
2-14
°C °F
RCL SET
ACTIVATE
ACTIVATE
Use the
• •
buttons to change
LOCK
LOCK
the log location (LOC)
LASER
number
LASER
TRIGGER
Pulled or locked
Figure 2-7: LOG Loop
buttons to select the LOG location number where you want to
or
MAX Mode
RUN RUN LOG
LOG LOG
MODE
HI ( ) LO ( ) T amb
SET
RECALL
MODE
and
• •
RECALL
MODE
BUTTON LOOP ICON
LOG
LOG
buttons .
Raynger 3i Series Operator's Manual
°C °F
RCL SET
ACTIVATE
ACTIVATE
• •
Use the and
LOCK
LOCK
buttons to change
LASER
the emissivity
LASER
