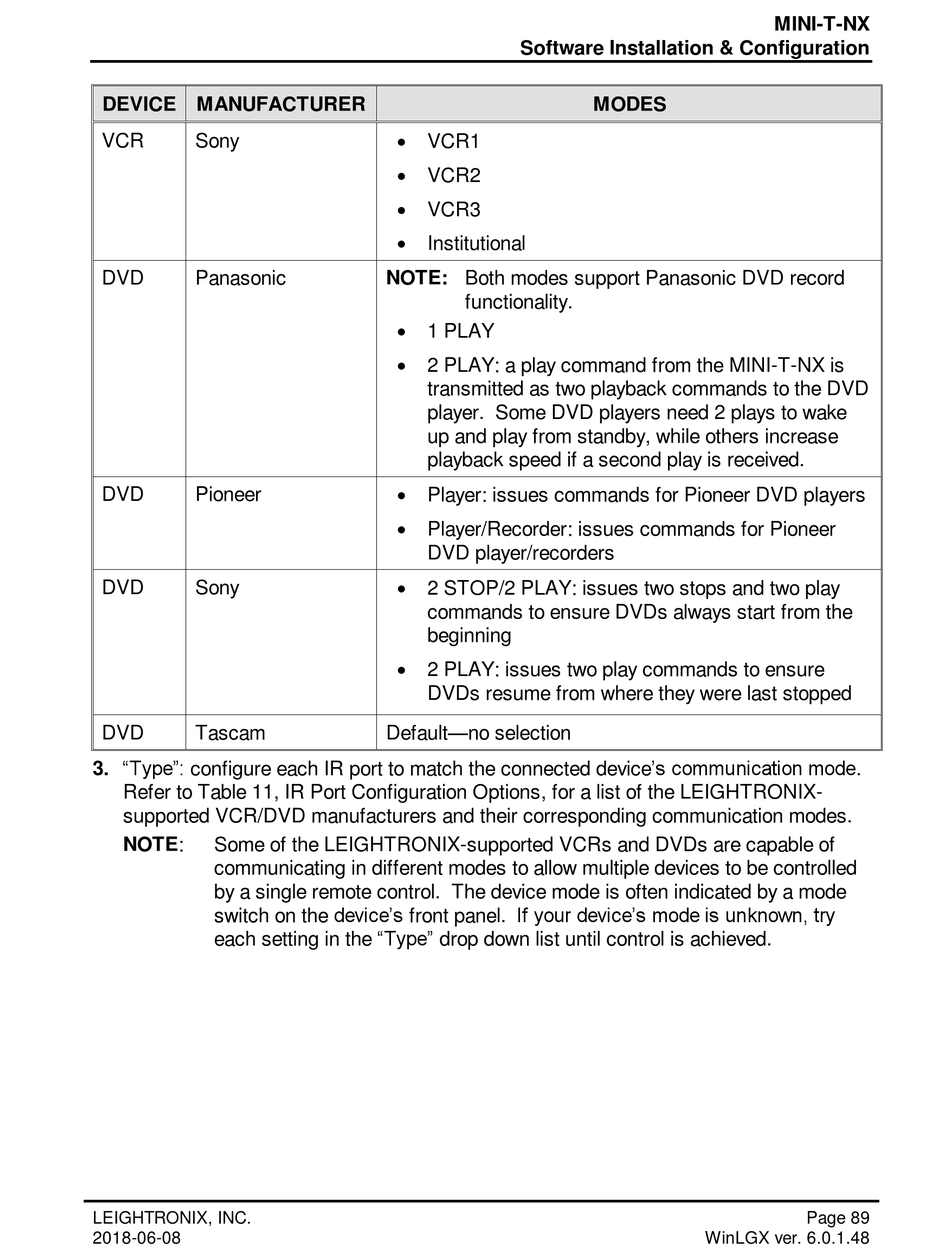

Leightronix MINI-T-NX Manual page 91

DEVICE MANUFACTURER
VCR Sony
DVD Panasonic
DVD Pioneer
DVD Sony
DVD Tascam
3. "Type": configure each IR port to match the connected device's communication mode.
Refer to Table 11, IR Port Configuration Options, for a list of the LEIGHTRONIX-
supported VCR/DVD manufacturers and their corresponding communication modes.
NOTE: Some of the LEIGHTRONIX-supported VCRs and DVDs are capable of
communicating in different modes to allow multiple devices to be controlled
by a single remote control. The device mode is often indicated by a mode
switch on the device's front panel. If your device's mode is unknown, try
each setting in the "Type" drop down list until control is achieved.
LEIGHTRONIX, INC.
2018-06-08
Software Installation & Configuration

VCR1

VCR2

VCR3

Institutional
NOTE: Both modes support Panasonic DVD record
functionality.

1 PLAY

2 PLAY: a play command from the MINI-T-NX is
transmitted as two playback commands to the DVD
player. Some DVD players need 2 plays to wake
up and play from standby, while others increase
playback speed if a second play is received.

Player: issues commands for Pioneer DVD players

Player/Recorder: issues commands for Pioneer
DVD player/recorders

2 STOP/2 PLAY: issues two stops and two play
commands to ensure DVDs always start from the
beginning

2 PLAY: issues two play commands to ensure
DVDs resume from where they were last stopped
Default—no selection
MODES
WinLGX ver. 6.0.1.48
MINI-T-NX
Page 89
