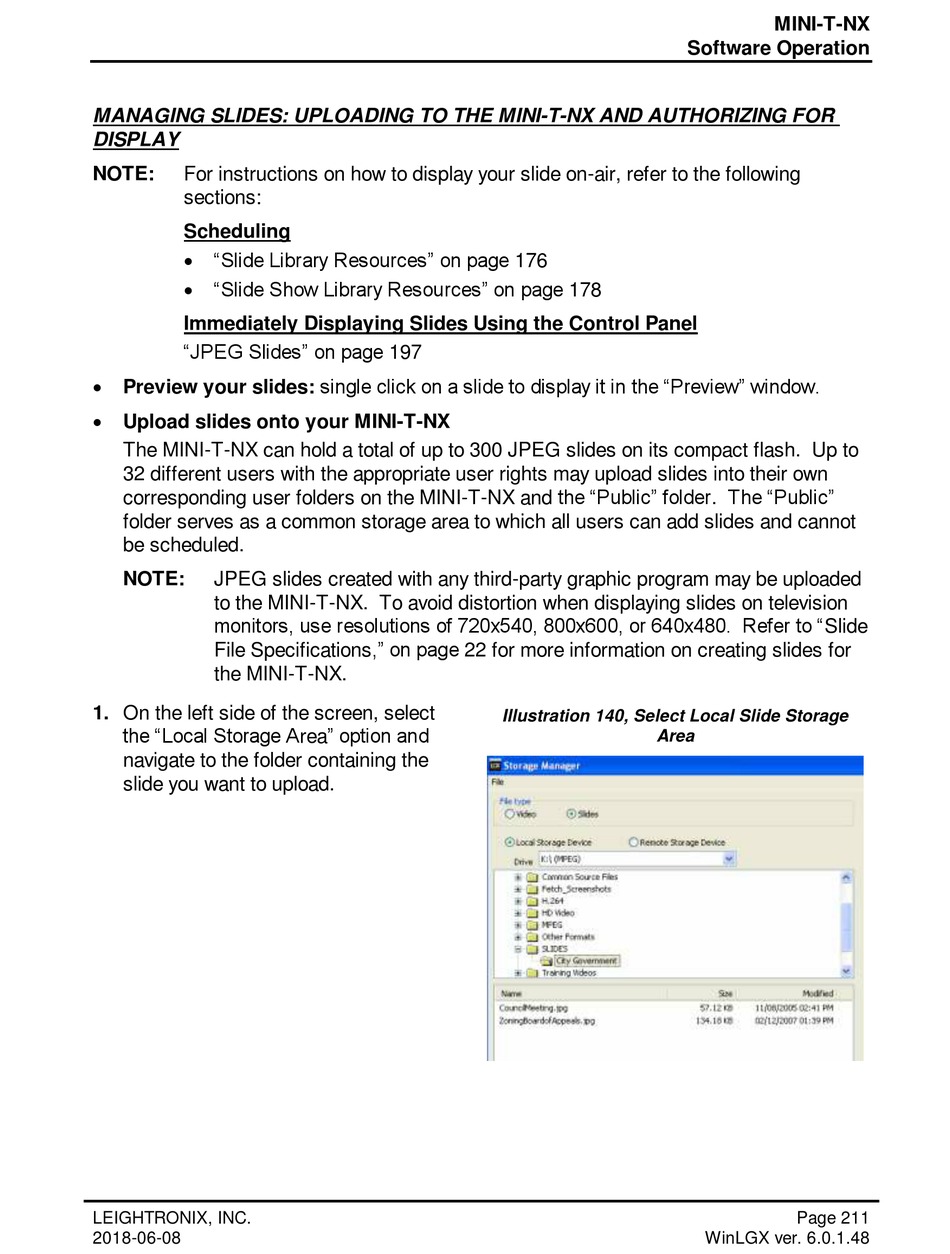

Managing Slides: Uploading To The Mini-T-Nx And Authorizing For Display; Illustration 140, Select Local Slide Storage Area - Leightronix MINI-T-NX Manual

MANAGING SLIDES: UPLOADING TO THE MINI-T-NX AND AUTHORIZING FOR
DISPLAY
NOTE: For instructions on how to display your slide on-air, refer to the following
sections:
Scheduling

"Slide Library Resources" on page 176

"Slide Show Library Resources" on page 178
Immediately Displaying Slides Using the Control Panel
"JPEG Slides" on page 197

Preview your slides: single click on a slide to display it in the "Preview" window.

Upload slides onto your MINI-T-NX
The MINI-T-NX can hold a total of up to 300 JPEG slides on its compact flash. Up to
32 different users with the appropriate user rights may upload slides into their own
corresponding user folders on the MINI-T-NX and the "Public" folder. The "Public"
folder serves as a common storage area to which all users can add slides and cannot
be scheduled.
NOTE: JPEG slides created with any third-party graphic program may be uploaded
to the MINI-T-NX. To avoid distortion when displaying slides on television
monitors, use resolutions of 720x540, 800x600, or 640x480. Refer to "Slide
File Specifications," on page 22 for more information on creating slides for
the MINI-T-NX.
1. On the left side of the screen, select
the "Local Storage Area" option and
navigate to the folder containing the
slide you want to upload.
LEIGHTRONIX, INC.
2018-06-08
Illustration 140, Select Local Slide Storage
Area
MINI-T-NX
Software Operation
Page 211
WinLGX ver. 6.0.1.48
