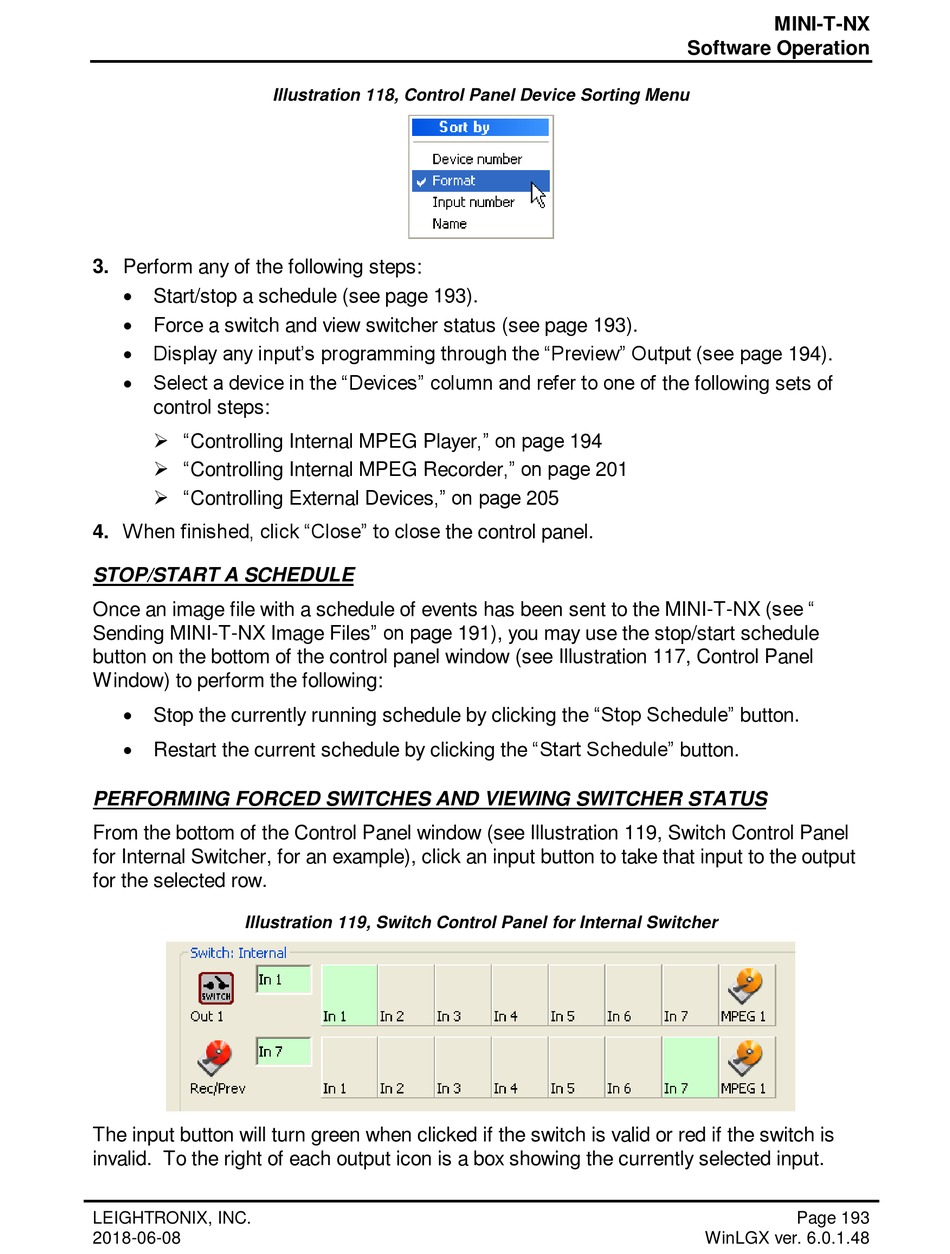

Stop/Start A Schedule; Performing Forced Switches And Viewing Switcher Status; Illustration 118, Control Panel Device Sorting Menu; Illustration 119, Switch Control Panel For Internal Switcher - Leightronix MINI-T-NX Manual

3. Perform any of the following steps:

Start/stop a schedule (see page 193).

Force a switch and view switcher status (see page 193).

Display any input's programming through the "Preview" Output (see page 194).

Select a device in the "Devices" column and refer to one of the following sets of
control steps:
 "Controlling Internal MPEG Player," on page 194
 "Controlling Internal MPEG Recorder," on page 201
 "Controlling External Devices," on page 205
4. When finished, click "Close" to close the control panel.

STOP/START A SCHEDULE

Once an image file with a schedule of events has been sent to the MINI-T-NX (see "
Sending MINI-T-NX Image Files" on page 191), you may use the stop/start schedule
button on the bottom of the control panel window (see Illustration 117, Control Panel
Window) to perform the following:

Stop the currently running schedule by clicking the "Stop Schedule" button.

Restart the current schedule by clicking the "Start Schedule" button.

PERFORMING FORCED SWITCHES AND VIEWING SWITCHER STATUS

From the bottom of the Control Panel window (see Illustration 119, Switch Control Panel
for Internal Switcher, for an example), click an input button to take that input to the output
for the selected row.

Illustration 119, Switch Control Panel for Internal Switcher

The input button will turn green when clicked if the switch is valid or red if the switch is
invalid. To the right of each output icon is a box showing the currently selected input.
