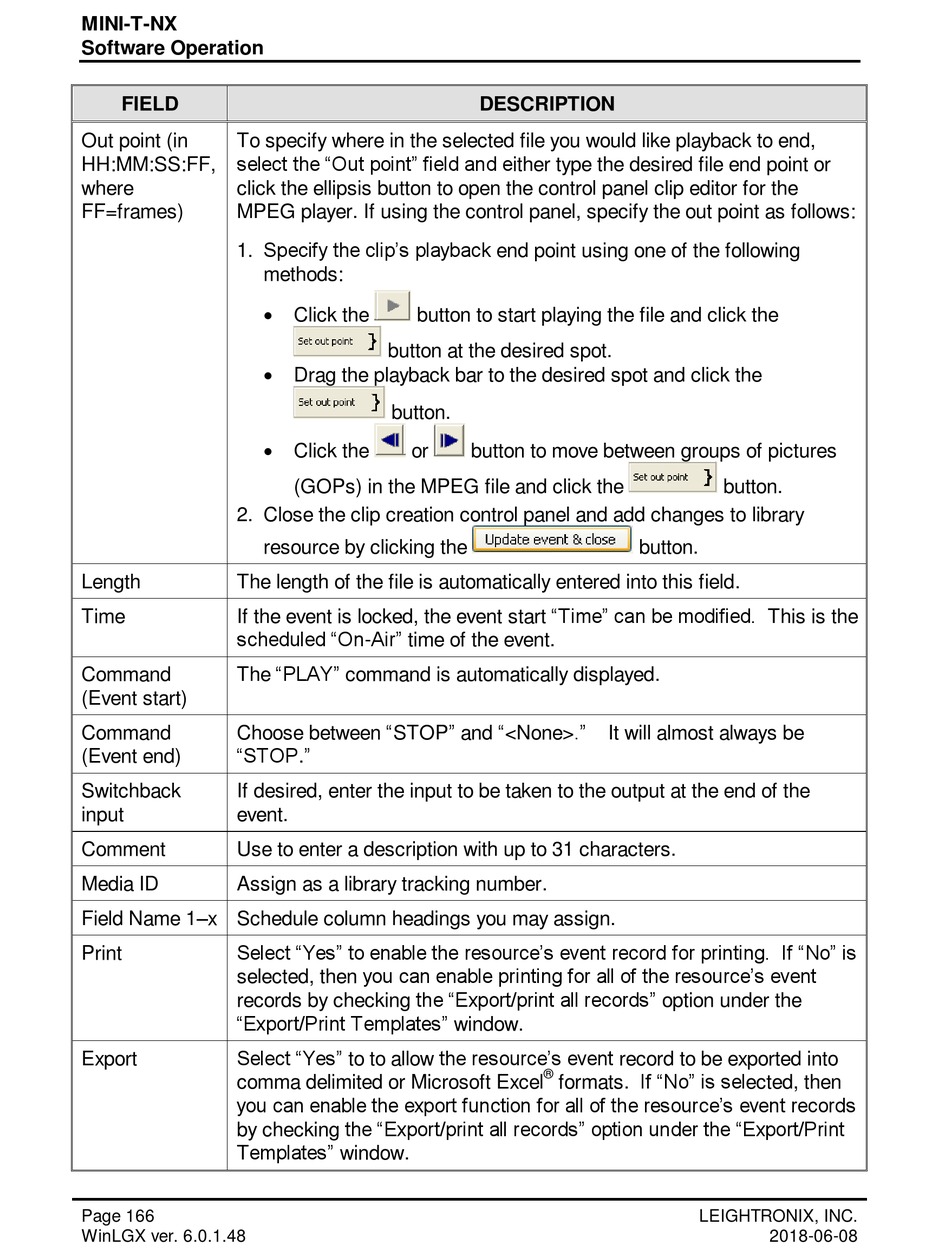

MINI-T-NX
Software Operation
FIELD
Out point (in
To specify where in the selected file you would like playback to end,
select the "Out point" field and either type the desired file end point or
HH:MM:SS:FF,
where
click the ellipsis button to open the control panel clip editor for the
FF=frames)
MPEG player. If using the control panel, specify the out point as follows:
1. Specify the clip's playback end point using one of the following
2. Close the clip creation control panel and add changes to library
Length
The length of the file is automatically entered into this field.
If the event is locked, the event start "Time" can be modified. This is the
Time
scheduled "On-Air" time of the event.
The "PLAY" command is automatically displayed.
Command
(Event start)
Choose between "STOP" and "<None>."
Command
"STOP."
(Event end)
Switchback
If desired, enter the input to be taken to the output at the end of the
input
event.
Comment
Use to enter a description with up to 31 characters.
Media ID
Assign as a library tracking number.
Field Name 1–x Schedule column headings you may assign.
Select "Yes" to enable the resource's event record for printing. If "No" is
Print
selected, then you can enable printing for all of the resource's event
records by checking the "Export/print all records" option under the
"Export/Print Templates" window.
Select "Yes" to to allow the resource's event record to be exported into
Export
comma delimited or Microsoft Excel
you can enable the export function for all of the resource's event records
by checking the "Export/print all records" option under the "Export/Print
Templates" window.
Page 166
WinLGX ver. 6.0.1.48
methods:
Click the
button to start playing the file and click the
button at the desired spot.
Drag the playback bar to the desired spot and click the
button.
Click the
or
(GOPs) in the MPEG file and click the
resource by clicking the
DESCRIPTION
button to move between groups of pictures
button.
It will almost always be
®
formats. If "No" is selected, then
button.
LEIGHTRONIX, INC.
2018-06-08
