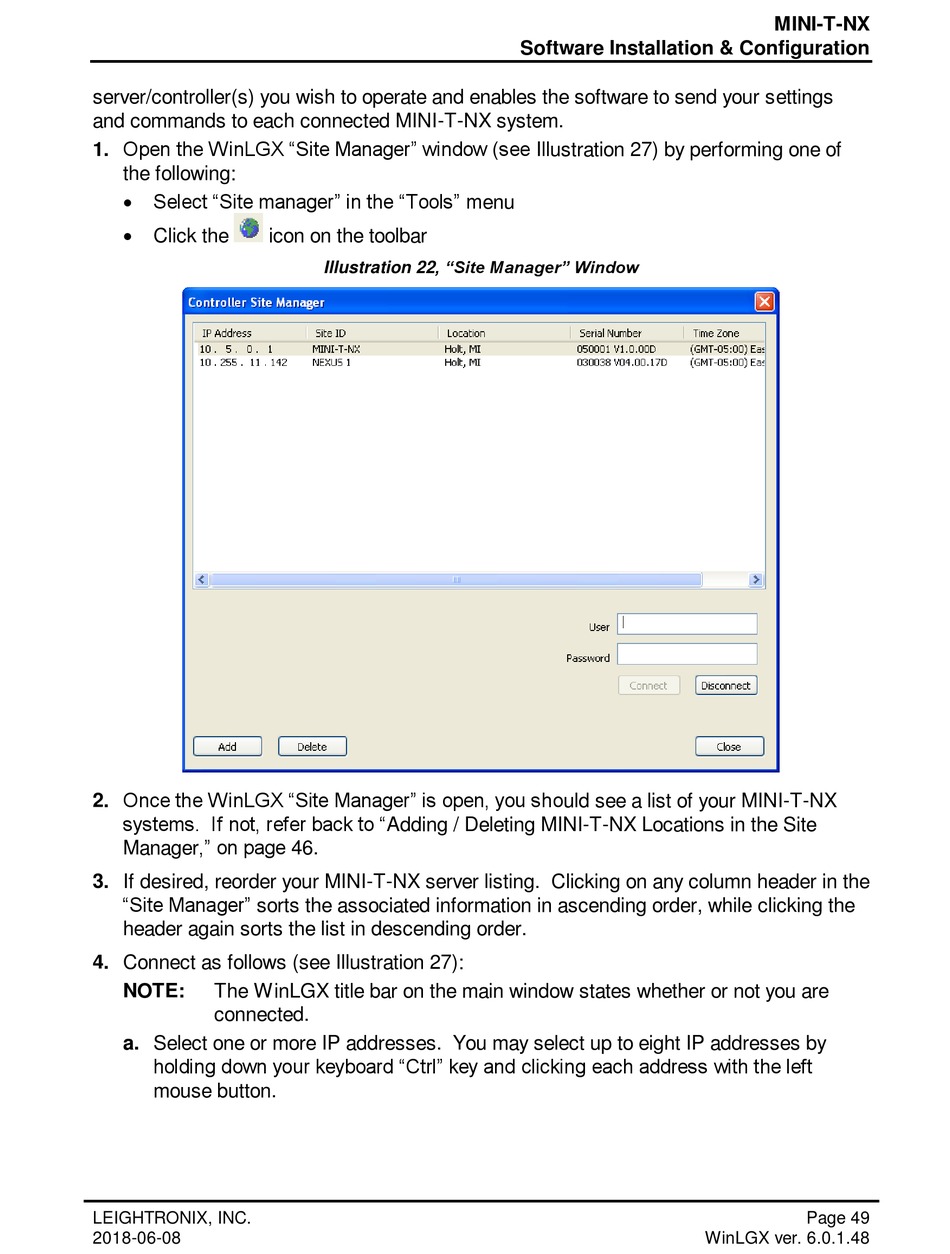

Illustration 22, "Site Manager" Window - Leightronix MINI-T-NX Manual

server/controller(s) you wish to operate and enables the software to send your settings
and commands to each connected MINI-T-NX system.
1. Open the WinLGX "Site Manager" window (see Illustration 27) by performing one of
the following:

Select "Site manager" in the "Tools" menu

Click the icon on the toolbar
2. Once the WinLGX "Site Manager" is open, you should see a list of your MINI-T-NX
systems. If not, refer back to "Adding / Deleting MINI-T-NX Locations in the Site
Manager," on page 46.
3. If desired, reorder your MINI-T-NX server listing. Clicking on any column header in the
"Site Manager" sorts the associated information in ascending order, while clicking the
header again sorts the list in descending order.
4. Connect as follows (see Illustration 27):
NOTE: The WinLGX title bar on the main window states whether or not you are
connected.
a. Select one or more IP addresses. You may select up to eight IP addresses by
holding down your keyboard "Ctrl" key and clicking each address with the left
mouse button.
LEIGHTRONIX, INC.
2018-06-08

Illustration 22, "Site Manager" Window

Software Installation & Configuration
MINI-T-NX
Page 49
WinLGX ver. 6.0.1.48
