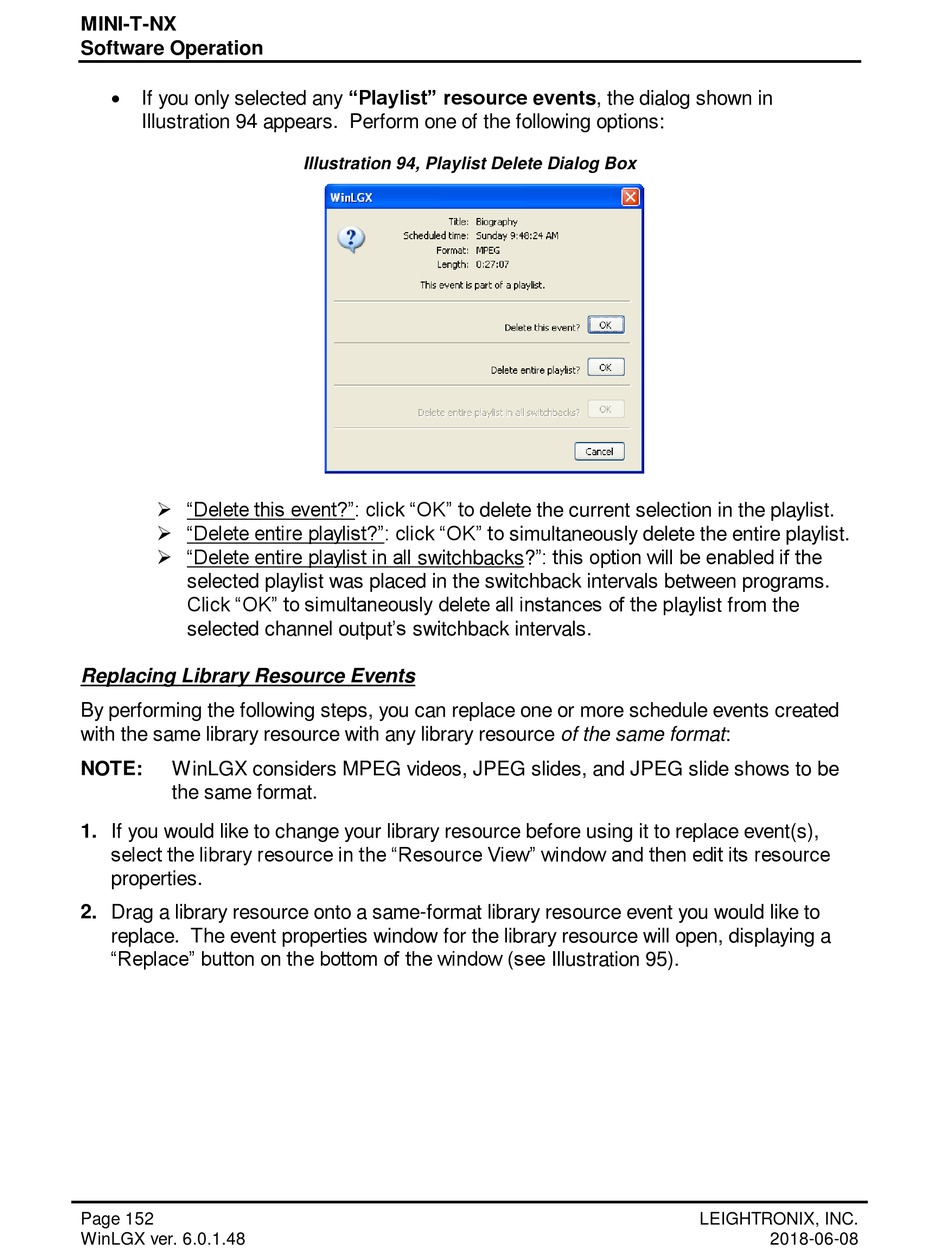

Replacing Library Resource Events; Illustration 94, Playlist Delete Dialog Box - Leightronix MINI-T-NX Manual

MINI-T-NX
Software Operation

If you only selected any "Playlist" resource events, the dialog shown in
Illustration 94 appears. Perform one of the following options:
 "Delete this event?": click "OK" to delete the current selection in the playlist.
 "Delete entire playlist?": click "OK" to simultaneously delete the entire playlist.
 "Delete entire playlist in all switchbacks?": this option will be enabled if the
selected playlist was placed in the switchback intervals between programs.
Click "OK" to simultaneously delete all instances of the playlist from the
selected channel output's switchback intervals.

Replacing Library Resource Events

By performing the following steps, you can replace one or more schedule events created
with the same library resource with any library resource of the same format:
NOTE: WinLGX considers MPEG videos, JPEG slides, and JPEG slide shows to be
the same format.
1. If you would like to change your library resource before using it to replace event(s),
select the library resource in the "Resource View" window and then edit its resource
properties.
2. Drag a library resource onto a same-format library resource event you would like to
replace. The event properties window for the library resource will open, displaying a
"Replace" button on the bottom of the window (see Illustration 95).
Page 152
WinLGX ver. 6.0.1.48

Illustration 94, Playlist Delete Dialog Box

LEIGHTRONIX, INC.
2018-06-08
