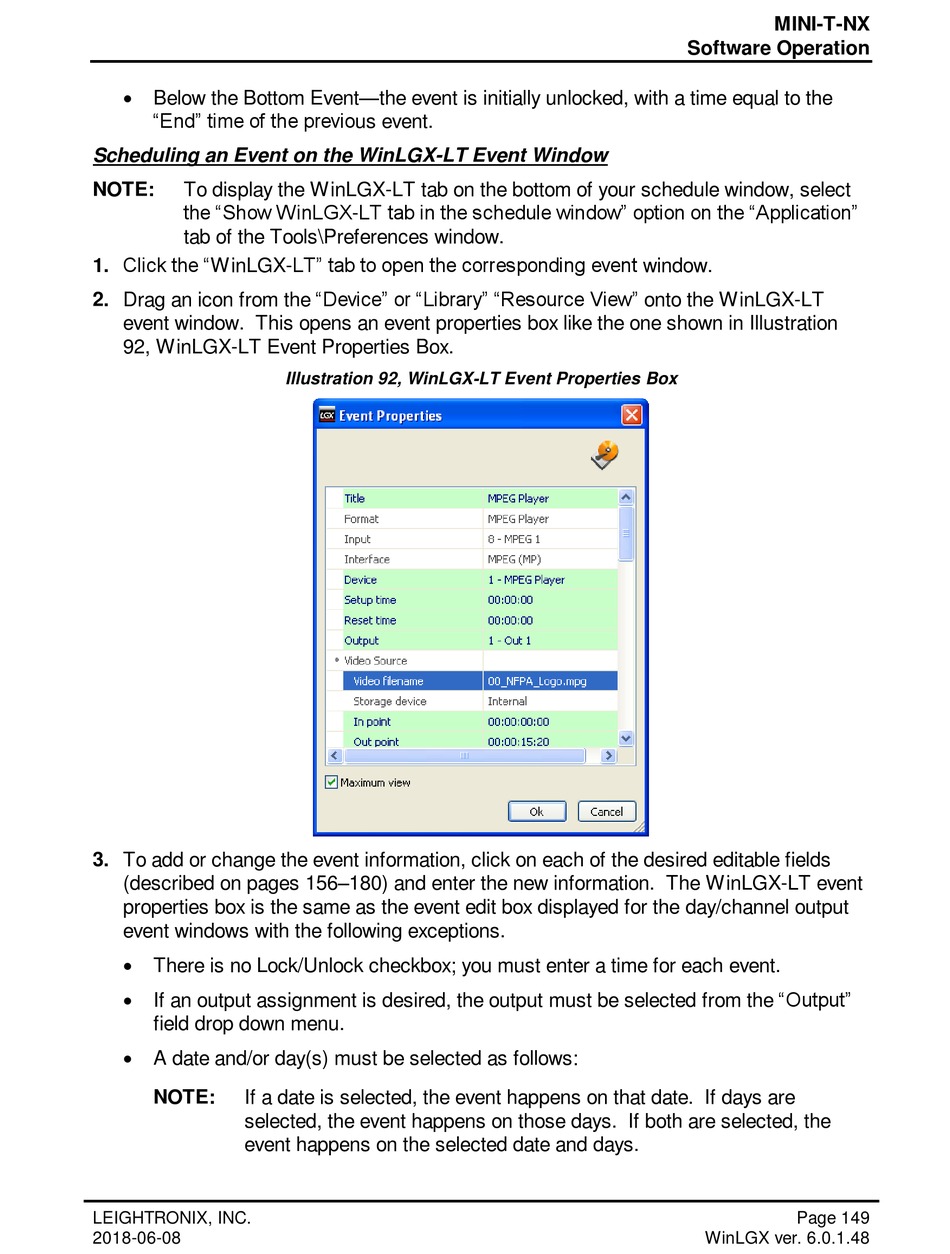

Scheduling An Event On The Winlgx-Lt Event Window; Illustration 92, Winlgx-Lt Event Properties Box - Leightronix MINI-T-NX Manual


Below the Bottom Event—the event is initially unlocked, with a time equal to the
"End" time of the previous event.

Scheduling an Event on the WinLGX-LT Event Window

NOTE: To display the WinLGX-LT tab on the bottom of your schedule window, select
the "Show WinLGX-LT tab in the schedule window" option on the "Application"
tab of the Tools\Preferences window.
1. Click the "WinLGX-LT" tab to open the corresponding event window.
2. Drag an icon from the "Device" or "Library" "Resource View" onto the WinLGX-LT
event window. This opens an event properties box like the one shown in Illustration
92, WinLGX-LT Event Properties Box.
3. To add or change the event information, click on each of the desired editable fields
(described on pages 156–180) and enter the new information. The WinLGX-LT event
properties box is the same as the event edit box displayed for the day/channel output
event windows with the following exceptions.

There is no Lock/Unlock checkbox; you must enter a time for each event.

If an output assignment is desired, the output must be selected from the "Output"
field drop down menu.

A date and/or day(s) must be selected as follows:
NOTE: If a date is selected, the event happens on that date. If days are
selected, the event happens on those days. If both are selected, the
event happens on the selected date and days.
LEIGHTRONIX, INC.
2018-06-08

Illustration 92, WinLGX-LT Event Properties Box
