CONFIGURING MINI-T-NX IR PORT PROPERTIES

Click on the "System Configuration" folder on the right side of the schedule editor window
to display the MINI-T-NX "System Configuration View" windows. Click on the "Internal IR
Interface" icon and complete the "Properties" fields for each MINI-T-NX IR port as follows
(see Illustration 53, MINI-T-NX "System Configuration View" IR Port Windows):

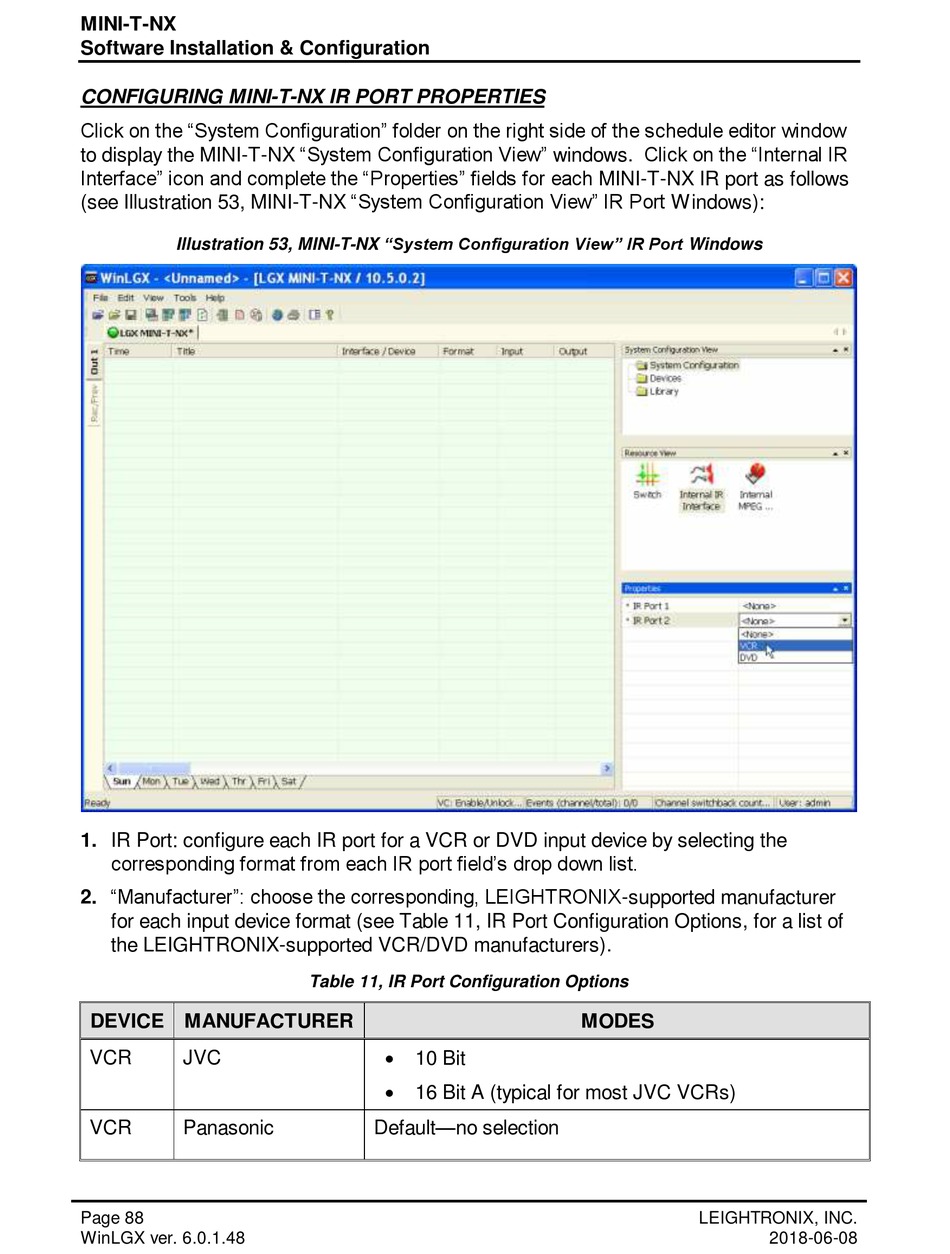

Illustration 53, MINI-T-NX "System Configuration View" IR Port Windows

1. IR Port: configure each IR port for a VCR or DVD input device by selecting the
corresponding format from each IR port field's drop down list.
2. "Manufacturer": choose the corresponding, LEIGHTRONIX-supported manufacturer
for each input device format (see Table 11, IR Port Configuration Options, for a list of
the LEIGHTRONIX-supported VCR/DVD manufacturers).
DEVICE MANUFACTURER
VCR JVC
VCR Panasonic
