3. Pinouts and Signal Descriptions

3.1.

Gigabit Ethernet Ports

There are two Gigabit Ethernet ports on the front panel. Please refer to the table below for the LAN port LED
behaviour.
LAN1/2 port LED behavior is as below:
Activity/Link LED
Status
Off
Blinking
On
Pinouts and Signal Descriptions

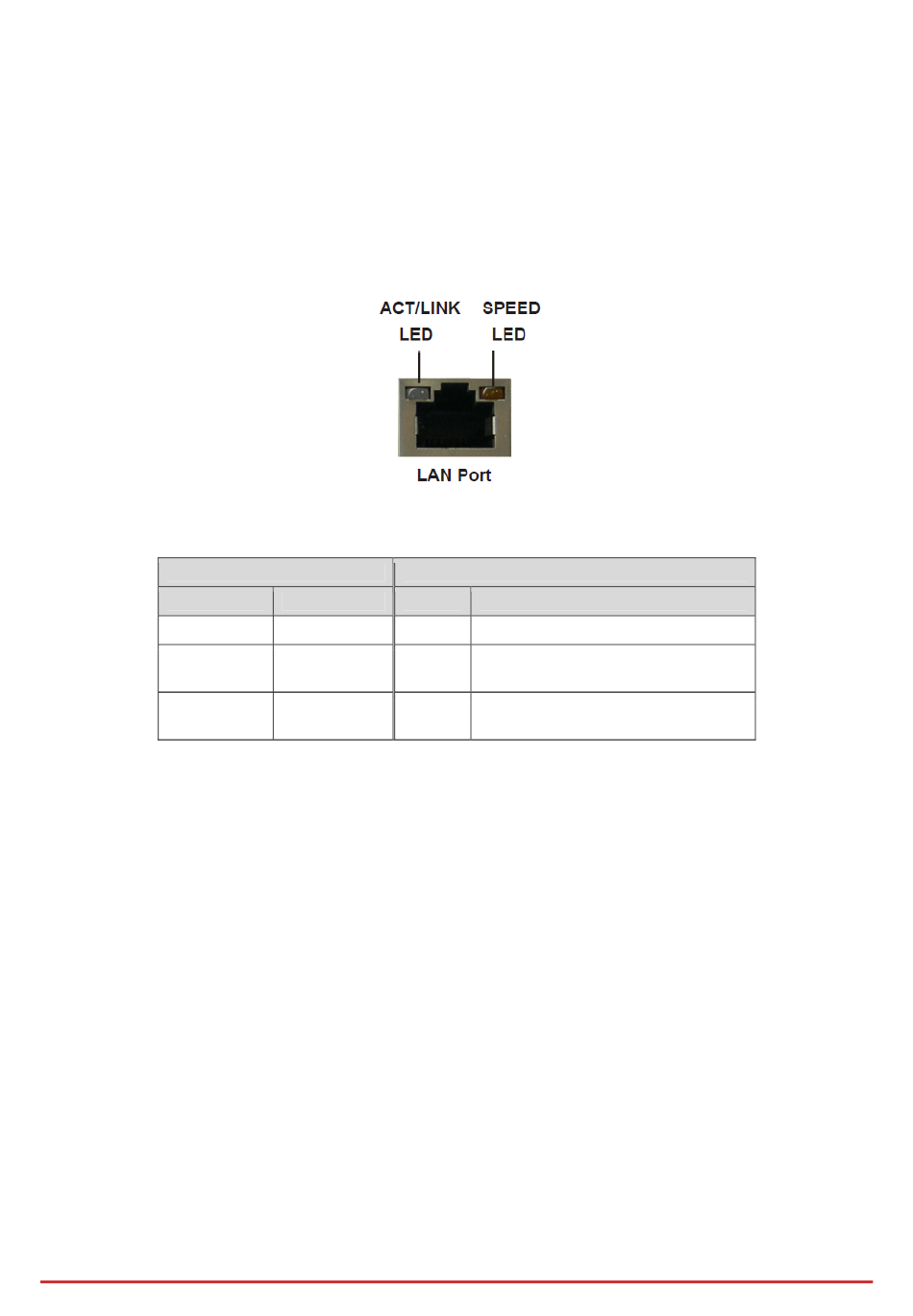

Figure 6: LAN Port LEDs
Description Status
No Link Off
Data Activity Orange
Link Green

Table 5: LAN Port LED Behaviour

Speed LED
Description
10 Mbps connection
LAN1: 100 Mbps connection
LAN2: 100 Mbps/1 Gbps connection
LAN1: 1 Gbps connection
LAN2: 2.5 Gbps connection
9
