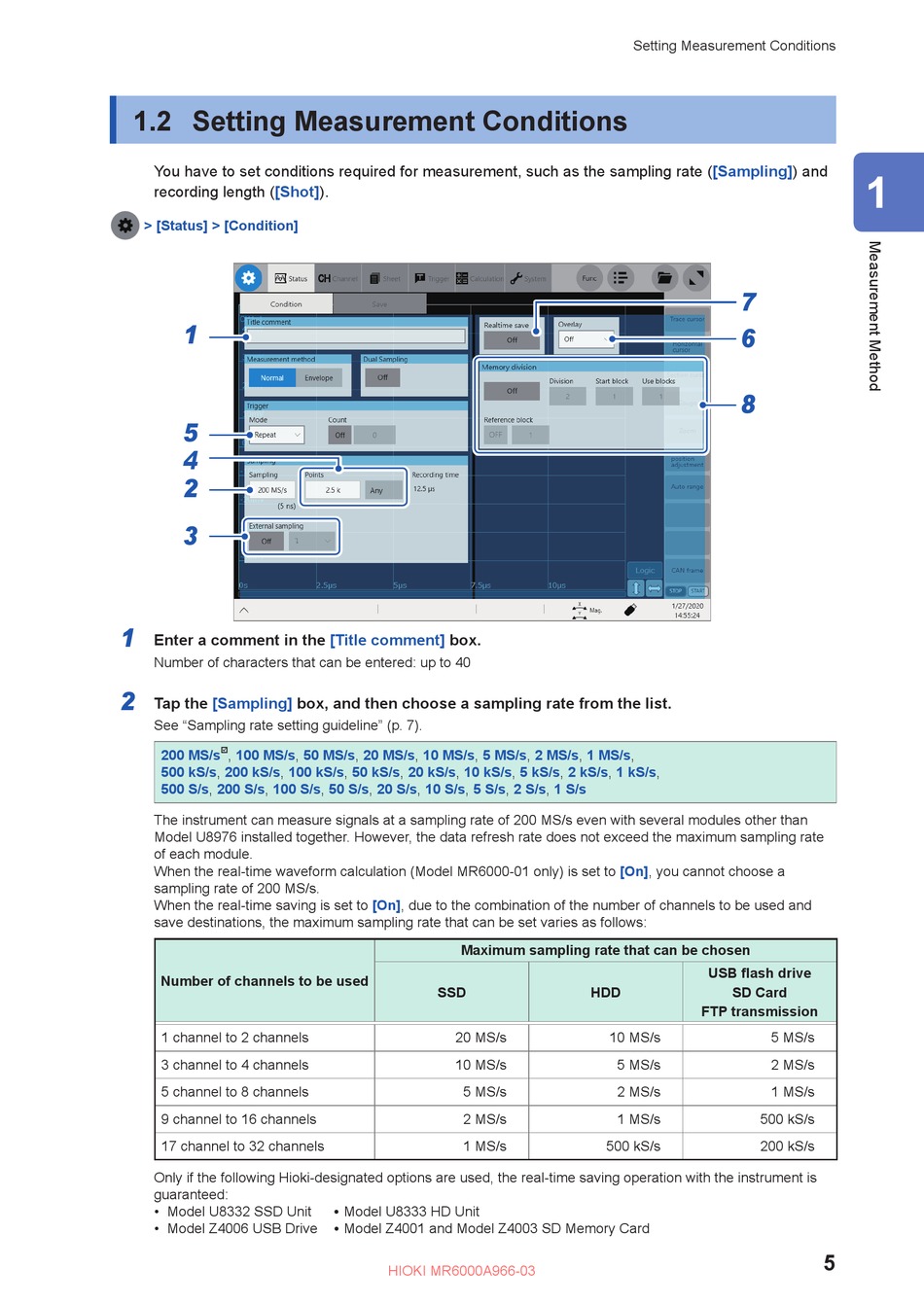

1.2 Setting Measurement Conditions

You have to set conditions required for measurement, such as the sampling rate ([Sampling]) and
recording length ([Shot]).
> [Status] > [Condition]
1
5
4
2
3
1
Enter a comment in the
Number of characters that can be entered: up to 40
2
Tap the [Sampling]
See "Sampling rate setting guideline" (p. 7).
200 MS/s  , 100 MS/s,
500 kS/s, 200 kS/s, 100
500 S/s, 200 S/s, 100
The instrument can measure signals at a sampling rate of 200 MS/s even with several modules other than
Model U8976 installed together. However, the data refresh rate does not exceed the maximum sampling rate
of each module.
When the real-time waveform calculation (Model MR6000-01 only) is set to [On], you cannot choose a
sampling rate of 200 MS/s.
When the real-time saving is set to [On], due to the combination of the number of channels to be used and
save destinations, the maximum sampling rate that can be set varies as follows:
Number of channels to be used
1 channel to 2 channels
3 channel to 4 channels
5 channel to 8 channels
9 channel to 16 channels
17 channel to 32 channels
Only if the following Hioki-designated options are used, the real-time saving operation with the instrument is
guaranteed:
• Model U8332 SSD Unit
• Model Z4006 USB Drive
[Title comment] box.
box, and then choose a sampling rate from the list.
50 MS/s, 20 MS/s, 10 MS/s,
kS/s, 50 kS/s, 20 kS/s, 10
S/s, 50 S/s, 20 S/s, 10 S/s,
Maximum sampling rate that can be chosen
SSD
20 MS/s
10 MS/s
5 MS/s
2 MS/s
1 MS/s
 Model U8333 HD Unit
 Model Z4001 and Model Z4003 SD Memory Card
HIOKI MR6000A966-03
Setting Measurement Conditions
5 MS/s, 2 MS/s, 1 MS/s,
kS/s, 5 kS/s, 2 kS/s, 1 kS/s,
5 S/s, 2 S/s, 1 S/s
HDD
10 MS/s
5 MS/s
2 MS/s
1 MS/s
500 kS/s
7
6
8
USB flash drive
SD Card
FTP transmission
5 MS/s
2 MS/s
1 MS/s
500 kS/s
200 kS/s
