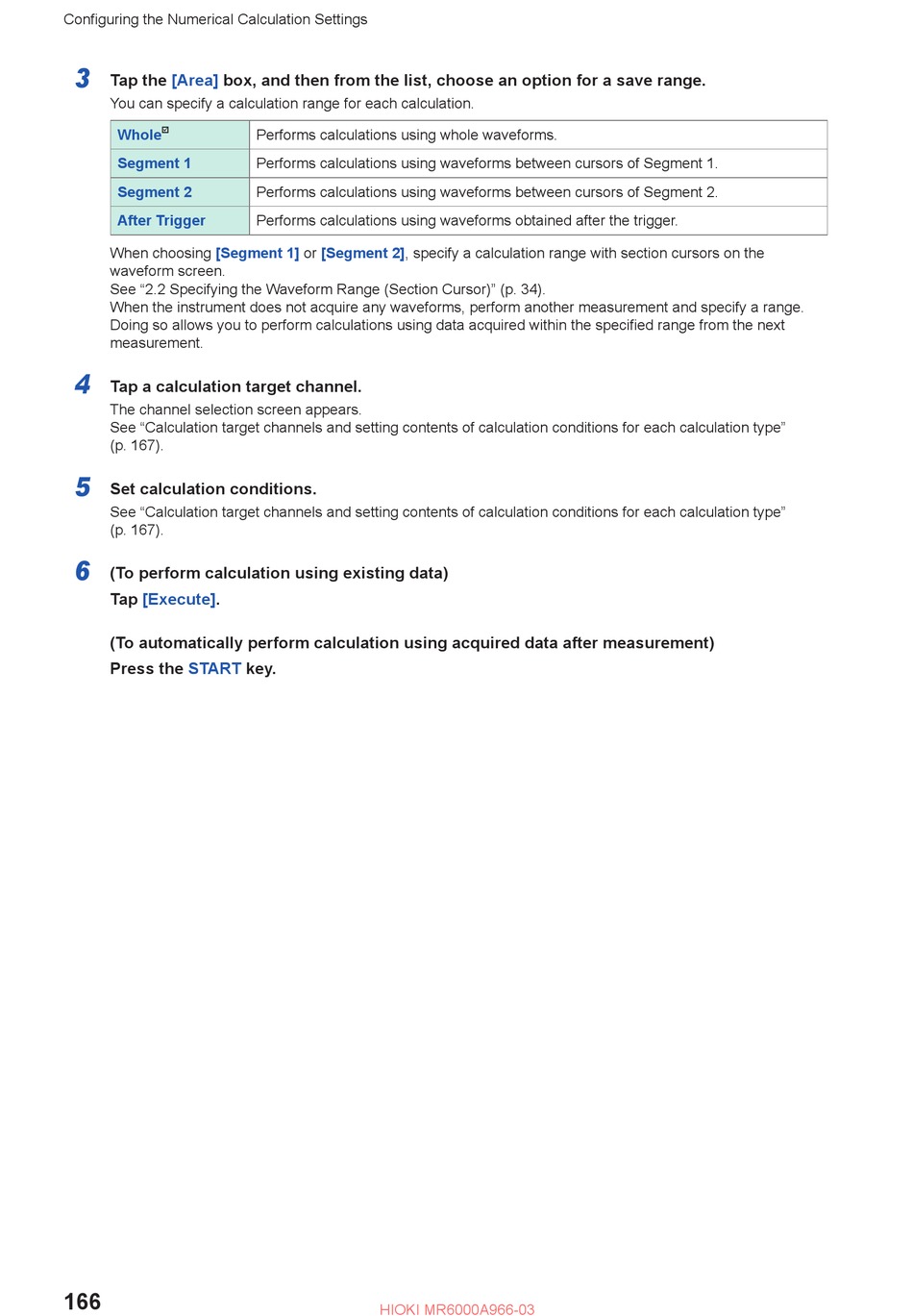

Configuring the Numerical Calculation Settings
3
Tap the [Area] box, and then from the list, choose an option for a save range.
You can specify a calculation range for each calculation.
Whole

Segment 1
Segment 2
After Trigger
[Segment 1]
When choosing
waveform screen.
See "2.2 Specifying the Waveform Range (Section Cursor)" (p. 34).
When the instrument does not acquire any waveforms, perform another measurement and specify a range.
Doing so allows you to perform calculations using data acquired within the specified range from the next
measurement.
4
Tap a calculation target channel.
The channel selection screen appears.
See "Calculation target channels and setting contents of calculation conditions for each calculation type"
(p. 167).
5
Set calculation conditions.
See "Calculation target channels and setting contents of calculation conditions for each calculation type"
(p. 167).
6
(To perform calculation using existing data)
Tap [Execute].
(To automatically perform calculation using acquired data after measurement)
Press the START
166
Performs calculations using whole waveforms.
Performs calculations using waveforms between cursors of Segment 1.
Performs calculations using waveforms between cursors of Segment 2.
Performs calculations using waveforms obtained after the trigger.
[Segment 2], specify a calculation range with section cursors on the
or
key.
