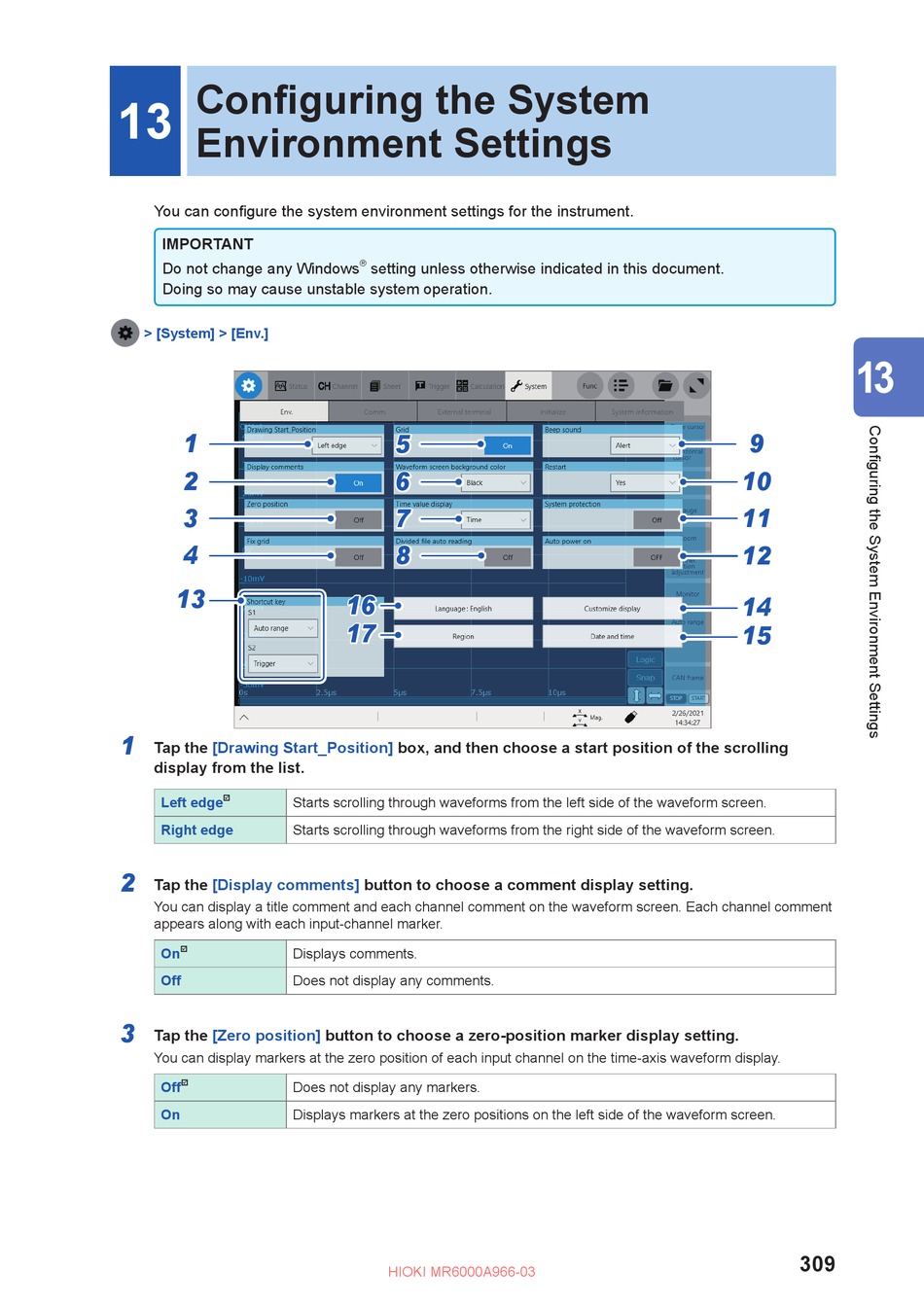

Configuring the System
13
Environment Settings
You can configure the system environment settings for the instrument.
IMPORTANT
Do not change any Windows
Doing so may cause unstable system operation.
> [System] > [Env.]
1
2
3
4
13
1
Tap the [Drawing Start_Position]
display from the list.
Left edge 
Right edge
2
Tap the [Display comments]
You can display a title comment and each channel comment on the waveform screen. Each channel comment
appears along with each input-channel marker.
On 
Off
3
Tap the [Zero position]
You can display markers at the zero position of each input channel on the time-axis waveform display.
Off 
On
®
setting unless otherwise indicated in this document.
5
6
7
8
16
17
box, and then choose a start position of the scrolling
Starts scrolling through waveforms from the left side of the waveform screen.
Starts scrolling through waveforms from the right side of the waveform screen.
button to choose a comment display setting.
Displays comments.
Does not display any comments.
button to choose a zero-position marker display setting.
Does not display any markers.
Displays markers at the zero positions on the left side of the waveform screen.
HIOKI MR6000A966-03
9
10
11
12
14
15
309
