Wiring Diagram

CTP-E36/48/54/60CSX
BODY
24

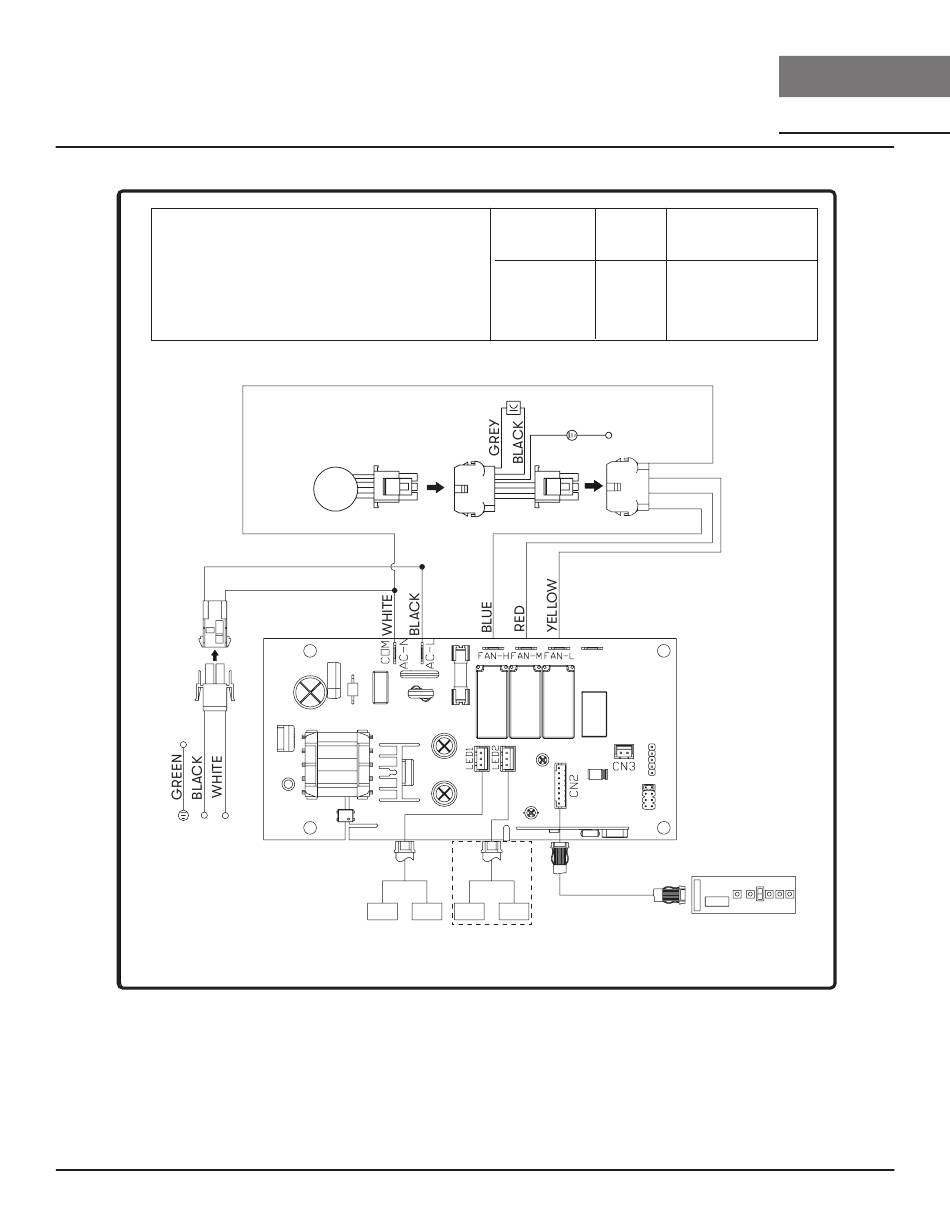

INTERNAL BLOWER CIRCUIT DIAGRAM
MOTOR
BLACK
WHITE
LED LED
for 48", 54", 60" only
REMARKS: CONDENSER 3 uF 250V AC120V 60Hz (CBI-290C)
CONDENSER 25uF 250V AC120V 60Hz (CBI-390A/CBI-600A)
VOLTS HZ
120 60
BODY
LED LED
Trapeze Use, Care, and Installation Guide
D E S I G N E R
T R A P E Z E
I S L A N D
MAX AMPS
CBI-290C 0.8
CBI-390A 2.1
CBI-600A 2.6
WHITE
YELLOW
RED
BLUE
Control PC
