Trapeze Use, Care, and Installation Guide

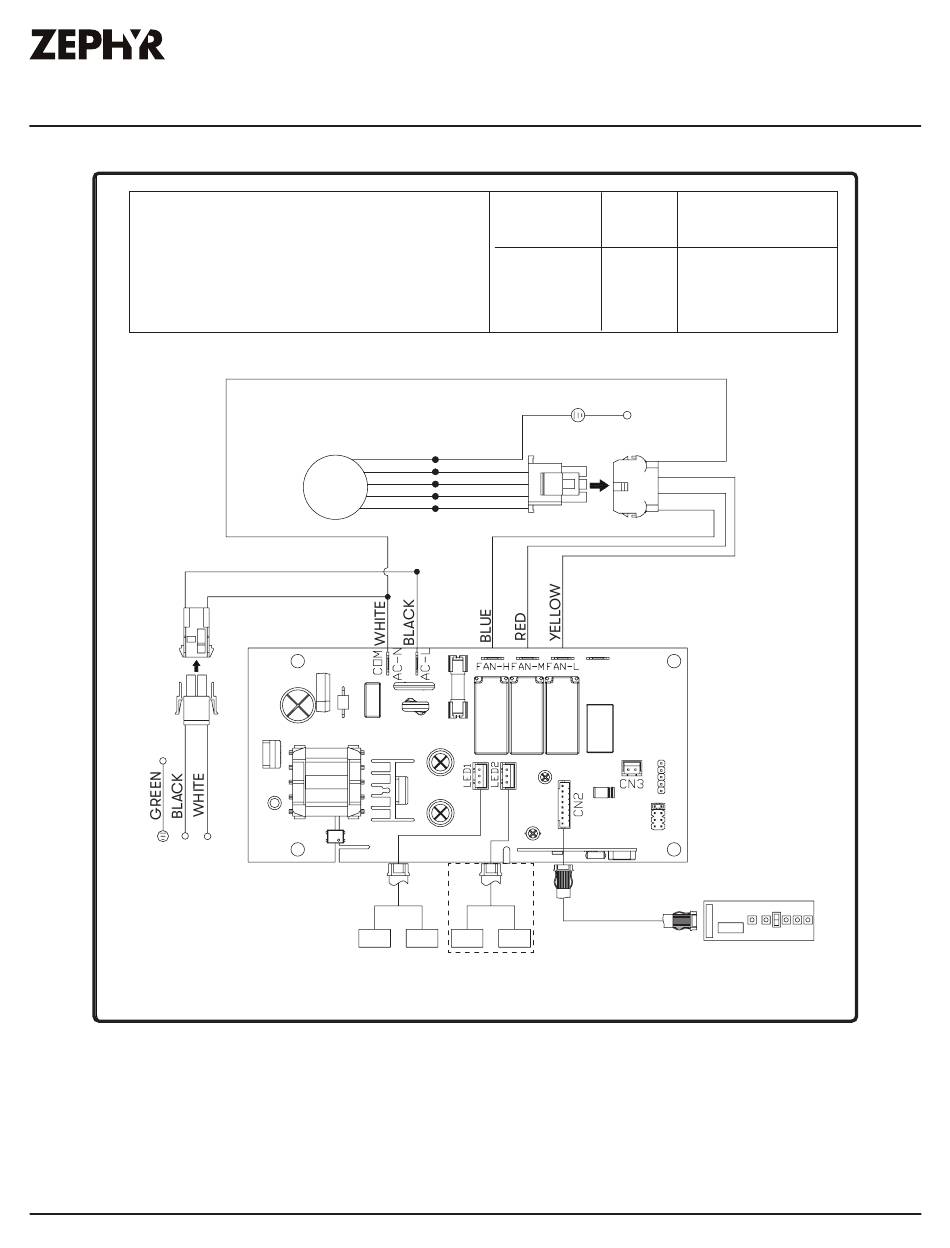

REMOTE BLOWER CIRCUIT DIAGRAM
MOTOR
BLACK
WHITE
LED LED
REMARKS: CONDENSER
CONDENSER*2 25uF 250V AC120V 60Hz (PBN-1000A)
VOLTS
120
GREEN
WHITE
BLACK
BLUE
RED
LED LED
for 48", 54", 60" only
15 uF 370V AC120V 60Hz (CBE-1000)
Wiring Diagram
MAX AMPS
HZ
CBE-1000 6.2
60
PBN-1000A 5.1
BODY
WHITE
YELLOW
RED
BLUE
Control PC
