ZSI-E30DS, ZSI-E36DS

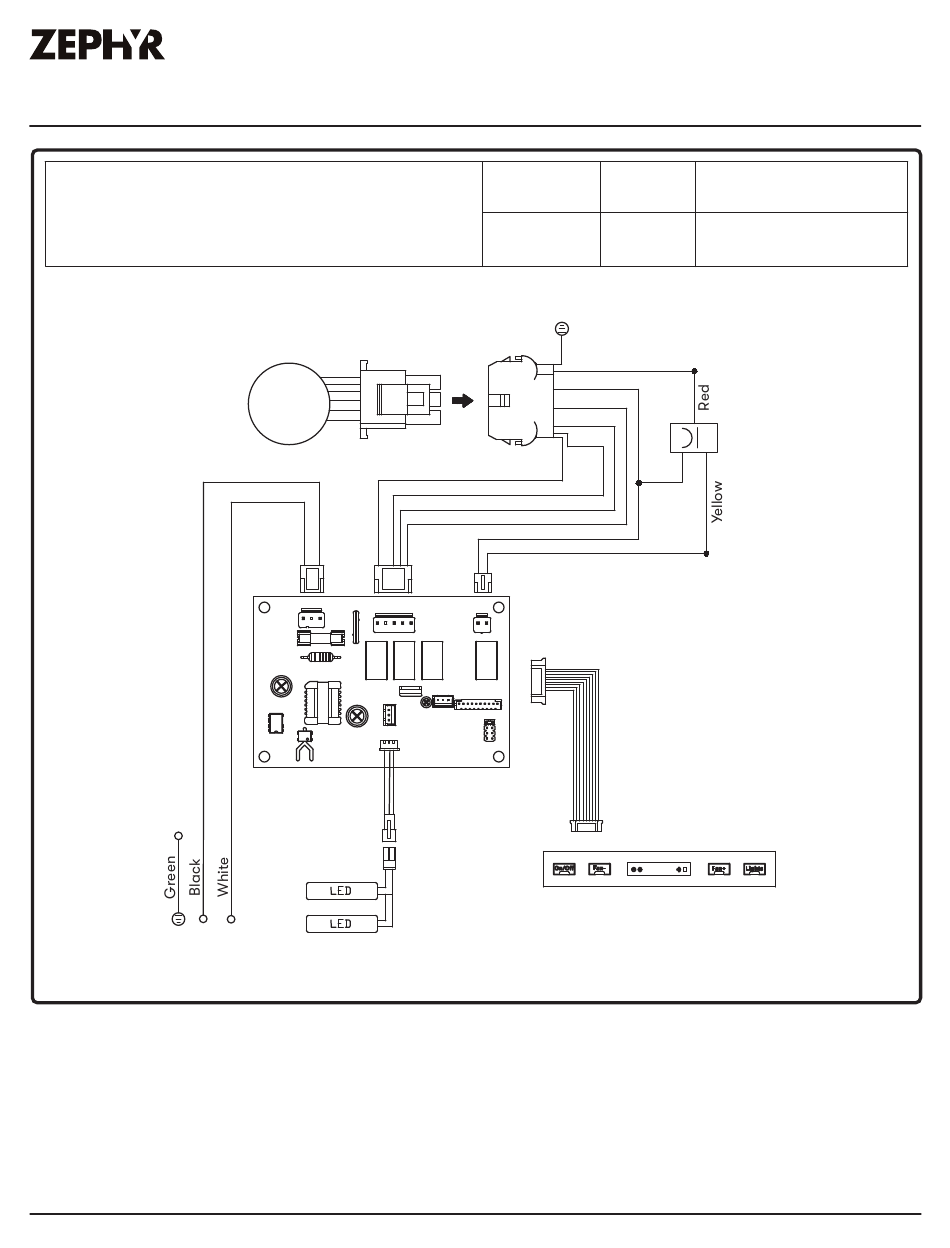

Wiring Diagram

Body
REMARKS: CONDENSER 11+11uF 250VAC FIT AC120V 60Hz
Power consumption shown for default CFM blower configuration
ACT 390 CFM - Fan Max. 295W @2.6A
ACT 290 CFM - Fan Max. 262W @2.2A
Siena Use, Care, and Installation Guide
Motor
Wiring Diagram
Volts Hz
120 60
Green
Body
Red
Yellow
Blue
Brown
Grey
White
Yellow
Yellow
Yellow
Control
Max Amps
5
