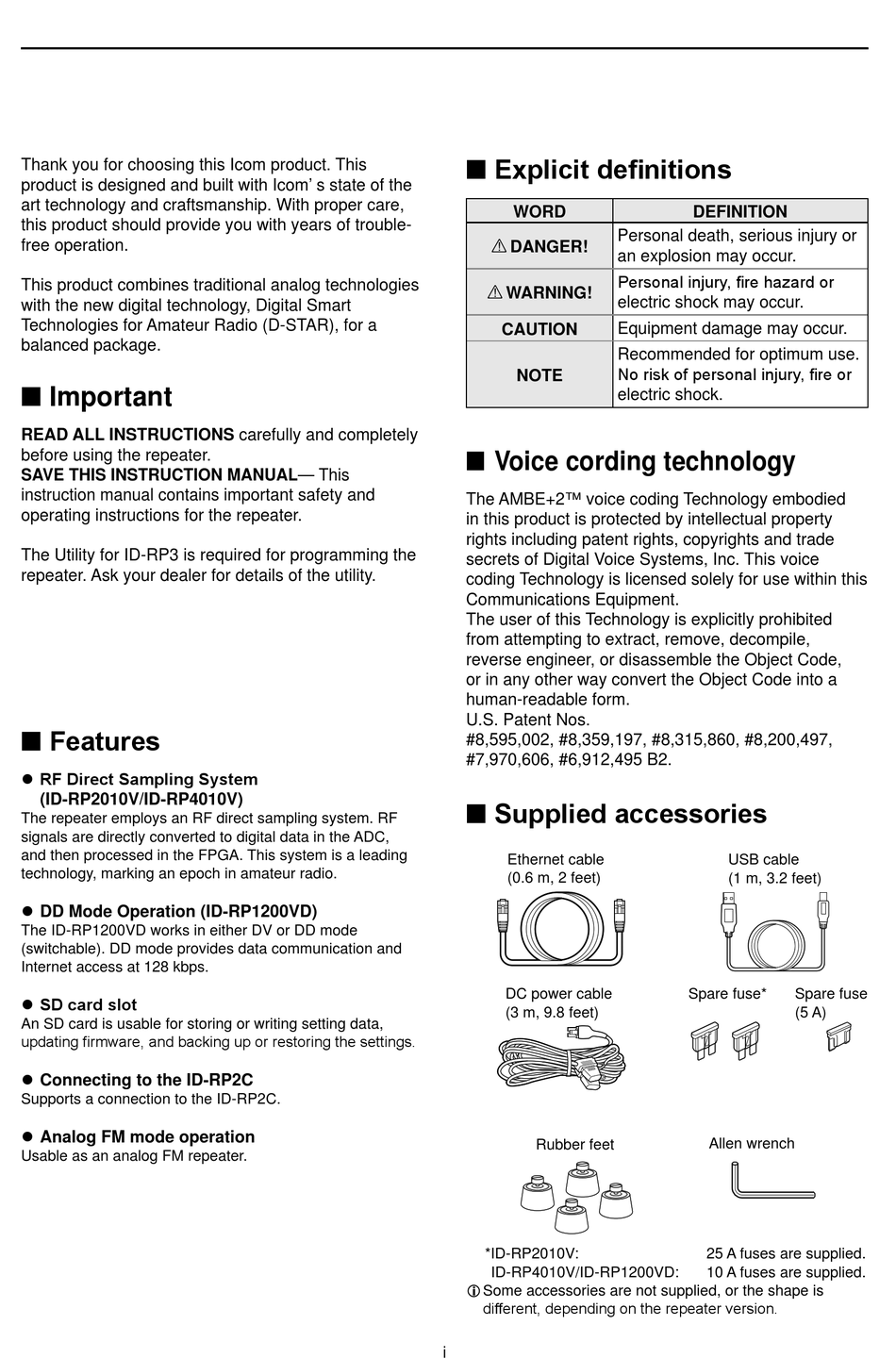

Thank you for choosing this Icom product. This
product is designed and built with Icom' s state of the
art technology and craftsmanship. With proper care,
this product should provide you with years of trouble-
free operation.
This product combines traditional analog technologies
with the new digital technology, Digital Smart
Technologies for Amateur Radio (D-STAR), for a
balanced package.
■ Important
READ ALL INSTRUCTIONS carefully and completely
before using the repeater.
SAVE THIS INSTRUCTION MANUAL— This
instruction manual contains important safety and
operating instructions for the repeater.
The Utility for ID-RP3 is required for programming the
repeater. Ask your dealer for details of the utility.
■ Features
z RF Direct Sampling System
(ID-RP2010V/ID-RP4010V)
The repeater employs an RF direct sampling system. RF
signals are directly converted to digital data in the ADC,
and then processed in the FPGA. This system is a leading
technology, marking an epoch in amateur radio.
z DD Mode Operation (ID-RP1200VD)
The ID-RP1200VD works in either DV or DD mode
(switchable). DD mode provides data communication and
Internet access at 128 kbps.
z SD card slot
An SD card is usable for storing or writing setting data,
updating firmware, and backing up or restoring the settings.
z Connecting to the ID-RP2C
Supports a connection to the ID-RP2C.
z Analog FM mode operation
Usable as an analog FM repeater.
■ Explicit definitions
WORD
R DANGER!
R WARNING!
CAUTION
NOTE
■ Voice cording technology
The AMBE+2™ voice coding Technology embodied
in this product is protected by intellectual property
rights including patent rights, copyrights and trade
secrets of Digital Voice Systems, Inc. This voice
coding Technology is licensed solely for use within this
Communications Equipment.
The user of this Technology is explicitly prohibited
from attempting to extract, remove, decompile,
reverse engineer, or disassemble the Object Code,
or in any other way convert the Object Code into a
human-readable form.
U.S. Patent Nos.
#8,595,002, #8,359,197, #8,315,860, #8,200,497,
#7,970,606, #6,912,495 B2.
■ Supplied accessories
Ethernet cable
(0.6 m, 2 feet)
DC power cable
(3 m, 9.8 feet)
Rubber feet
*ID-RP2010V:
ID-RP4010V/ID-RP1200VD:
L Some accessories are not supplied, or the shape is
different, depending on the repeater version.
i
DEFINITION
Personal death, serious injury or
an explosion may occur.
Personal injury, fire hazard or
electric shock may occur.
Equipment damage may occur.
Recommended for optimum use.
No risk of personal injury, fire or
electric shock.
USB cable
(1 m, 3.2 feet)
Spare fuse*
Allen wrench
25 A fuses are supplied.
10 A fuses are supplied.
Spare fuse
(5 A)
