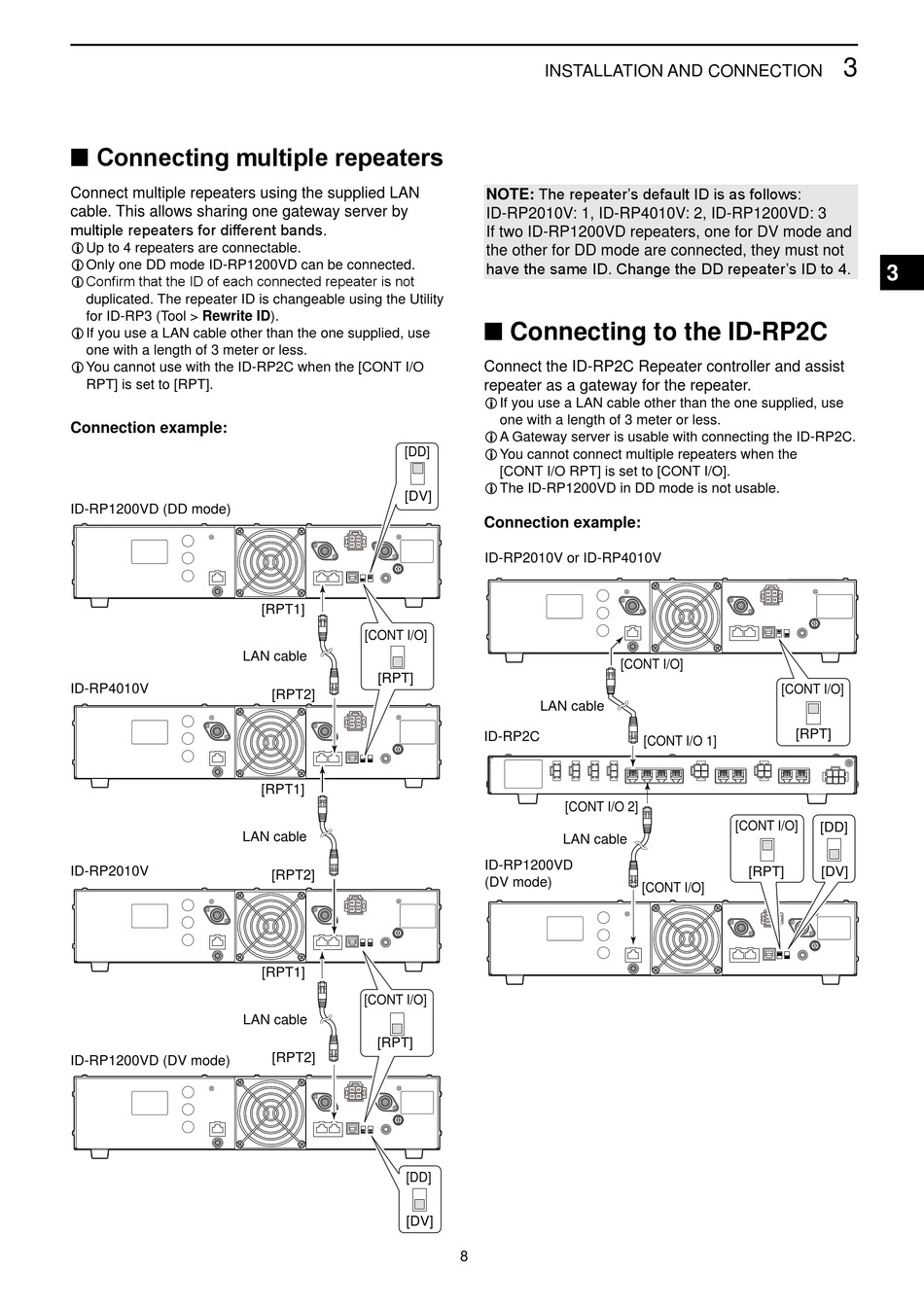

■ Connecting multiple repeaters

Connect multiple repeaters using the supplied LAN
cable. This allows sharing one gateway server by
multiple repeaters for different bands.
L Up to 4 repeaters are connectable.
L Only one DD mode ID-RP1200VD can be connected.
L Confirm that the ID of each connected repeater is not
duplicated. The repeater ID is changeable using the Utility
for ID-RP3 (Tool > Rewrite ID).
L If you use a LAN cable other than the one supplied, use
one with a length of 3 meter or less.
L You cannot use with the ID-RP2C when the [CONT I/O
RPT] is set to [RPT].
Connection example:
ID-RP1200VD (DD mode)
LAN cable
ID-RP4010V
LAN cable
ID-RP2010V
LAN cable
ID-RP1200VD (DV mode)
[DD]
[DV]
[RPT1]
[CONT I/O]
[RPT]
[RPT2]
[RPT1]
[RPT2]
[RPT1]
[CONT I/O]
[RPT]
[RPT2]
[DD]
[DV]
INSTALLATION AND CONNECTION
NOTE: The repeaterʼs default ID is as follows:
ID-RP2010V: 1, ID-RP4010V: 2, ID-RP1200VD: 3
If two ID-RP1200VD repeaters, one for DV mode and
the other for DD mode are connected, they must not
have the same ID. Change the DD repeaterʼs ID to 4.

■ Connecting to the ID-RP2C

Connect the ID-RP2C Repeater controller and assist
repeater as a gateway for the repeater.
L If you use a LAN cable other than the one supplied, use
one with a length of 3 meter or less.
L A Gateway server is usable with connecting the ID-RP2C.
L You cannot connect multiple repeaters when the
[CONT I/O RPT] is set to [CONT I/O].
L The ID-RP1200VD in DD mode is not usable.
Connection example:
ID-RP2010V or ID-RP4010V
[CONT I/O]
LAN cable
ID-RP2C
[CONT I/O 2]
LAN cable
ID-RP1200VD
(DV mode)
8
[CONT I/O]
[RPT]
[CONT I/O 1]
[CONT I/O]
[RPT]
[CONT I/O]
