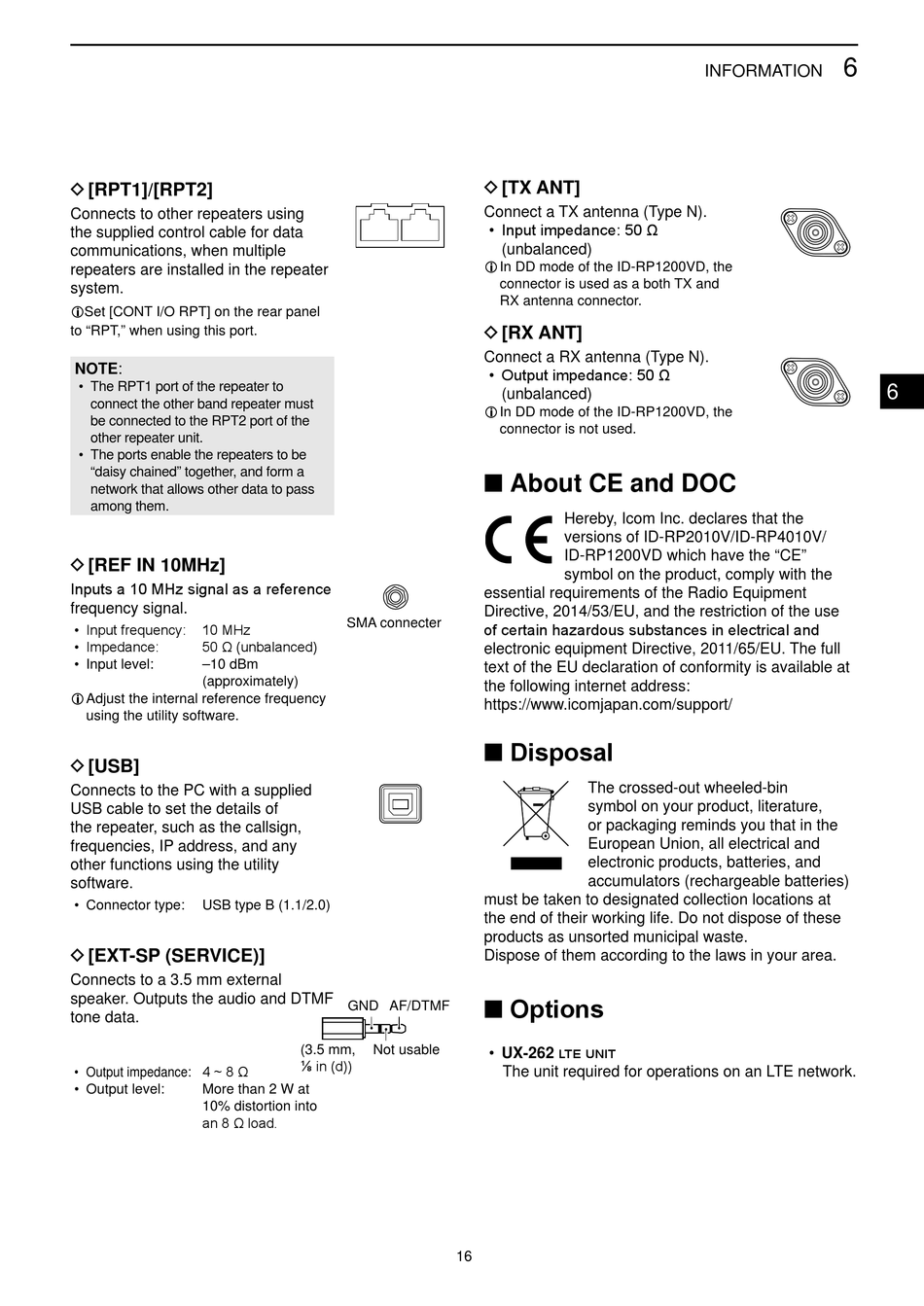

D [RPT1]/[RPT2]
Connects to other repeaters using
the supplied control cable for data
communications, when multiple
repeaters are installed in the repeater
system.
LSet [CONT I/O RPT] on the rear panel
to "RPT," when using this port.
NOTE:
• The RPT1 port of the repeater to
connect the other band repeater must
be connected to the RPT2 port of the
other repeater unit.
• The ports enable the repeaters to be
"daisy chained" together, and form a
network that allows other data to pass
among them.
D [REF IN 10MHz]
Inputs a 10 MHz signal as a reference
frequency signal.
• Input frequency:
10 MHz
• Impedance:
50 Ω (unbalanced)
• Input level:
–10 dBm
(approximately)
L Adjust the internal reference frequency
using the utility software.
D [USB]
Connects to the PC with a supplied
USB cable to set the details of
the repeater, such as the callsign,
frequencies, IP address, and any
other functions using the utility
software.
• Connector type:
USB type B (1.1/2.0)
D [EXT-SP (SERVICE)]
Connects to a 3.5 mm external
speaker. Outputs the audio and DTMF
tone data.
• Output impedance: 4 ~ 8 Ω
• Output level:
More than 2 W at
10% distortion into
an 8 Ω load.
SMA connecter
GND AF/DTMF
(3.5 mm,
Not usable
⅛ in (d))
16
D [TX ANT]
Connect a TX antenna (Type N).
• Input impedance: 50 Ω
(unbalanced)
L In DD mode of the ID-RP1200VD, the
connector is used as a both TX and
RX antenna connector.
D [RX ANT]
Connect a RX antenna (Type N).
• Output impedance: 50 Ω
(unbalanced)
L In DD mode of the ID-RP1200VD, the
connector is not used.
■ About CE and DOC
Hereby, Icom Inc. declares that the
versions of ID-RP2010V/ID-RP4010V/
ID-RP1200VD which have the "CE"
symbol on the product, comply with the
essential requirements of the Radio Equipment
Directive, 2014/53/EU, and the restriction of the use
of certain hazardous substances in electrical and
electronic equipment Directive, 2011/65/EU. The full
text of the EU declaration of conformity is available at
the following internet address:
https://www.icomjapan.com/support/
■ Disposal
The crossed-out wheeled-bin
symbol on your product, literature,
or packaging reminds you that in the
European Union, all electrical and
electronic products, batteries, and
accumulators (rechargeable batteries)
must be taken to designated collection locations at
the end of their working life. Do not dispose of these
products as unsorted municipal waste.
Dispose of them according to the laws in your area.
■ Options
• UX-262 lte unit
The unit required for operations on an LTE network.
