INSTALLATION

Quad View Switch is best located as close as possible to the computers that are attached to it. This reduces
the length of cables and provides a more cost effective installation. Quad View Switch may also be mounted in
a 19" rack with the optional rack mount kit.
Keyboard, monitor and mouse (console) are connected to the Quad View Switch with corresponding cables
(DVI, USB or PS/2). For longer distances there are diverse KVM extenders available (fiber, copper or IP).
Connecting power to the unit
- Plug the power cable into the power plug located on the back of the Quad View Switch, but do not turn the
power on yet.

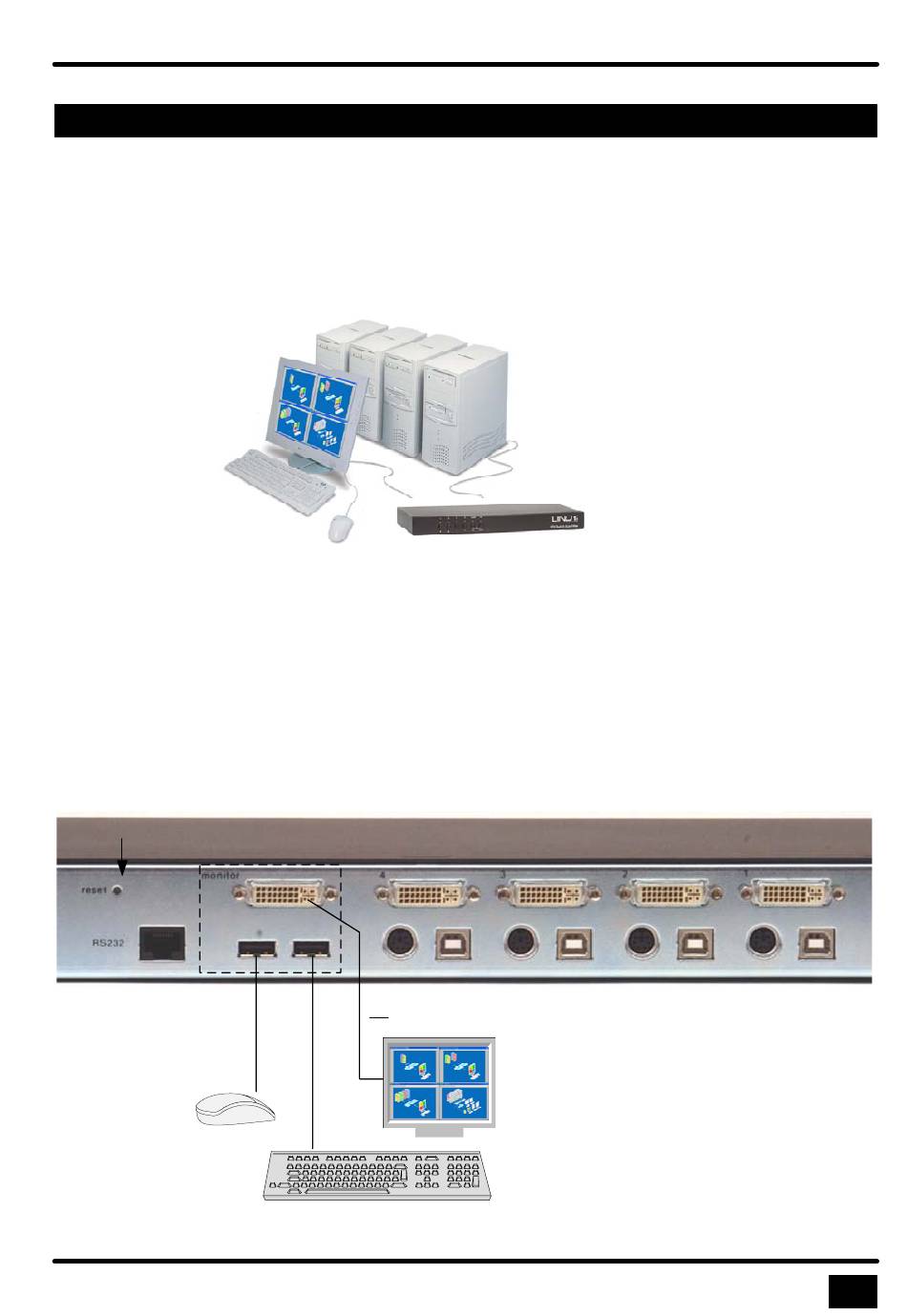

Connecting console (keyboard, video monitor and mouse)
- Connect your monitor directly into unit's DVI-I plug with VGA to DVI-I cable (analog) or DVI cable (digital).
- Connect your USB- keyboard and mouse to the corresponding connectors (USB-A).
For PS/2 keyboard and mouse or KVM extender use the attached PS2-USB adapter.
Reset
USB mouse
Quad View Switch - Installation and Operation Manual
KVM
(Konsole)
4
DVI-I DVI-I
USB-A
DVI or DVI-I to VGA cable
USB keyboard
3 2
DVI-I DVI-I
analog or digital
monitor
INSTALLATION
1
DVI-I
7
