Lindy CAT-16 IP User Manual

KVM Switch CAT-32 IP / CAT-16 IP
with KVM over IP Module
User Manual
KVM Switch CAT-32 IP: LINDY No. 39631
KVM over IP Module:
KVM Switch CAT-16 IP: LINDY No. 39639
www.lindy.com
For Commercial Use Only
Tested to comply
with FCC Standards
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - SECOND EDITION (AUG 2010)
English
LINDY No. 39636

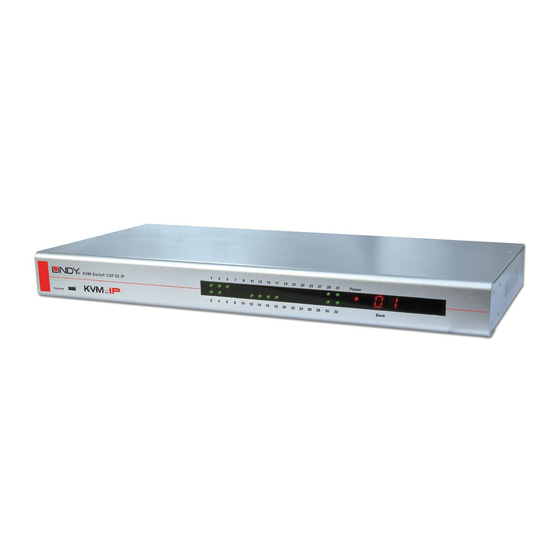

The modular LINDY KVM Switch CAT-32 IP
The KVM Switch CAT-32 IP provides 32 Cat.5/6 KVM server ports
supporting both USB or PS/2 keyboard and mouse connections via
dedicated USB or PS/2 Cat.5 Computer Modules.
The KVM Switch CAT-16 IP provides only 16 Cat.5/6 KVM server ports
since it is designed to fit into the back of the 19" LCD Terminal Premium
Secure. It is installed in the same height in the back of the 19" LCD
terminal.
This KVM switch incorporates a modular concept design which allows
for dual console access. The local console port allows direct access
whilst a second console option permits remote access via a remote
KVM over IP module installed in a slot located in the back of the KVM
Switch. This option allows system administrators to access and
administer their servers and KVM switches from a remote office
computer via a web browser. The required optional IP access module
can be simply installed into the back of the KVM Switch at any time.
About this manual
This manual is divided into five sections.
The first section is an introduction to the KVM Switch
•
The second section deals with installing and connecting the switch
•
The third section describes the basic operation of the KVM switch via
•
its OSD (On Screen Menu)
Section 4 – left empty for future use
•
The fifth section describes operation and access via remote IP
•
Technological progress
The KVM Switch and especially the KVM over IP Module and its
software are subject to technological progress. The products are
continuously upgraded accordingly. Therefore minor changes compared
to the descriptions in this manual may be found.
