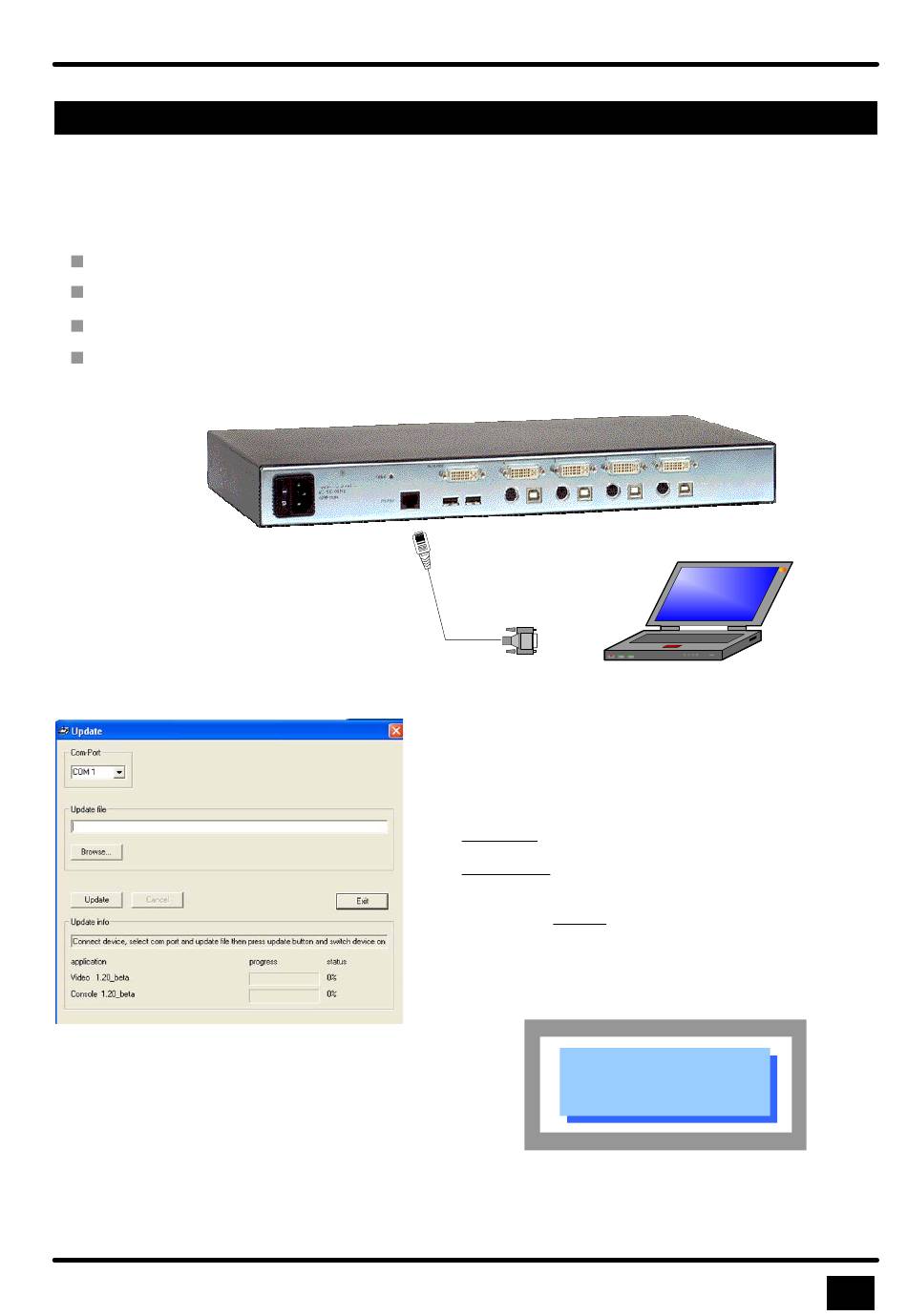

Firmware Update

Quad View Switch is equipped with a serial (RS232) port enabling you to upgrade flash firmware.
In order to upgrade Quad View Switch's firmware the following items are required:
a computer with serial port
the update program (updateEn.exe), which you will find on the enclosed CD.
a special serial cable (RJ45 - DB9)
the current firmware file, for example QuadView_1_20_c.upd
Quad View Switch - Installation and Operation Manual
Serial Cable
COM - Port
Computer with update
program + firmware files
Attach the serial cable from RS232 port on Quad View
Switch to a COM port on a computer.
Start the update program (updateEn.exe).
Com-Port: Configure the desired computer COM port
Update file: Enter location (drive and path) of firmware
file. Browse function (Browse Icon) can be used.
Click on the Update button in order to start the upgrade.
During the upgrade process five LEDs on front panel will
flash. Additionally you get upgrade information on OSD
window.
LINDY
Software upgrade running.
After a successful update, Quad View Switch restarts
for operation.

Serial Port

Quad View Switch - Rear panel
Quad View Switch
Please wait.
