HARDWARE
REAR PANEL

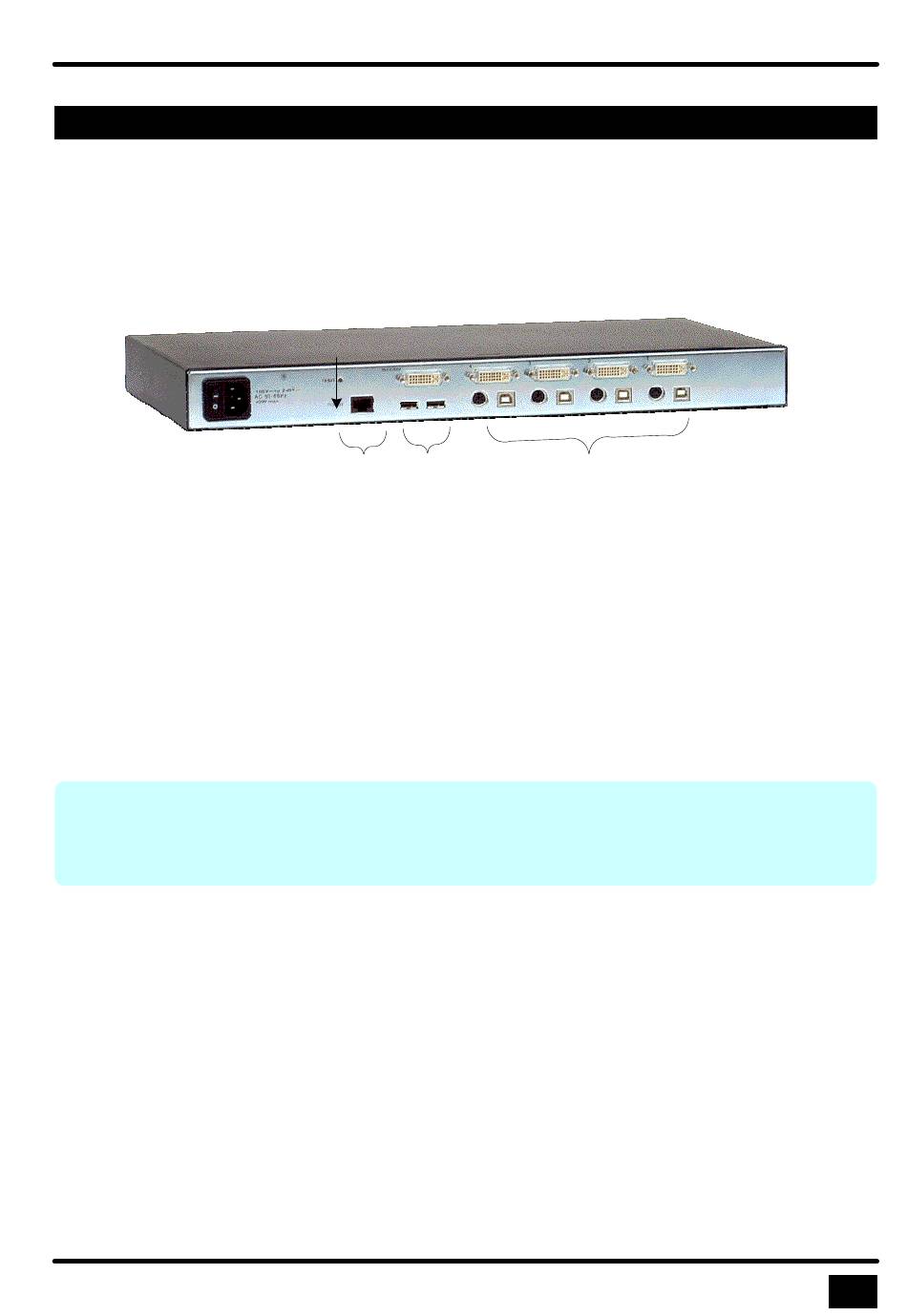

All cables are connected at the rear panel as shown below. There are connectors for power, serial, console
and computers.
Power
POWER
RESET
By pressing this button the V-Swich quad will be reset completely (video, keyboard and mouse).
Note:
By switching power off and on the device resets only the video circuit due to the „keep alive"
function of keyboard and mouse. If there is a problem with mouse or keyboard it is
recommended to execute a RESET (Reset button at rear side or buttons 3 and 4 on front side).
RS 232
Serial RS 232 - port is used to load flash firmware updates to the unit.
Quad View Switch - Installation and Operation Manual
Reset
Console
RS232
DVI-I
RJ45
2 x USB
Plug for power cord
Button
RJ - 45- Plug connector
For each computer
DVI-I
USB or PS/2
(for keyboard & mouse)
INTRODUCTION
Rear Panel
Quad View Switch
5
