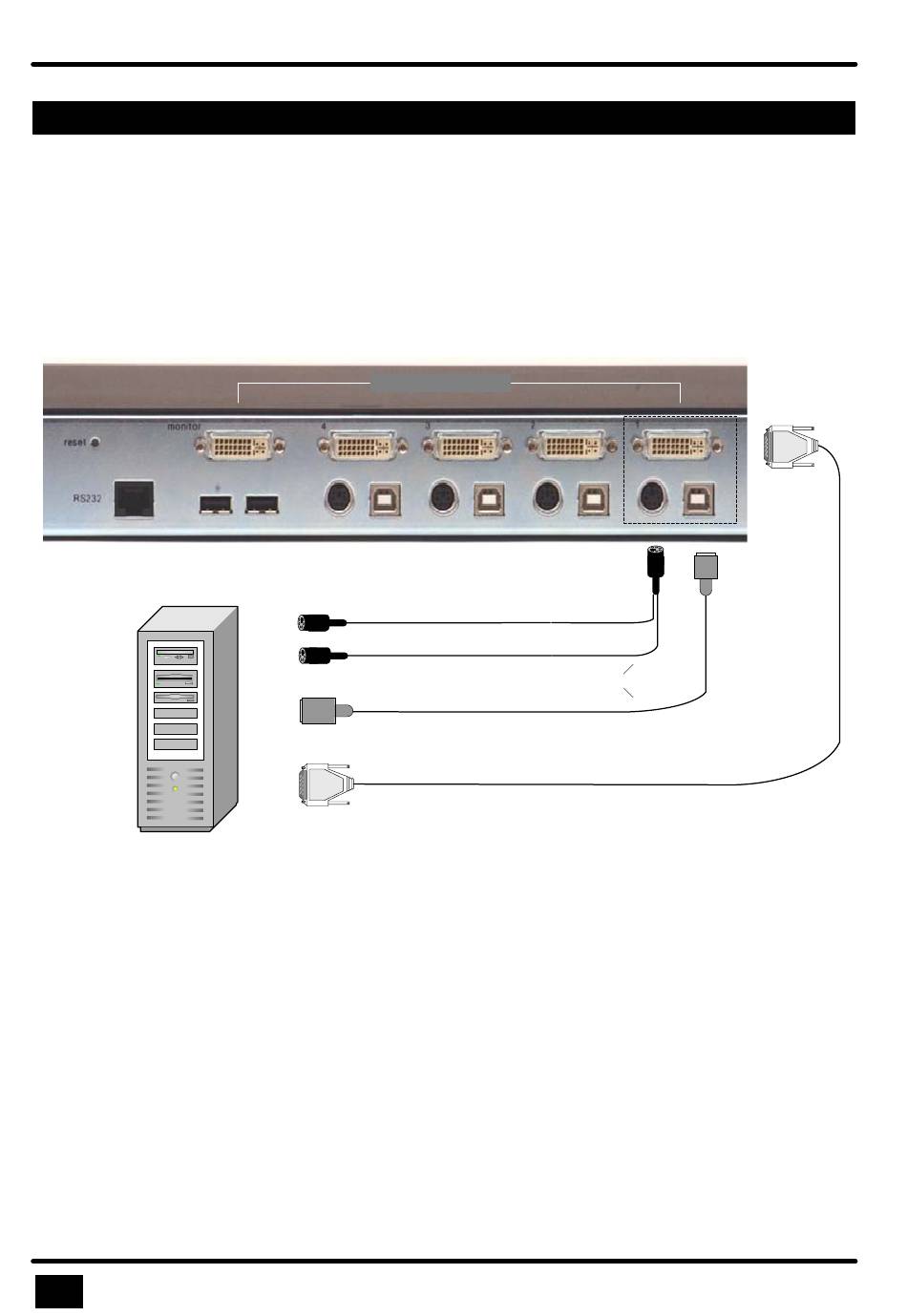

Connecting the computers
- Disconnect the keyboard, monitor and mouse from a computer after it has been switched off.
- Connect keyboard and mouse either with a single USB cable to USB-B connector or connect them with
two PS/2 cables and a Y cable to the common PS/2 connector (see below).
- Connect an analog computer video source (VGA) with a VGA to DVI-I cable. Digital video sources are
connected via DVI cable.

Powering up the system

- Power up Quad View Switch. At first all six LEDs will flash for a short time, then the green QUAD LED
indicates that the unit is ready for operation in Quad Mode (factory default).
- Power up all connected computers. Quad View Switch recognizes all input video sources and displays them
all on your monitor screen.
- To change the display mode use the relevant keyboard commands (see pages 9-12) or push buttons (see
page 3,4 and 13).
Configuration
Enter OSD main menu (see page 13) by either keyboard command Hotkey O (factory hotkey = STRG + ALT)
or simultaneous pressing of Quad and PiP buttons on front of Quad View Switch for longer than one second.
The main menu window pops up over the computer's video. Easy to use menus guide you through the
configuration process. In chapter „OSD" all parameter settings are described.
