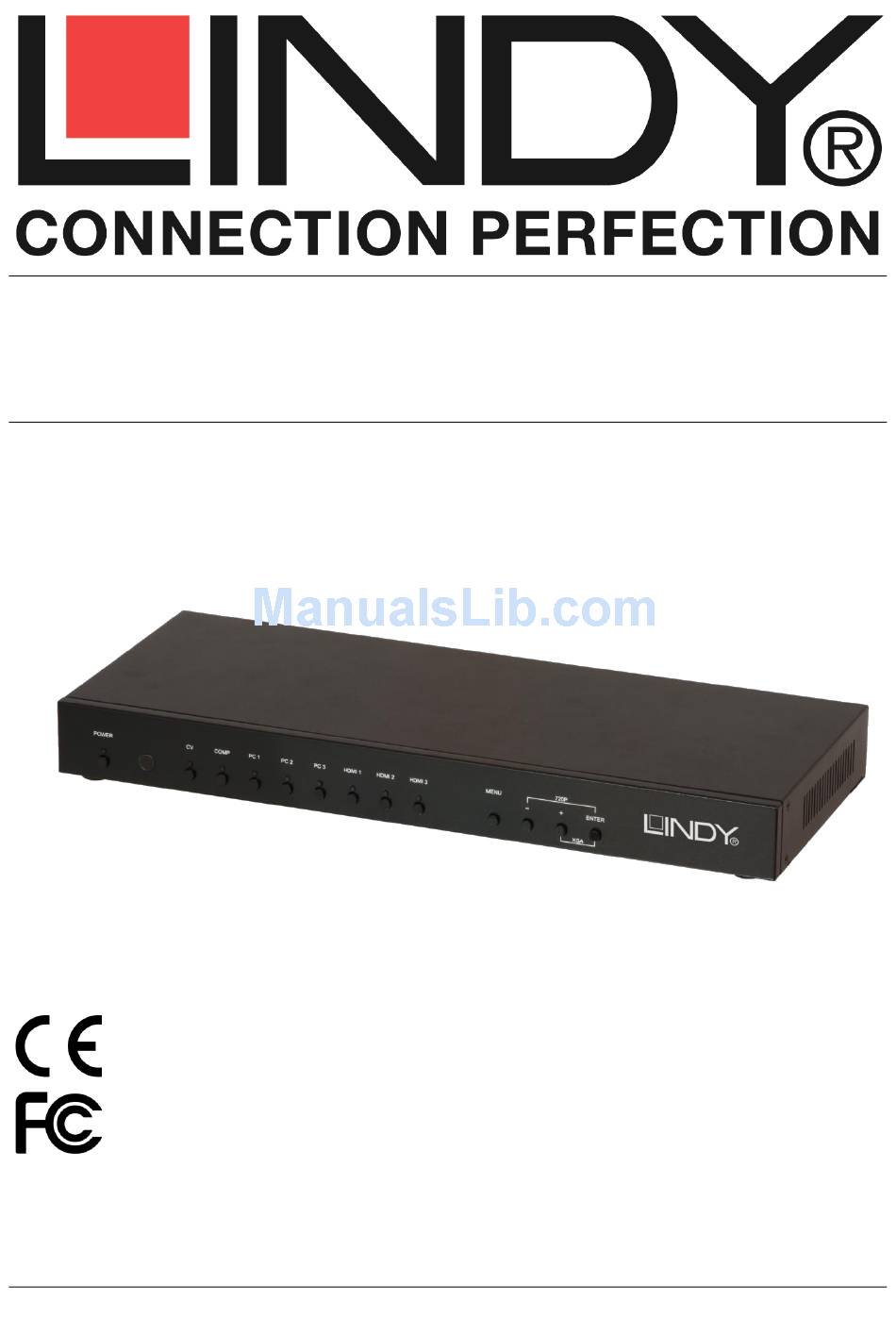

- Page 1 AV Converter Switch User Manual Eng li sh No. 38273 www.lindy.com © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (FEB 2016)
-
Page 2: X480

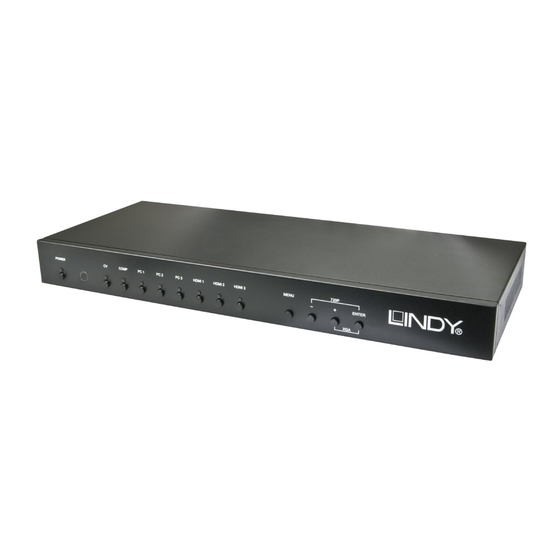

User Manual Introduction Thank you for purchasing the LINDY AV Conversion Switch. Featuring 8 AV inputs which can be converted and scaled to resolutions up to Full HD 1080p to be output via 3 outputs, this Switch is an ideal addition to any meeting or conference room, lecture hall or auditorium. The Switch features configuration and control via RS-232, Telnet, Web GUI and IR making it simple to integrate within automated installations. - Page 3 User Manual Installation To begin using the Switch simply connect your AV source devices to the corresponding input ports of the Switch using standard male/male cable, and then connect the outputs of the Switch to your display equipment again using standard male/male cables as required. The VGA output of the Switch can also be used with Component video display using the supplied VGA/RGB adapter cable.
- Page 4 User Manual Rear 1. IR In: Connect the supplied IR extender cable to receive the IR signal from the supplied IR remote. Ensure that the IR remote is within the direct line-of-sight of the IR extender. 2. RS-232: Connect to a PC/Laptop or RS-232 control system to use RS-232 commands to control the device.
-
Page 5: X768
User Manual RS-232, Telnet & On Screen Display RS-232 Settings Presentation Switch Remote Control Assignment Assignment Baud Rate 19200bps Data Bit None Parity Flow Control None Stop Bit Telnet Settings Before attempting to use telnet control, please ensure that both the Switch (via the CONTROL port) and the PC/Laptop are connected to the same active network. - Page 6 User Manual Command Description 0=OVERSCAN 4=LETTER BOX 1=FULL S SIZE 0 – 6 5=UNDER 2 2=FOLLOW INPUT 6=UNDER 1 3=PAN SCAN R SIZE Reports the numeric value of SIZE setting as above S INPUT HDCP 0/1 0 = ON, 1 = OFF R INPUT HDCP Apple only.
-
Page 7: Table Of Contents
User Manual OSD Menu Layer Layer Layer Layer 640X480 60 800x600 60 1024x768 60 1280x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 OUTPUT 1680x1050 60 1600x1200 60 1920x1080 60 1920x1200 60 1280X720P 60 1920X1080I 60 1920X1080P 60 720X576P 50 1280X720P 50... - Page 8 User Manual Layer Layer Layer Layer G OFFSET 0 – 1023 (512) COLOR (Continued) B OFFSET 0 – 1023 (512) 0 – 60 0 – 60 SATURATION 0 – 60 COLOR (Continued) SHARPNESS MIDDLE HIGH 0 – 100 (100) VOLUME 40mS DELAY 110mS...
-
Page 9: X800
User Manual Web GUI On a PC/Laptop that is connected to same active network as the Scaler, open a web browser and type device's IP address (Default is 192.168.0.1) on the web address entry bar. The browser will bring up the control page of the Switch (see below for reference). -
Page 10: X900
User Manual Output Resolutions Output Resolution PC/HD HDMI 480/576p 720p@50/60Hz 1080i@50/60Hz 1080p@50/60Hz VGA@60Hz SVGA@60Hz XGA@60Hz SXGA@60Hz UXGA@60Hz 1280x768@60Hz 1280x800@60Hz 1360x768@60Hz ... -
Page 11: Under
LINDY Herstellergarantie – Hinweis für Kunden in Deutschland LINDY gewährt für dieses Produkt über die gesetzliche Regelung in Deutschland hinaus eine zweijährige Herstellergarantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs. -
Page 12: Legal Information
Ogni stato membro dell’ EU ha tramutato le direttive WEEE in leggi statali in varie misure. Fare riferimento alle leggi del proprio Stato quando si dispone di un apparecchio elettrico o elettronico. Per ulteriori dettagli fare riferimento alla direttiva WEEE sul riciclaggio del proprio Stato. LINDY No. 38273 Edition, February 2016 www.lindy.com...
