ENGLISH
4.2

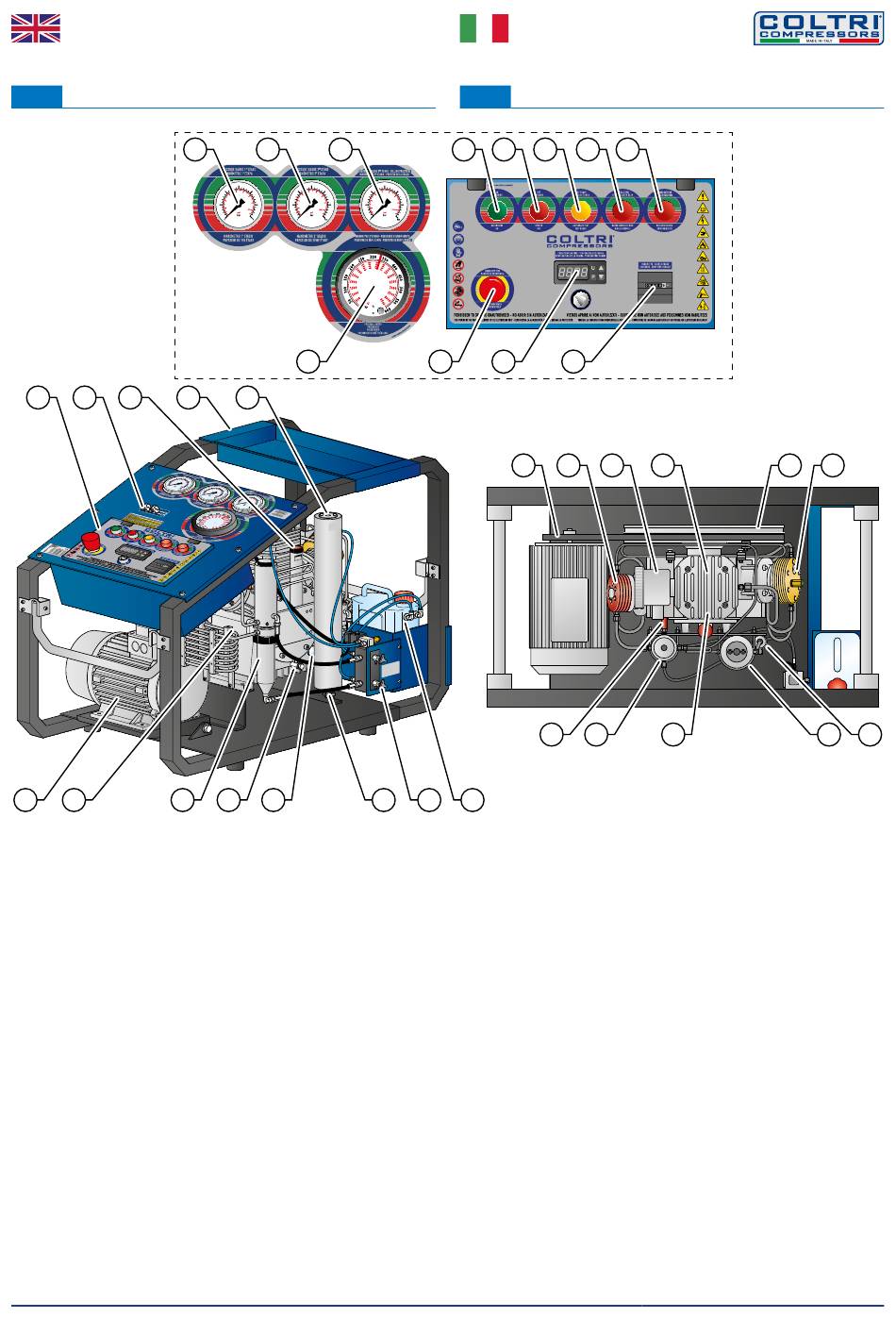

MACHINE PARTS
2
15
29
21
22
24
1 Frame
2 Control pannel
3 ON pushbutton
4 Stop pushbutton
5 Condensate discharge pushbutton
6 Oil level warning light
7 Direction of rotation indicator light
8 Hour counter
9 Cabinet interior / cooling air
temperature
10 Emergency pushbutton
11 Automatic shutdown pressure
switch
12 3rd stage pressure gauge
13 2nd stage pressure gauge
14 1st stage pressure gauge
15 Refill hoses connection
16 Condensate discharge valves
17 Oil level
18 Oil discharge valves
19 Purifier filter
20 Condensate collection can
24 - 60
14
13
12
11
1
19
UCCI DA
RVAL LI
FILTR O
CON CART
E AD INTE
MAN UALE
SOST ITUIR
- VEDI
E
REGO LARI
CART RIDG
FILTE R
WITH
AT REGU
LAR
REPL ACED
MAN UAL
TO BE
S - SEE
INTE RVAL
WARN ING
OIL LEVEL
BEFORE
SSOR
STARTIN
CHECK
G THE
COMPRE
OIL ST755
USE ONLY
COLTRI
SAT E
CON DEN
SEP ARA
TOR
OL IO
SC AR ICO
OIL DR
AIN
18
17
21 Motor
22 Compressor
23 Air filter
24 Final condensate separator
25 1
stage
st
26 2
stage
nd
27 3
stage
rd
28 Monobloc
29 Oil filler plug
30 Safety valve
31 Maintenance valve
32 Cooling fan
33 Belt
ERGO ELECTRIC
ITALIANO
4.2
NOMENCLATURA
3
4
5
10
9
33
EN SA TE
CO N D
VA LV E
D RA IN
30
16
16
20
1 Telaio
2 Pannello di comando
3 Pulsante di accensione
4 Pulsante di arresto
5 Pulsante scarico condensa
6 Spia livello olio
7 Spia errato senso di rotazione
8 Contaore di funzionamento
9 Temperatura interno cabina/aria
raffreddata
10 Pulsante di emergenza
11 Pressostato per lo spegnimento
automatico
12 Manometro pressione 3° stadio
13 Manometro pressione 2° stadio
14 Manometro pressione 1° stadio
15 Attacco fruste di ricarica
16 Rubinetti scarico condensa
17 Indicatore livello olio
18 Rubinetto scarico olio
19 Filtro depuratore
20 Tanica raccogli condensa
6
7
8
27
23
25
24
28
21 Motore
22 Compressore
23 Filtro aria
24 Separatore di condensa finale
25 1° stadio
26 2° Stadio
27 3° stadio
28 Monoblocco
29 Tappo carico olio
30 Valvola di sicurezza
31 Valvola di mantenimento
32 Ventola di raffreddamento
33 Cinghia
32
26
19
31
MU-ERGO-0820
