ENGLISH
1.10.1

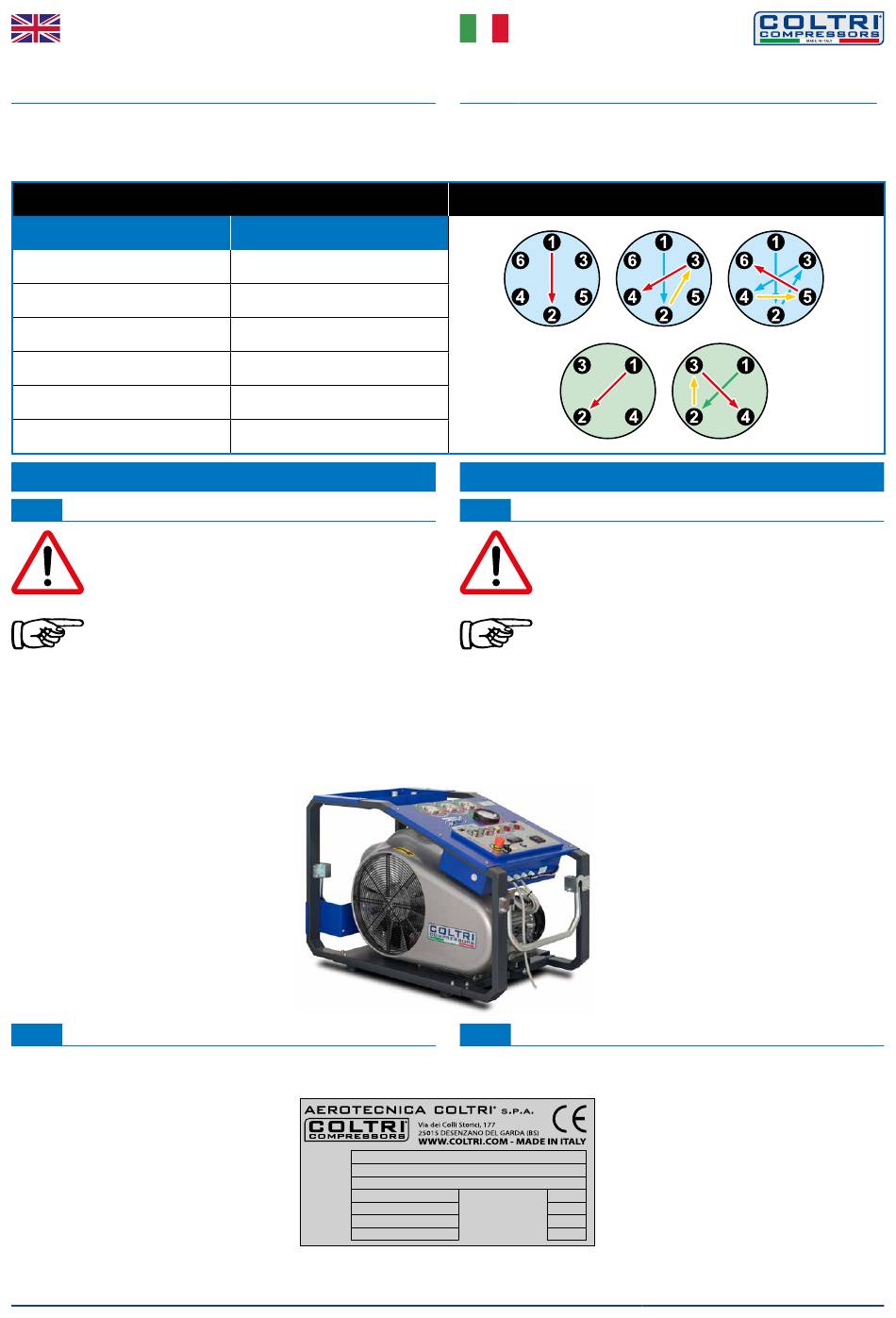

Tightening torque values
The table shows tightening torques for hexagonal-head or cylindrical-head
recessed hexagonal bolts and screws, except for specific cases illustrated in
the manual. Pipe connections (swivel nuts) should be finger tight plus an
additional 1/2 turn.
Tightening torque values
Thread
Filettatura
-
M6 - 1/4"
M8 - 5/16"
M10 - 3/8"
M12 - 1/2"
M14 - 9/16"
M16 - 5/8"
2 - BASIC INFORMATION ON THE COMPRESSOR
2.1
DESCRIPTION OF THE COMPRESSOR
DANGER: The compressor may be used together with Nitrox
mixers up to a maximum of 40% oxygen and only with
certified systems that feature an alarm system and that
prevent the introduction of oxygen percentages above the
permitted maximum and/or incorrect mixes.
IMPORTANT: AEROTECNICA COLTRI compressors provide
breathable air at high pressure in compliance with EN12021
air quality requisites.
High pressure compressor for breathing air and technical gases.
Compatible process gases:
- Nitrogen
- Helium
- Nitrox 40% max O
2
2.2
IDENTIFICATION THE COMPRESSOR
Each compressor has an identification label attached to its frame.
12 - 60
-
Valori di coppia
Max. torque
Coppia max.
-
10Nm (7ft-lbs)
25Nm (18ft-lbs)
45Nm (32ft-lbs)
75Nm (53ft-lbs)
120Nm (85ft-lbs)
200Nm (141ft-lbs)
Model
Type
Code
S/N
0000
Year
2020
Engine
THREE-PHASE
Power
5,5KW - 230V - 60Hz
ERGO ELECTRIC
ITALIANO
10.10.1 Valori coppia di serraggio
La tabella riporta i valori della coppia di serraggio per bulloni o viti a testa
esagonale o a testa cilindrica esagono incassato, salvo casi specifici indicati
nel manuale. Per collegamenti di tubi con dadi girevoli stringere il raccordo
a mano e poi ulteriormente di 1/2 giro.
6 and 4 bolt torque sequence
2 - CARATTERIZZAZIONE DEL COMPRESSORE
2.1
DESCRIZIONE DEL COMPRESSORE
PERICOLO: L'uso del compressore abbinato a miscelatori
Nitrox è consentito sino al 40% max. di ossigeno e con
sistemi certificati e dotati di sistema d'allarme e prevenzione
insufflaggio di percentuali di ossigeno superiori al consentito
e/o non miscelate correttamente.
AVVERTENZA: I compressori AEROTECNICA COLTRI forniscono
aria respirabile ad alta pressione conforme ai requisiti per la
qualità dell'aria specificati dalla normativa EN12021.
Compressore ad alta pressione per aria respirabile e gas tecnici.
Gas di processo compatibili:
- Azoto
- Elio
- Nitrox 40% max O
2
2.2
IDENTIFICAZIONE DEL COMPRESSORE
Ogni singolo compressore è caratterizzato da una targhetta di
identificazione che si trova sul telaio del compressore.
MCH-16
ERGO
SC000000
Product N°
0000
Lwa guaranteed
00 dB
Lwa measured
00 dB
Lpa measured
00 dB
-
Sequenza di serraggio per 6 e 4 bulloni
MU-ERGO-0820
