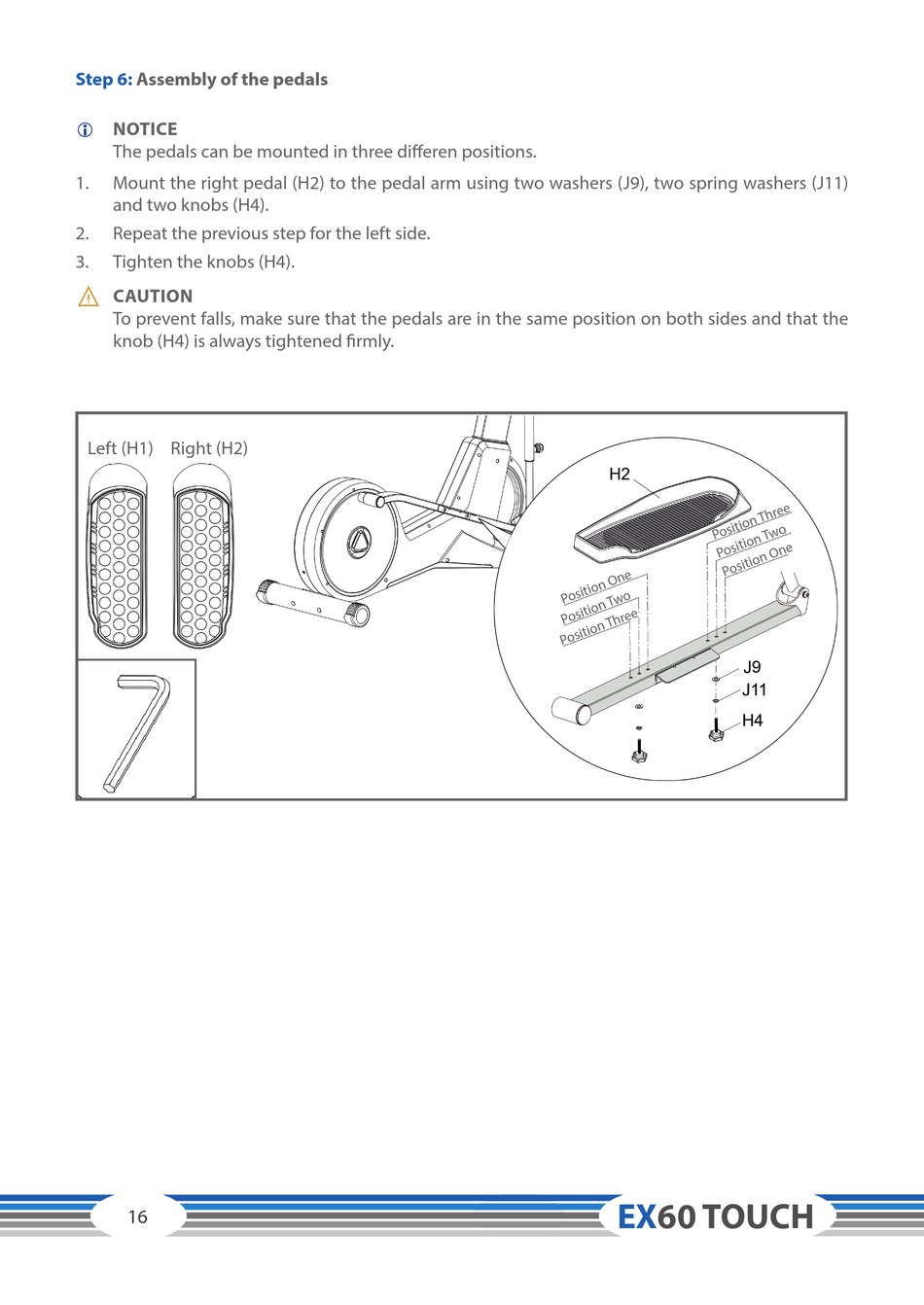

Step 6:
Assembly of the pedals
NOTICE
L
The pedals can be mounted in three differen positions.
1.
Mount the right pedal (H2) to the pedal arm using two washers (J9), two spring washers (J11)
and two knobs (H4).
2.
Repeat the previous step for the left side.
3.
Tighten the knobs (H4).
⚠
CAUTION
To prevent falls, make sure that the pedals are in the same position on both sides and that the
knob (H4) is always tightened firmly.
Left (H1) Right (H2)
16
EX60 TOUCH
