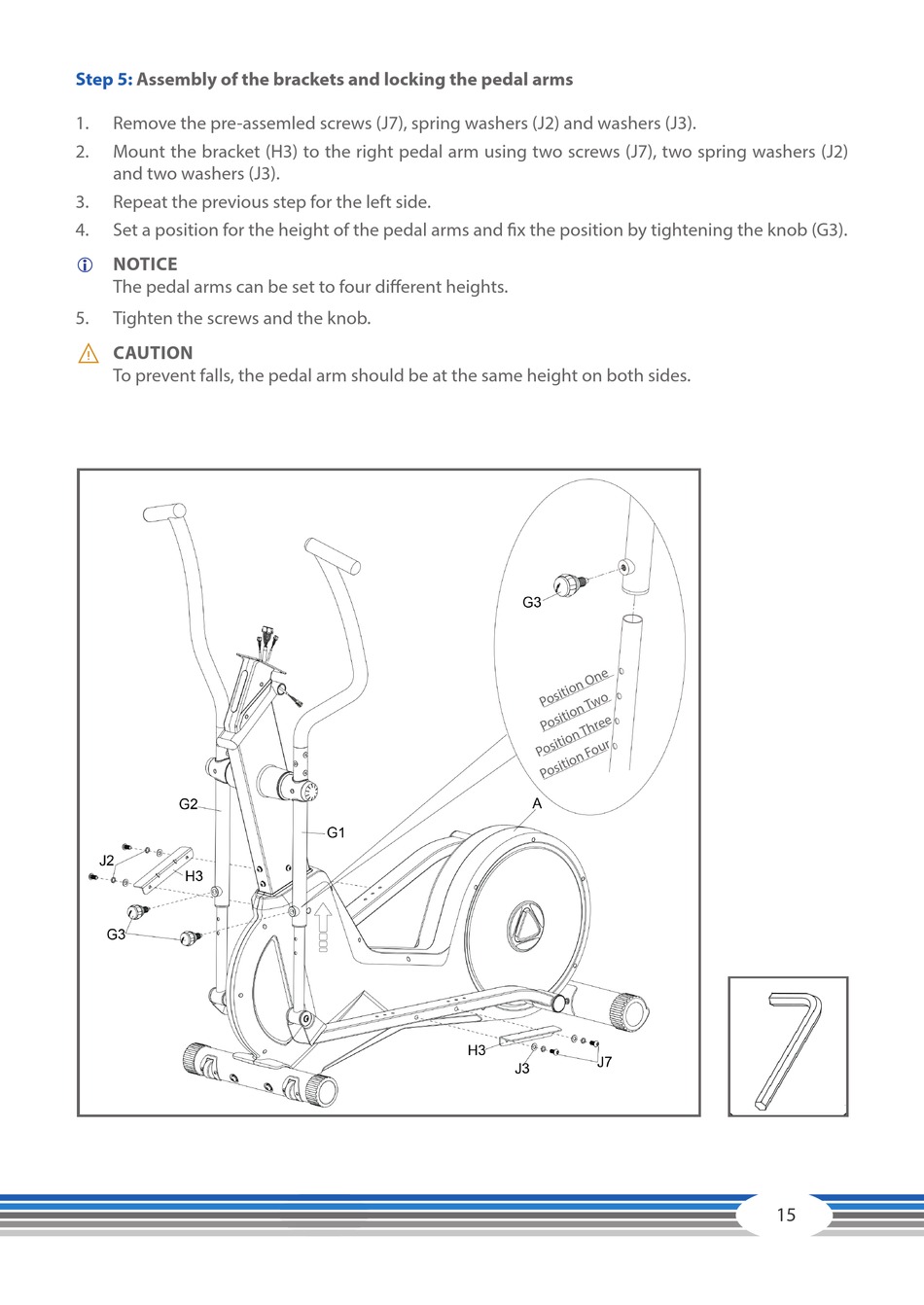

Step 5: Assembly of the brackets and locking the pedal arms
1. Remove the pre-assemled screws (J7), spring washers (J2) and washers (J3).
2. Mount the bracket (H3) to the right pedal arm using two screws (J7), two spring washers (J2)
and two washers (J3).
3. Repeat the previous step for the left side.
4. Set a position for the height of the pedal arms and fix the position by tightening the knob (G3).
NOTICE
L
The pedal arms can be set to four different heights.
5. Tighten the screws and the knob.
CAUTION
⚠
To prevent falls, the pedal arm should be at the same height on both sides.
